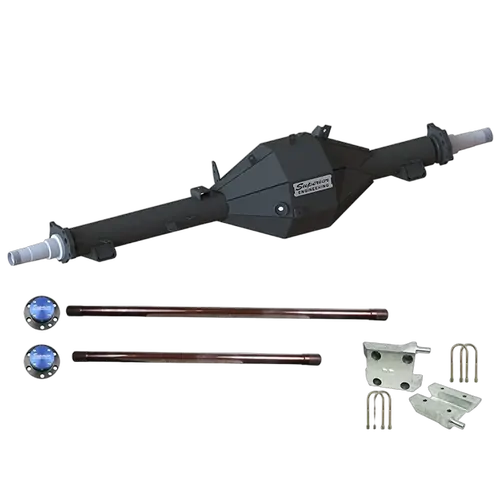

Superior Engineering"s Track Corrected Chromoly Diamond Diff Housing is one of the most affordable options on the market for a 70 Series Landcruiser, courtesy of our long list of features and standard inclusions, which our competitors charge extra for.

_x000D_
• Designed to correct the narrow rear wheel track in VDJ70 Series Landcruiser"s
_x000D_
• Compatible with OE Electronic Locked or OE Non-Locked Vehicles
_x000D_
• Includes Locker Actuator Gear Cradle
_x000D_
• Direct replacement for your OE Housing
_x000D_
• 830mpa Centre Section, 90mm OD x 13.5mm Thick Axle Tube & 4140 Chromoly Spindles
_x000D_
• Better Ground Clearance than our competitors
_x000D_
• Maintains your OEM Brakes, Wheel Bearings & Diff Centre
_x000D_
• Brand New OEM Diff Studs & Axle Seals included standard
_x000D_
• RCV 300m Full Floating Axles with 4340M Drive Plates included standard (Lifetime Warranty against breakage)
_x000D_
• BIS80 High Clearance U-Bolt Plate Kit included standard
_x000D_
• Suitable for all 4x4 LC70 GVM Upgrades on the market with an Axle Load Rating of 3,150kg
_x000D_
• Lifetime warranty against bending or breaking (Diff Housing)
_x000D_
• CNC machined to ensure the housing is 100% true
_x000D_
• Black Powder Coat as standard, with multiple custom colour options available
_x000D_
• Compatible with the Superior Engineering 70 Series Leaf Diamond Diff Sway Bar Kit
_x000D_
• Australia Wide Dealer Network offers full brand support wherever your travels take you
_x000D_
• Australian Made
_x000D_

Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housings are manufactured 100mm wider than your OE Diff Housing to bring the rear wheel track out parallel with the front diff in your 2007 to Current VDJ70 Series Landcruiser; including 76 Series Wagons, 78 Series Troop Carriers and 79 Series Single & Dual Cabs.

Australian Made by Australians, for Australians, Superior Engineering"s Leaf Sprung Track Corrected Diamond Diff Housing is the ultimate in functionality & strength – with a Load Rating of 3,150kg and covered by a Lifetime Warranty against bending or cracking.

But, the benefits of this housing do not stop there!_x000D_ _x000D_

Building the strongest track-corrected diff housing on the market begins at the centre, with our unique 6mm thick/830mpa Chromoly wide-diamond centre section, which includes an additional 4mm welded armour plate that wraps from the back to the bottom of the housing.
_x000D_ Superiors Diff Centre Section is designed to accommodate your OEM diff centre, in both Locked or Un-locked variants, and boasts additional internal gussets to help hold the 90mm OD/13.5mm Thick Axle Tubes in place. The use of our 90mm Axle Tubes enhances the housing"s resistance to bending from loads or impacts.

Our large diameter/heavy wall axle tube, integrated into our wide diamond centre with additional internal gussets negates the need for any further external bracing..
_x000D_ This perfect combination is the basis for an incredibly strong diff housing that requires no additional external bracing for its strength, giving you a diff housing that is not only strong but with more ground clearance than our competitors.

Continuing the strength theme, Superior Engineering utilises 4140 Chromoly spindles at each end of the axle tubes, which have been designed with serviceability in mind and are 100% compatible with your OEM/Factory Supplied brakes & wheel bearings.
_x000D_ Brand New Toyota Genuine Diff Studs & Toyota Genuine Axle Seals are also compatible and supplied with the housing at no additional charge.

Understanding the importance of manufacturing a precision product for the demands of the Australian Climate, we CNC machine the required surfaces of the final product to ensure this housing is not only 100% Straight but that the axles also run true to the diff centre, ensuring years of trouble-free adventure in your Landcruiser.

Included with your housing is a pair of our 300m Axles manufactured exclusively for Superior Engineering by RCV in the United States, which are paired with our Billet 4340M Drive Plates.
_x000D_ RCV is known for producing the world's toughest axles, with their products found in Ultra4 race cars and off-road vehicles worldwide, giving us the confidence we need to offer a lifetime warranty against breakage on the axles as well.

Superior Engineering"s Bis 80 High Clearance U-Bolt plates are also supplied as standard with this housing, granting even more ground clearance & strength than competitors, free of charge.

To top it all off, Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housings come coated in a hard-wearing Sating Black powder coat with optional custom colours available at your request.

We are so confident in the overall design, manufacturing process and test results mentioned above means Superior Engineering can confidently offer our customers a lifetime warranty against bending or breaking on the axle housing itself.
_x000D_ This Warranty is supported by our Australia Wide Dealer Network offering full brand support wherever your travels take you.

Need more information? Contact your local Superior Engineering Stockist, or give our sales team a call at (07) 5433 1411

"Will this housing suit my VDJ70 Series Landcruiser?"
_x000D_ Yes - Superior Engineering Track Corrected Chromoly Diamond Diff Housings are available for all VDJ70 Series Models including the 76 Series Wagons, 78 Series Troop Carriers and 79 Series Single & Dual Cabs from 2007 – Current, including all NON-VSC and VSC models.

"What is the benefit of fitting a Track Corrected Housing to the rear of my VDJ70 Series Landcruiser?"
_x000D_ From the factory, all VDJ70 Series Models (2007 to Current) have a significant track difference from front to rear, with the rear housing being 100mm narrower than the front. On the road, this track difference is not overly noticeable, but on soft/loose surfaces and in sand, this difference becomes more noticeable as the rear fights to stay in the wheel tracks cut by the front. By fitting a Superior Engineering Track Corrected Chromoly Diamond Diff Housing you are ensuring better vehicle stability and safer handling when Off-Road in your Landcruiser.

"Can I install this diff myself?"
_x000D_ Absolutely. Superior Engineering Track Corrected Chromoly Diamond Diff Housings can be installed by any individual with sound mechanical knowledge, and self-installation will not have an impact on having the modification approved. As part of your purchase, Superior Engineering will supply your vehicle certifier with the required LB2 documentation to approve legally the vehicle modification in your State or Territory once the housing has been installed.

"How long does installation take?"
_x000D_ Assuming none of your OE items needs to be replaced (Wheel Bearings, Brakes etc.) an installer with sound mechanical knowledge should be able to install this housing in 6-8 hours.

"Do you offer custom colour options?"
_x000D_ Superior Engineering offers the Track Corrected Chromoly Diamond Diff Housing in Black Powder Coat as standard but does offer a range of other colour options. Please contact our sales team for more information.

"I have an existing GVM Upgrade – Will this housing affect my compliance?"
_x000D_ No – The Superior Diff Housing features the industry"s highest 70 Series axle load rating at 3,150kg. This far exceeds the axle load requirements for all 4x4 LC70 GVM Upgrades on the market. Superior Engineering will supply your vehicle certifier with the required LB2 documentation required to approve legally the vehicle modification in your State or Territory.

"How do I go about engineering my diff housing upgrade?"
_x000D_ Once installed, your vehicle will require an engineering inspection and certification in your State or Territory. You will need to employ the services of a local Engineer or Vehicle Certifier, who will undertake the inspection of your vehicle on your behalf. Superior Engineering will supply the required LB2 documentation directly to your vehicle certifier who will then approve the modification.

"Will my insurance company void my policy with this diff housing installed?"
_x000D_ Insurance on your vehicle should not be an issue provided you have the installation/modification approved by an Engineer or vehicle certifier. Once the change has been legally approved, and the details of the modification lodged with your State Government transport authority, we recommend contacting your insurer to update your policy details.

"Being a custom housing, are parts hard to source?"
_x000D_ No - The Superior Engineering Track Corrected Chromoly Diamond Diff Housings has been designed with serviceability in mind and maintains the use of as many OEM components as possible including the Diff Centre, Brakes, Seals, Wheel Bearings and Hubs. Replacements of these components can be easily sourced from your local Toyota Dealer or an Automotive Parts store.

"What happens if I break an axle?"
_x000D_ The RCV 300M Axles supplied with the Superior Engineering Track Corrected Chromoly Diamond Diff Housings are the strongest option available on the market and are covered by a lifetime Warranty against breakage. In the unlikely scenario that you break an axle, simply contact your local Superior Engineering Stockist, or call our sales team on (07) 5433 1411 to arrange a replacement under Warranty. We ship worldwide.
