The Problem with the standard Nissan radius arm design is that the rear pin style mounting puts a lot of load on the mushroom bushes when the arms flex down.
\ And this is the main cause of premature failure of the bushes.

\ \

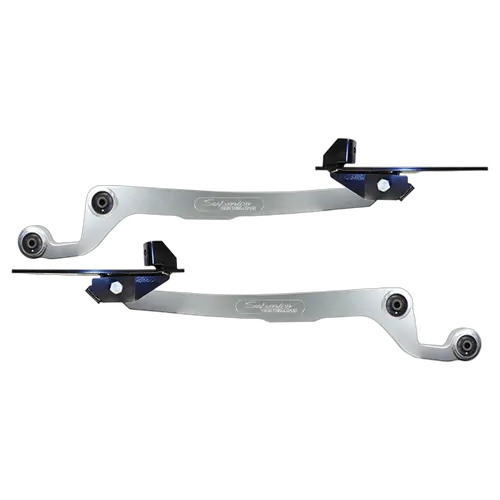

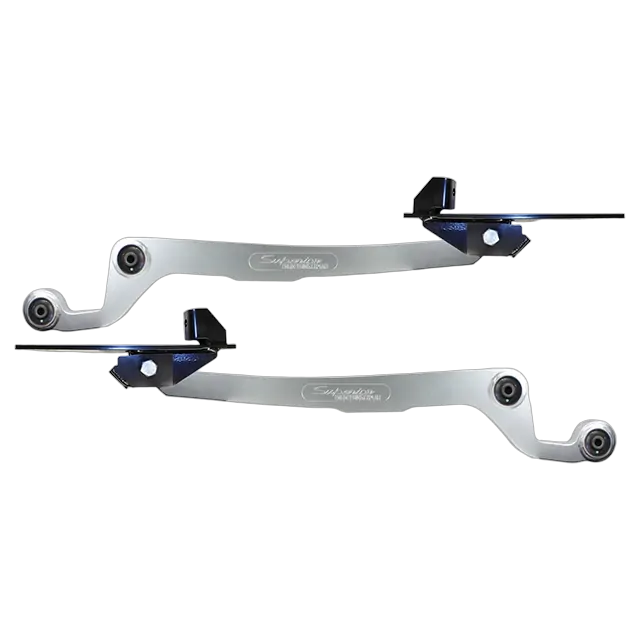

The difference between our new design arms over the standard Nissan radius arm is the use of a Toyota-style rear bush.
\ This change allows increased life from the rear bush when flexing the arms up off-road, by allowing the arm to flex down without the binding found in the pin-style design.

\ \

With the arms, we supply the mounting drop boxes that are a straight bolt-in design requiring no cutting and all bolts needed for mounting.

\ \

We also supply fitting instructions and all the bushes are pressed into the arms so you don’t have to.

\ \

With these arms, you will get the drivability you need and longer life from your bushes. Why not have extra flex as well as good on-road handling?

\ \

If you want to push the diff forward to straighten up your coils we offer the Hybrid Radius Arm Spacers.

\ \

Approved for on-road use under NCOP for GQ and GU Patrols(non-ESC) once inspected by an approved person

\ \

NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.
\ If you do not have sway bar mounts or you have 75mm mounts you can purchase the required ones below.\
85mm Sway Bar Mount
\ Sway Bar Bushes to suit 85mm Mounts

\ \

\

\ \

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real-world load points.
\ Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
\ Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

\ \

\ \

• \
• Manufactured from High Tensile Bisalloy 80/Strenx700 Plate
• \
• High Tensile Bar Bush Eyes
• \
• Massive 32mm main Beam thickness for maximum strength
• \
• Rubber Bushes pre-fitted into arms
• \
• Laser-cut to precise measurement and caster location
• \
• Authentic Superior Engineering Logo machined into the side of Arms
• \
• Factory Sway bar will fit to allow safe on-road handling (see important note)
• \
• Factory ABS lines will bolt-on. (See important note)
• \
• RADIUS ARMS are manufactured Suitable For various lifts
• \
• Sandblasted with rust prevention applied
• \
• Powder Coated for maximum durability and finish
• \
• High Tensile Bisalloy 80/Strenx700 Plate will not crack unlike Cast Radius Arms (See example below)
• \
• Sway Bar Adapter plate bracket and bolts have a SA5 Zinc coating for rust prevention
• \
• Allows vehicle to track correctly on road due to correct caster
• \
• Maximum Clearance between the Tie Rod and the Radius Arms
• \
• Factory bushes fit the RADIUS ARMS; we don’t use special sizes Bushes
• \

\ \

IMPORTANT NOTE:

• Superior Engineering Radius Arms now come drilled to suit 85mm sway bar saddles and ABS lines.

• \

\ \

NOTE: Please check ABS sensor lines(if fitted) are free to move through the full range of travel.
\ Factory bump stops may need to be extended depending on the coils and shock combination used.
\ Due to the huge variances in different weights of vehicles/heights variances and suspension combinations in
\ vehicles it is highly recommended to move your suspension in the full range of the
\ shock absorber compression/rebound travel and also taking into consideration coil bind,
\ check all areas for clearance issues, if you require more assistance in this talk to one of our sales team for further advice.

\ \

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

\ \

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

\ \

\

This product has passed testing for approval under the NCOP system.
\ See the flow chart below.
\

\ \

Below is a video of Nissan Patrol GU passing an LT2 Lane Change Test with ease, this test shows the Patrol passing the test loaded to GVM at 110km/h.
\ Proof that Superior Engineering Superflex and Radius Arms can still handle when on-road as well as the added flex off-road.

\ \

\ \

\ \

\ \

\ \

Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.

\ \

\ \ \ \ \ \ \ \
