The ULTIMATE in Bolt-In flex and offroad ability.

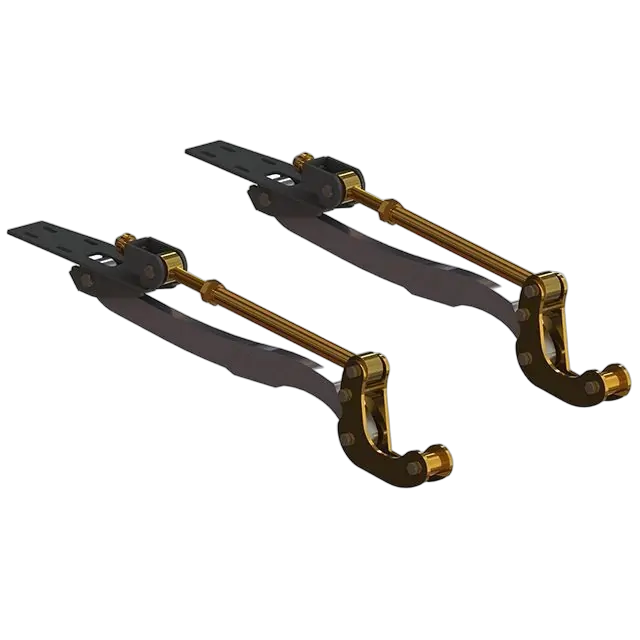

Superior's Patented design - Hybrid 5 link combines our unbreakable hybrid dropbox radius arms with a heavy-duty adjustable upper control arm into a unique system with unrivalled travel.
Our exclusive design allows the fitment of your factory sway bar and ABS models are pre-drilled for sensor wires.
Approved for on-road use under NCOP for GQ and GU Patrols(non-ESC)
NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.
If you do not have sway bar mounts or you have 75mm mounts you can purchase the required ones below.
85mm Sway Bar Mount
Sway Bar Bushes to suit 85mm Mounts
Features
- Maximum flex
- Superior strength
- Adjustable design works with all lift heights
- Lifetime Warranty against Bending
- Simple bolt-in installation
- Rubber Bushes pre-fitted into arms
- Massive 32mm BIS80 main Beam thickness for maximum strength
- Laser-cut to precise measurement and caster location
- Authentic Superior Engineering Logo machined into the side of Arms
- Powder/Zinc Coated for maximum durability and finish
- High Tensile Bush Eyes
Registered Design P/N#: 201714719, Pending #: 201715506
NOTE: maximum shock diameter a the diff end must not exceed 58mm
This product has passed testing for approval under the NCOP system.
See the flow chart below.

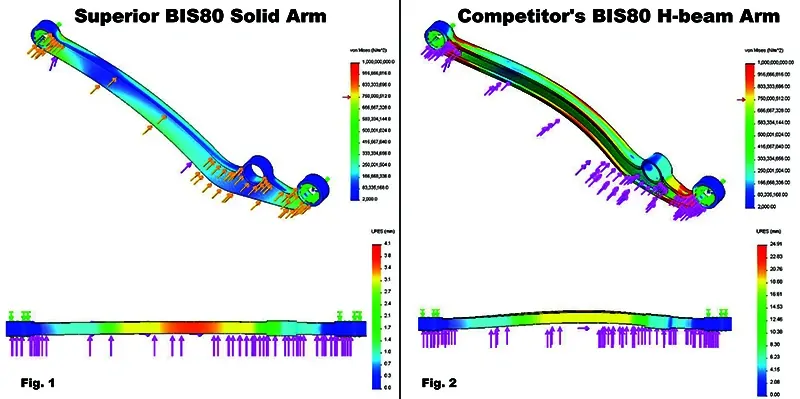

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real-world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.
Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.
Disclaimer
Superior Engineering is not sponsored, approved, affiliated or otherwise associated with any genuine or original parts manufacturer, distributor or dealer.
Identification and Guidance Only – Photos are for identification purposes only and may be of either genuine or non-genuine parts.
All manufacturers names, symbols and descriptions on this website are used for reference purposes only, and it is not implied that any units or parts listed is the product of these manufacturers.
Original Equipment Manufacturer "OEM" part/reference numbers are listed for information/reference purposes only. Trademarks identifying these parts are those of each OEM and are the property of their owners and are not used, or authorized for use, by Superior Engineering. Cross-referenced parts from the Original Equipment Manufacturer "OEM" are listed for information purposes only.
Superior Engineering has no associations and/or claims to be associated with OEM Vehicle Manufacturers and their Companies worldwide. Any implied associations are purely coincidental and are not inferred. Superior Engineering is a supplier of fully interchangeable non-genuine spare parts (alternatives) for equipment produced by manufacturers using in accordance with law OEM Vehicle Manufacturers and their products, i.e. suspension parts, steering components, manufactured items, vehicle accessories etc. Alternative spare parts produced by Superior Engineering are manufactured according own technological documentation developed with the use of reverse engineering.
FAQ / Extra Info
| Vehicle Information | |
| Lift Height | 0-2 inch|3 inch|4 inch|5 inch|6 inch|6 plus inch |
| SKU | SE-31673 |
|---|---|
| Barcode # | OEBC523761 |
| Brand | Superior Engineering |
| Shipping Weight | 66.4000kg |
| Shipping Width | 0.800m |
| Shipping Height | 1.400m |
| Shipping Length | 0.400m |

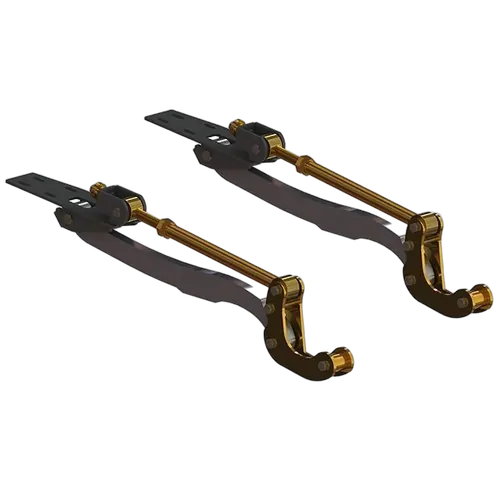

Superior Hybrid 5 Link To Suit Nissan Patrol GQ/GU (Pair)
