This is an adjustable Superior Tie Rod Suitable For Toyota Hilux, 4Runner and Surf SAF (Standard or Crossover) four-wheel-drive vehicle.

_x000D_

Tie rods come in a 32od High Tensile Steel Bar and use the male threaded tie rod ends.

_x000D_

Coated in a zinc finish to resist corrosion.

_x000D_

These tie rods are much stronger than factory and still cheaper to replace than a factory item.

_x000D_

23mm, 80 Series tie rod ends are used instead of the smaller Hilux items.

_x000D_

This Tie Rod comes with a pin-pin damper bracket so a pin-pin damper must be used as the factory damper won't fit. We Recommend this damper

_x000D_

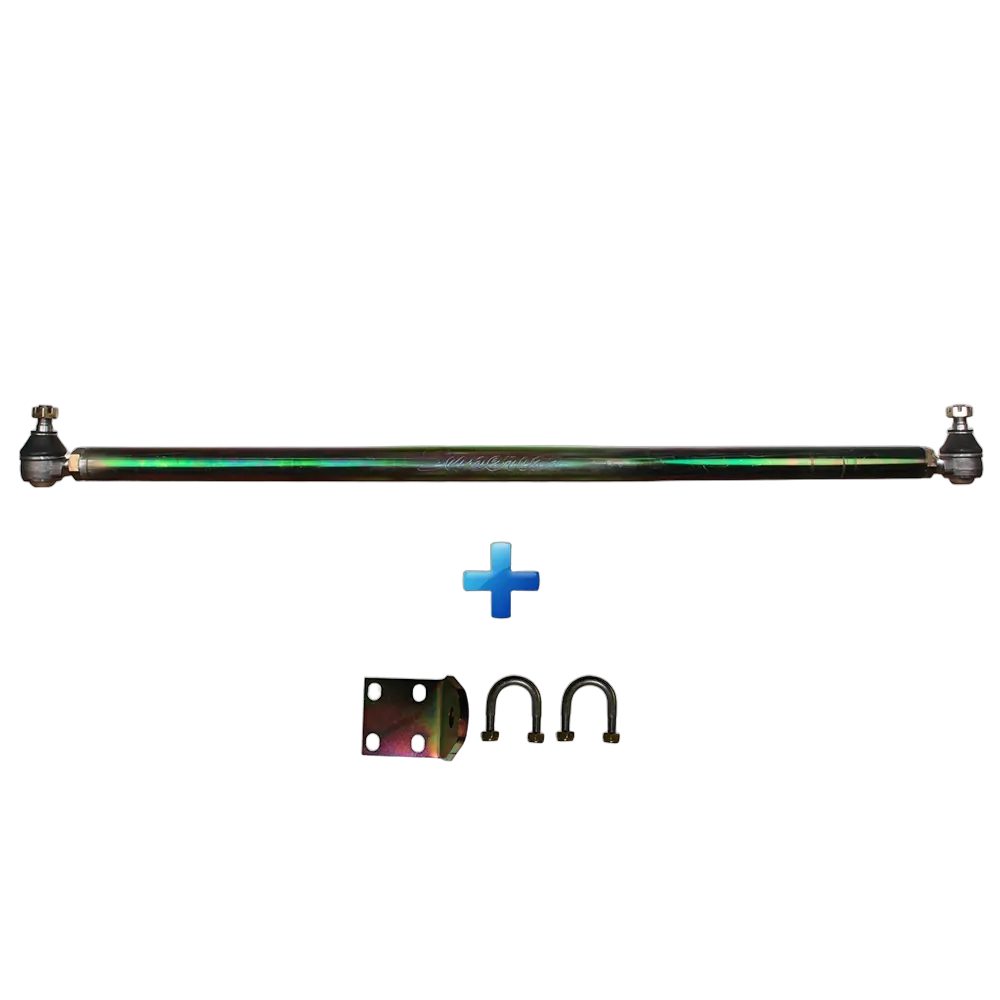

Includes

_x000D_

_x000D_
• 1 x Superior Mecaval Drag Link Bar
_x000D_
• 2 x Rod Ends (1 x LH & 1 x RH)
_x000D_
• 2 x Lock Nuts (1 x LH & 1 x RH)
_x000D_
• 1 x Superior Pin-Pin Damper Bracket Kit with Ubolts
_x000D_

_x000D_

_x000D_

Superior Engineering now includes ITS Seal Technology on internally threaded adjustable suspension linkages, eliminating the ingress of moisture or liquids that can cause corrosion or rust.

_x000D_

By adding a specially machined seal groove and incorporating a hydraulic seal between the locking nuts, the thread and the link, a perfect pressure-tight seal is created.

_x000D_

This patented process (PN-2015101600) is EXCLUSIVE to Superior Engineering's internally threaded items such as tierods, draglinks, Panhard rods and control arms (upper and lower).

_x000D_

_x000D_

_x000D_

Patent Number:2015101600

_x000D_

_x000D_

PLEASE READ:
Superior Engineering and other Brands of Steering components are replacement items that are in most
cases upgraded to be a stronger better choice than the factory item. The Superior Engineering steering
Components will meet or exceeds the factory specifications of OEM products. Although Superior
Engineering and other brands may be stronger or exceed OEM specifications maintenance must still be
performed on the components to ensure a safe and reasonable life out of the products.
For all steering products, it is recommended to carefully check over the ends, internal and external
threads and on hollow bars inside the rod every service you have on the vehicle or 6 monthly minimum
to ensure nothing is loose or damaged or rusted. It is recommended to ensure no rust has formed on
any steering parts as this may shorten the life or warranty of the product. Due to the harsh
environments such as beach work or general 4wding rust may quickly form on steel steering
components, it is recommended to replace the items if rust is present.
If there is any wear or "play "in the ball joints, Tie rod ends or threads they must also be replaced for
safety.

_x000D_

Due to shortages in steel supply at this current time, this product may be supplied in either of the finishes shown in the image below.
We are not able to guarantee which finish will be supplied but they are both of the same tensile strength and carry the same warranty.
