NOTE: We Strongly Recommend running Extended Front Shock Towers with these Shocks, Failure to do so will void the warranty.
_x000D_(ECDS) Electronic Controlled Damping System
Imagine a world where you can adjust your shocks through 100 levels of Compression adjustment from the comfort of the driver's seat, well with the Superior ECDS Shocks that world is a reality.
_x000D_Our latest range of adjustable 2.5 shocks comes with an in-cab controller that allows for not only a large range of adjustment of the compression but also 4 levels of fine-tuning of the adjustment with 5 stage, 16 stage, 64 stage, and 100 stage adjustment.
All these levels offer the same amount of compression adjustment just with different amounts of fine-tuning.
Simple Wiring
The wiring of the system is simplified with colour coding wires for the different shocks.
Rebound Adjustment
These shocks also feature 6 levels of rebound adjustment by a knob on the leg of the shock (not in-cab adjustable)
Heat Treated Alloy Steel Piston
_x000D_
Features race-inspired port configurations and variable rate shim stack technology to provide vehicle-specific damping performance and optimum ride quality. A composite Teflon wear band offers low internal resistance and high compressive strength enhancing shock performance.
Spherical Rod End Assembly - Strut
_x000D_
High-performance spherical rod end assembly designed for correct clearance and increased strength Suitable For your application. Fitted with Teflon-lined Commercial Grade spherical bearings for smooth articulation and longest life.
Remote Reservoir Canister
_x000D_
Remote Reservoir Canister for increased oil volume, and greater cooling capacity. Internal Floating Piston separates the shock Oil and Nitrogen eliminating Foaming or mixing of the oil and gas that produces shock fade.
Highest Quality Materials
_x000D_
CR3+ plated Bored and Honed cylinder tubes, Aircraft quality billet aluminum components, High-pressure hydraulic hose, and seals. Plus the 22mm Hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.
Fully Rebuildable For Long Life
_x000D_
These Superior Remote Reservoir Shocks are fully Rebuildable, Serviceable, and Upgradeable. All parts are carried in stock and allow the user to finely-tune, adjust, and service their shocks, ensuring you get the longest life possible from your suspension.
Features
_x000D_ _x000D_- _x000D_
- up to 100 stage compression adjustment with a simple turn of the dial on the in-cab controller _x000D_
- 6 stage rebound adjustment with a simple turn of the knob mounted on the shock. _x000D_
- 60mm Piston with Teflon _x000D_
- 22mm super polished shaft _x000D_
- 66mm outer body _x000D_
- floating piston inside the reservoir _x000D_
- Cr+3 Surface finish _x000D_
- Unique Valving and Piston Design _x000D_
Struts include coils
_x000D_
2.5 Struts will only be sent fully assembled with coils
5 Stage Fine Tuning
_x000D_
16 Stage Fine Tuning
_x000D_
64 Stage Fine Tuning
_x000D_
100 Stage Fine Tuning
| SKU | SE-46679 |
|---|---|
| Barcode # | 930000046679 |
| Brand | Superior Engineering |
| Shipping Weight | 23.6100kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.930m |

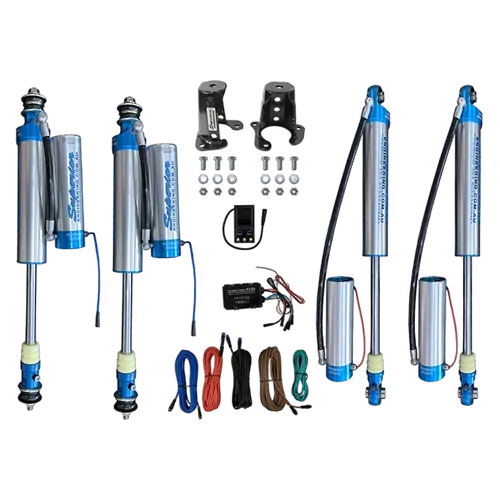

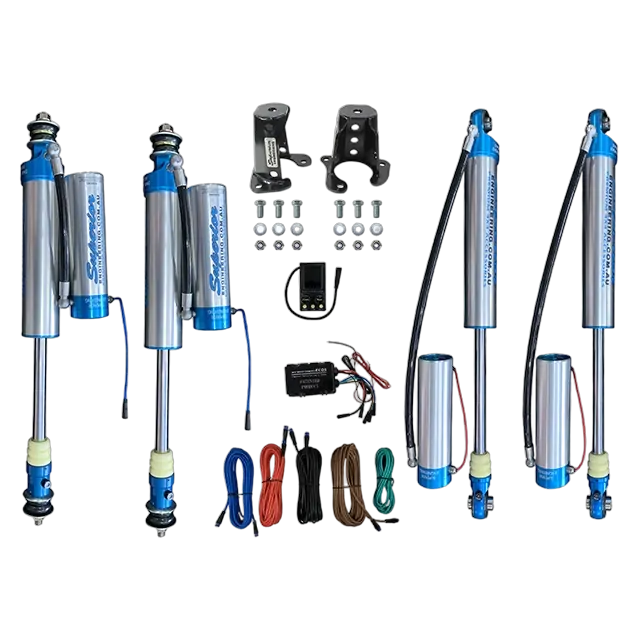

Superior Electric (ECDS) In Cab Adjustable 2.5 Monotube Remote Reservoir Shock Kit 3 Inch (75mm) Lift Suitable for Nissan Patrol GQ/GU (Kit) (Shock Ki
