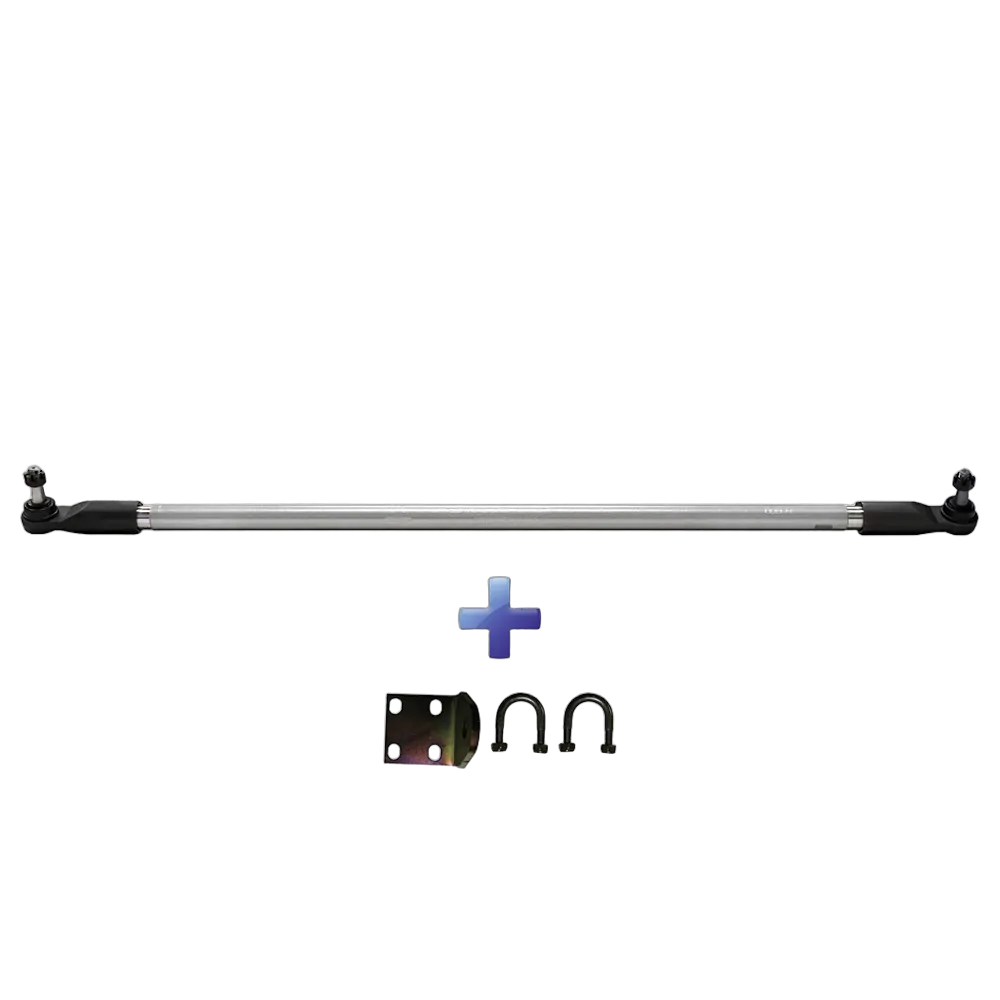

This is a Superior Adjustable Drag Link with a pin to pin bracket Suitable For GU Nissan Patrol Ute & Pre 1/2000 Wagon with a 2-6 inch lift.

They are manufactured from 32od High Tensile Steel Bar.

6 mm wall thickness means these are extremely strong compared to factory items.

Adjustable and replaceable ends are supplied with the drag link and come with a pin - pin damper bracket.

These rods are for all Utes and pre < 1/2000 wagons.

They are zinc coated for rust resistance and have greasable tie rod ends.

(Drag links are the front rod that connects to the steering box).

Patent Number: 2015101600.

Includes

• 1 x Superior Comp Spec Drag Link Bar (4340M)
• 2 x HD Heim Rod Ends (1 x LH & 1 x RH)
• 1 x Superior Pin-Pin Damper Bracket Kit
• 1 x Tie Rod Wedge Tool

PLEASE READ:
Superior Engineering and other Brands of Steering components are replacement items that are in most
cases upgraded to be a stronger better choice than the factory item. The Superior Engineering steering
Components will meet or exceeds the factory specifications of OEM products. Although Superior
Engineering and other brands may be stronger or exceed OEM specifications maintenance must still be
performed on the components to ensure a safe and reasonable life out of the products.
For all steering products, it is recommended to carefully check over the ends, internal and external
threads and on hollow bars inside the rod every service you have on the vehicle or 6 monthly minimum
to ensure nothing is loose or damaged or rusted. It is recommended to ensure no rust has formed on
any steering parts as this may shorten the life or warranty of the product. Due to the harsh
environments such as beach work or general 4wding rust may quickly form on steel steering
components, it is recommended to replace the items if rust is present.
If there is any wear or "play "in the ball joints, Tie rod ends or threads they must also be replaced for
safety.

Due to shortages in steel supply at this current time, this product may be supplied in either of the finishes shown in the image below.
We are not able to guarantee which finish will be supplied but they are both of the same tensile strength and carry the same warranty.
