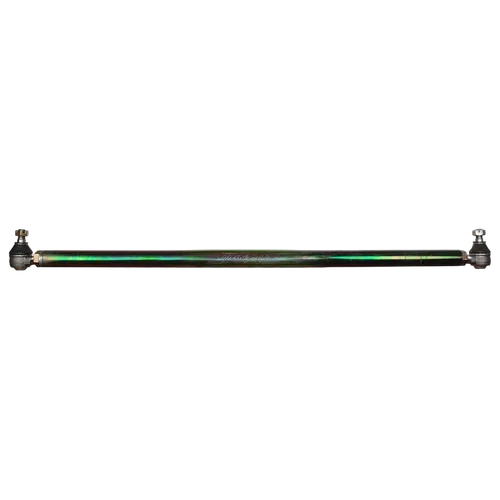

This is an adjustable Superior Tie Rod Comp Spec Suitable For Toyota Bundera four wheel drive vehicle.
Comp Spec Tie Rods are manufactured from 33-35 OD High Tensile Steel Bar.
They come with 23mm male threaded tie rod ends.
If you have a competition vehicle or just want a Tie Rod that will take punishment time and time again than these are the ones.
Adjustable Tie rod ends are supplied with the tie rod.
They are zinc coated for rust resistance (tie rods are the rod on the rear behind the diff).
We supply the Tie Rod ends 1 x TE698L and 1 x TE631R.
Superior Engineering now includes ITS Seal Technology on internally threaded adjustable suspension linkages, eliminating the ingress of moisture or liquids that can cause corrosion or rust.
By adding a specially machined seal groove and incorporating a hydraulic seal between the locking nuts, the thread and the link, a perfect pressure tight seal is created.
This patented process (PN-2015101600) is EXCLUSIVE to Superior Engineering's internally threaded items such as tierods, draglinks, panhard rods and control arms (upper and lower).
Video
Patent Number:2015101600
PLEASE READ:
Superior Engineering and other Brands of Steering components are replacement items that are in most
cases upgraded to be a stronger better choice than the factory item. The Superior Engineering steering
Components will meet or exceeds the factory specifications of OEM products. Although Superior
Engineering and other brands may be stronger or exceed OEM specifications maintenance must still be
performed on the components to ensure a safe and reasonable life out of the products.
For all steering products, it is recommended to carefully check over the ends, internal and external
threads and on hollow bars inside the rod every service you have on the vehicle or 6 monthly minimum
to ensure nothing is loose or damaged or rusted. It is recommended to ensure no rust has formed on
any steering parts as this may shorten the life or warranty of the product. Due to the harsh
environments such as beach work or general 4wding rust may quickly form on steel steering
components, it is recommended to replace the items if rust is present.
If there is any wear or “play “in the ball joints, Tie rod ends or threads they must also be replaced for
safety.
Due to shortages in steel supply at this current time, this product may be supplied in either of the finishes shown in the image below.
We are not able to guarantee which finish will be supplied but they are both of the same tensile strength and carry the same warranty.
SKU | SE-20399 |
---|---|
Barcode # | OEBC558624 |
Brand | superior engineering |
Shipping Weight | 8.7800kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 1.100m |
