Please Note: Due to supply issues, the colour of the coil springs you receive may vary from the coils pictured. All coils used in Superior Engineering Kits are made from quality Australian manufacturers.

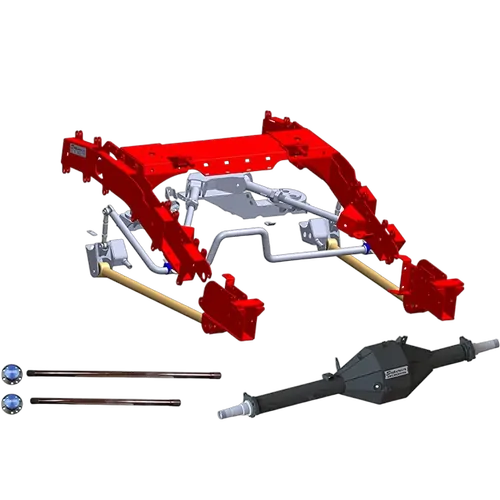

The Superior Engineering LandCruiser 76 coil kits can be supplied to suit a wide range of applications. We have packages and options from – VSB / State approved kits that use your factory housing in either Bolt-In or Weld-In to our bigger kits that can be Federally approved. Our Superior Outback Tourer™ kits allow a metric equivalent or imperial 35" tyre, 4" suspension lift kit, 3.8-tonne GVM, Wide-Track Chromoly Diamond Diff Housing.
_x000D_ _x000D_With so many options available Superior Engineering can supply a kit to suit just about any application, whether you"re just a weekend wheeler that has no weight and puts the dog in the back, a tradie that is loaded through the week and unloaded on the weekends or a fully kitted-out 3.8T+ tourer.
_x000D_ _x000D_
For more detailed information please Click Here
FEATURES & HIGHLIGHTS
_x000D_ _x000D_- _x000D_
- Bolt-In Kit Featuring 4 x Chassis Side Strengthening Braces
- Heavy Duty Sway bar & Coil Tower Brace _x000D_
- Uses Factory Mounting Locations For A Precise Fit _x000D_
- Supplied Pre-Fabricated For An Easy Installation _x000D_
- Improved Roll Axis For Tyre Clearance _x000D_
- Increased Wheel Travel & Articulation _x000D_
- Adjustable Upper Control Arms _x000D_
- 40mm OD Fixed Lower Control Arms _x000D_
- Reduced Bush Bind Over A 5-Link _x000D_
- Compatible with Coil Air Bags _x000D_
- 4-Link Rear Suspension Setup _x000D_
- Fully Adjustable Pinion Angle _x000D_
- Provides More Precise Handling _x000D_
- Improved Comfort & Ride _x000D_
- 350 Grade Steel Mounts _x000D_
- Supplied with Sway Bar _x000D_
- Geometry will work on up to 5" lift but not legal at that height _x000D_
- Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg _x000D_
NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.
_x000D_ _x000D_
For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".
_x000D_| SKU | SE-35817 |
|---|---|
| Barcode # | 930000035817 |
| Brand | Superior Engineering |
| Shipping Weight | 220.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 1.200m |
| Shipping Length | 1.200m |
Superior Bolt In Coil Conversion VSB14 Approved Kits With Track Corrected Chromoly Diamond Diff Housing Suitable For Toyota LandCruiser 76 Series Gen
