Description
7 x 19 construction is formed from seven strands, 19 wires per strand. Suited to running rigging, control cables and most flexible applications.
It has increased stretch and reduced tensile strength.
| Part Number | Breaking Load | Diameter | Grams per metre | Roll Size |
|---|---|---|---|---|
| BLA-167231 | 190kg | 1/16" | 11.15g | 305m |
| BLA-167232 | 255kg | 5/64" | 17.38g | 305m |
| BLA-167233 | 370kg | 3/32" | 24.98g | 305m |
| BLA-167234 | 695kg | 1/8" | 43.11g | 305m |
| BLA-167235 | 960kg | 5/32" | 66.89g | 305m |
| BLA-167236 | 1450kg | 3/16" | 96.72g | 305m |
| BLA-167238 | 2540kg | 1/4" | 163.61g | 305m |
Specifications
| SKU | 167232 |
|---|---|
| Barcode # | 9319786111963 |
| Brand | Sungsan |
| Shipping Weight | 5.8200kg |

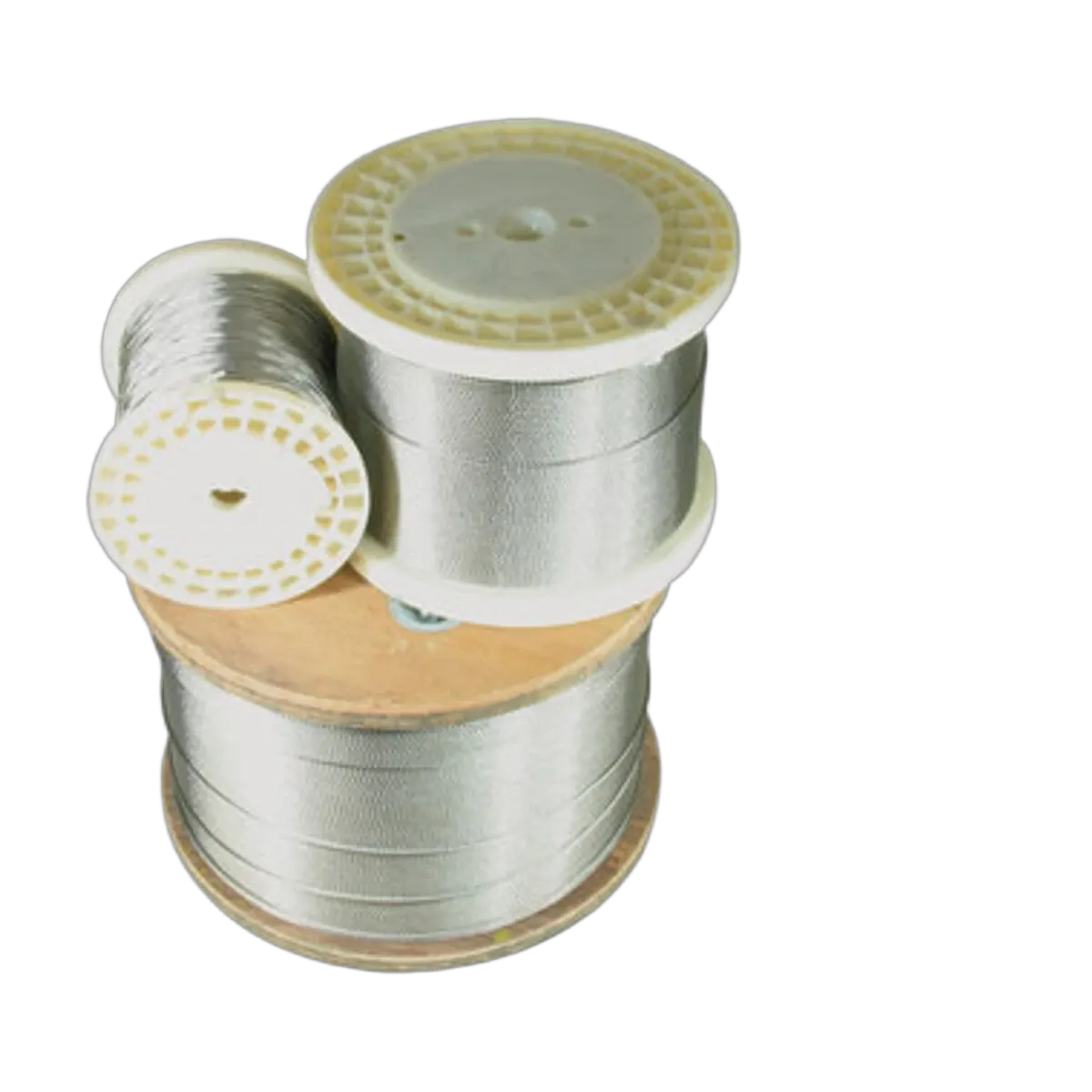

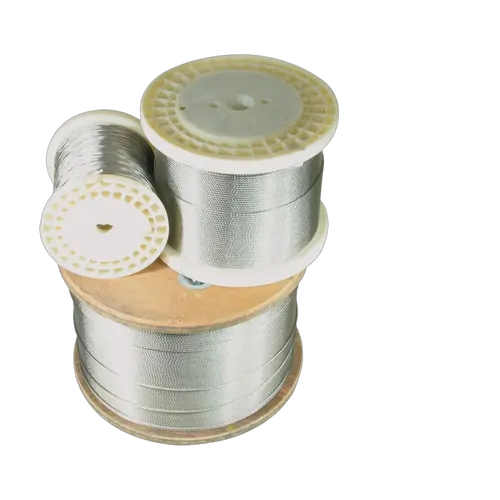

Sungsan Stainless Steel Wire Rope G316 7 X 19 5/64" 305M
SKU: 167232
More infoMake 4 payments of $146.50 over 8 weeks and get it now!
Calculate Shipping
Description
7 x 19 construction is formed from seven strands, 19 wires per strand. Suited to running rigging, control cables and most flexible applications.
It has increased stretch and reduced tensile strength.
| Part Number | Breaking Load | Diameter | Grams per metre | Roll Size |
|---|---|---|---|---|
| BLA-167231 | 190kg | 1/16" | 11.15g | 305m |
| BLA-167232 | 255kg | 5/64" | 17.38g | 305m |
| BLA-167233 | 370kg | 3/32" | 24.98g | 305m |
| BLA-167234 | 695kg | 1/8" | 43.11g | 305m |
| BLA-167235 | 960kg | 5/32" | 66.89g | 305m |
| BLA-167236 | 1450kg | 3/16" | 96.72g | 305m |
| BLA-167238 | 2540kg | 1/4" | 163.61g | 305m |
Specifications
| SKU | 167232 |
|---|---|
| Barcode # | 9319786111963 |
| Brand | Sungsan |
| Shipping Weight | 5.8200kg |
