Description
1 x 19 construction wire is formed from 19 strands of wire. Suited to standing rigging, static load bearing, architectural use and most non-flexible applications.
It has high tensile strength, low stretch and low flexibility.
| Part Number | Breaking Load | Diameter | Grams per metre | Roll Size | |
|---|---|---|---|---|---|
| BLA-167130 | 220kg | - | 1/16" | 12.59g | 305m |
| BLA-167133 | 485kg | - | 3/32" | 29.73g | 305m |
| BLA-167148 | 756kg | 3mm | - | 44.60g | 305m |
| BLA-167134 | 870kg | - | 1/8" | 52.07g | 305m |
| BLA-167135 | 1340kg | - | 5/32" | 81.97g | 305m |
Specifications
| SKU | 167130 |
|---|---|
| Barcode # | 9319786122181 |
| Brand | Sungsan |
| Shipping Weight | 4.3800kg |

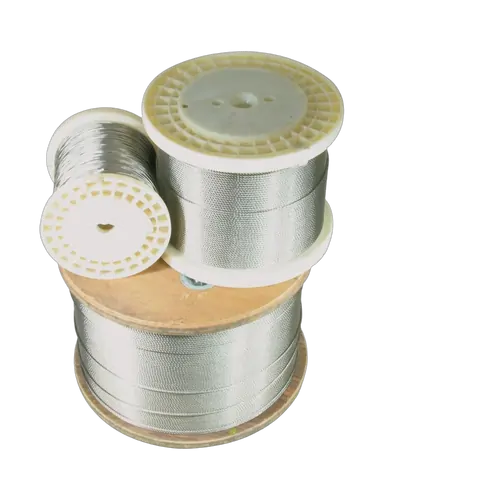

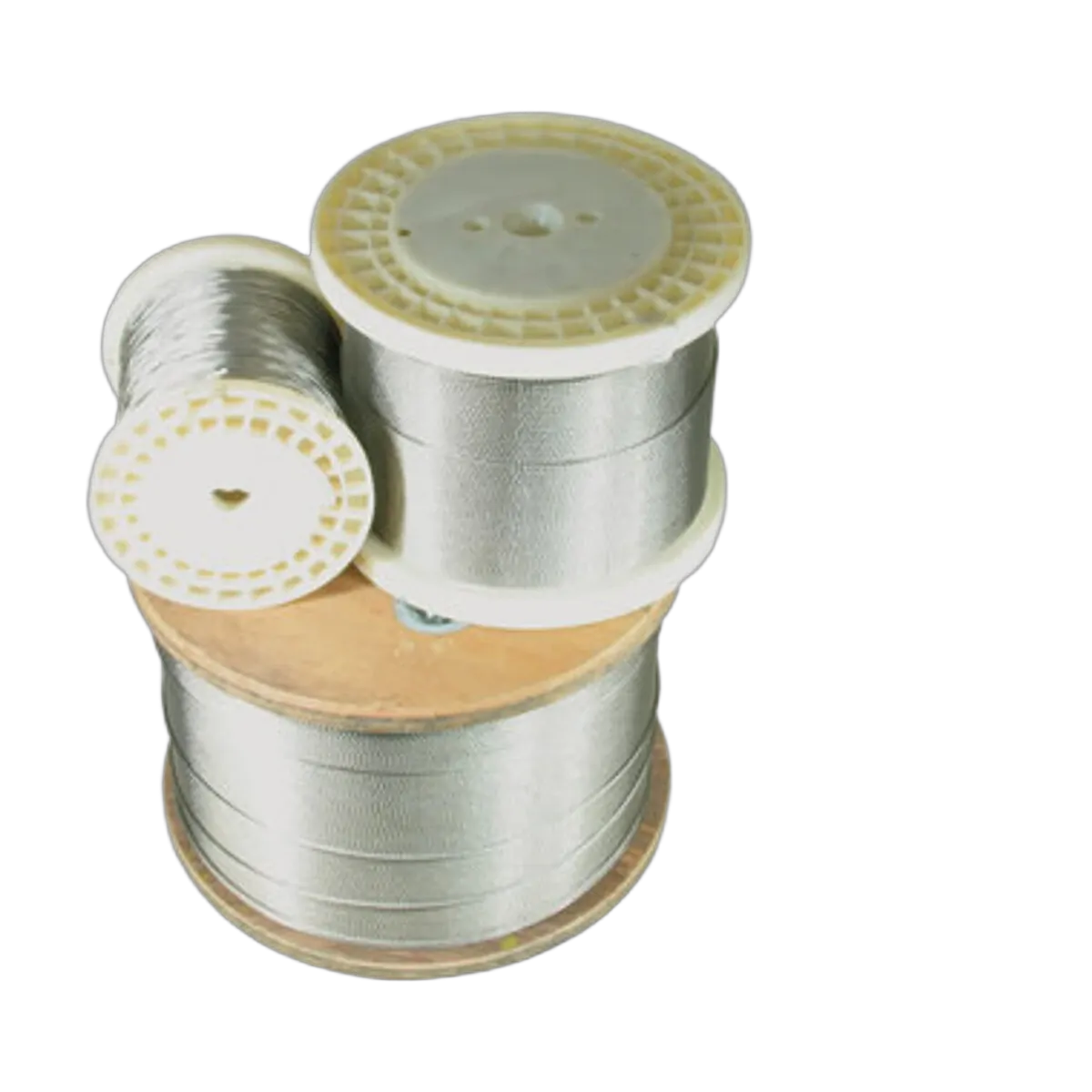

Sungsan Stainless Steel Wire Rope G316 1 x 19 1/16" 305M
SKU: 167130
More infoMake 4 payments of $58.75 over 8 weeks and get it now!
Calculate Shipping
Description
1 x 19 construction wire is formed from 19 strands of wire. Suited to standing rigging, static load bearing, architectural use and most non-flexible applications.
It has high tensile strength, low stretch and low flexibility.
| Part Number | Breaking Load | Diameter | Grams per metre | Roll Size | |
|---|---|---|---|---|---|
| BLA-167130 | 220kg | - | 1/16" | 12.59g | 305m |
| BLA-167133 | 485kg | - | 3/32" | 29.73g | 305m |
| BLA-167148 | 756kg | 3mm | - | 44.60g | 305m |
| BLA-167134 | 870kg | - | 1/8" | 52.07g | 305m |
| BLA-167135 | 1340kg | - | 5/32" | 81.97g | 305m |
Specifications
| SKU | 167130 |
|---|---|
| Barcode # | 9319786122181 |
| Brand | Sungsan |
| Shipping Weight | 4.3800kg |
