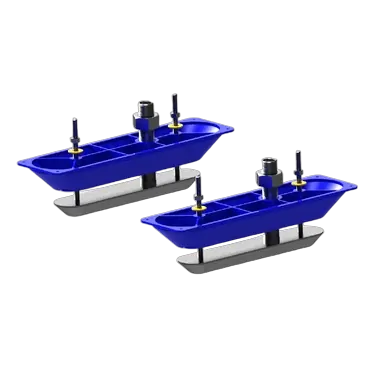

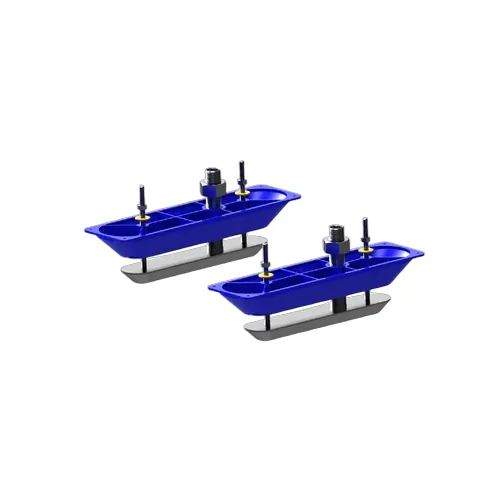

Stainless steel StructureScan™ HD Sonar thru-hull transducer with Y-cable. (pair). Cable length 7.6 m (25 ft)

LSS-2 Though Hull Transducers

Lowrance and Simrad Yachting announce the release of new thru-hull Stainless steel transducers and SKU configurations for the new StructureScan® HD Sonar Imaging product line, providing more range and greater resolution.

As with transom-mount LSS-2 StructureScan® HD transducers, the new thru-hull Stainless steel versions deliver extreme target detail, bottom discrimination and bait and game fish separation at depths to 300 ft/92 m and a wider range of 600 ft/183 m side-to-side coverage. All StructureScan® HD transducers are packed with an enhanced dual-frequency element array that operates at 455 kHz and 800 kHz.

These Stainless steel transducers from Airmar® are available only from Navico exclusively for StructureScan® HD and StructureScan® systems. These sturdy, Stainless steel transducers are resistant to the electrical forces in the environment where it will be used. Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan plus DownScan Imaging™ technology; includes a high-performance fairing that will give you Structure performance at speeds up to 35 mph; and feature a 30 ft/9 m transducer cable.

For boats with steep or variable deadrise hull angles, consumers must purchase the StructureScan® HD Stainless steel Thru-Hull Pair (000-11460-001) for seamless display of SideScan and DownScan Imaging. The kit includes the required Y-cable.
