133 Series

133 Series

Features / Specifications

  • Low Profile recess Model
  • ECE approved
  • IP67 100% Waterproof
  • Dual Voltage 12/24 Volt

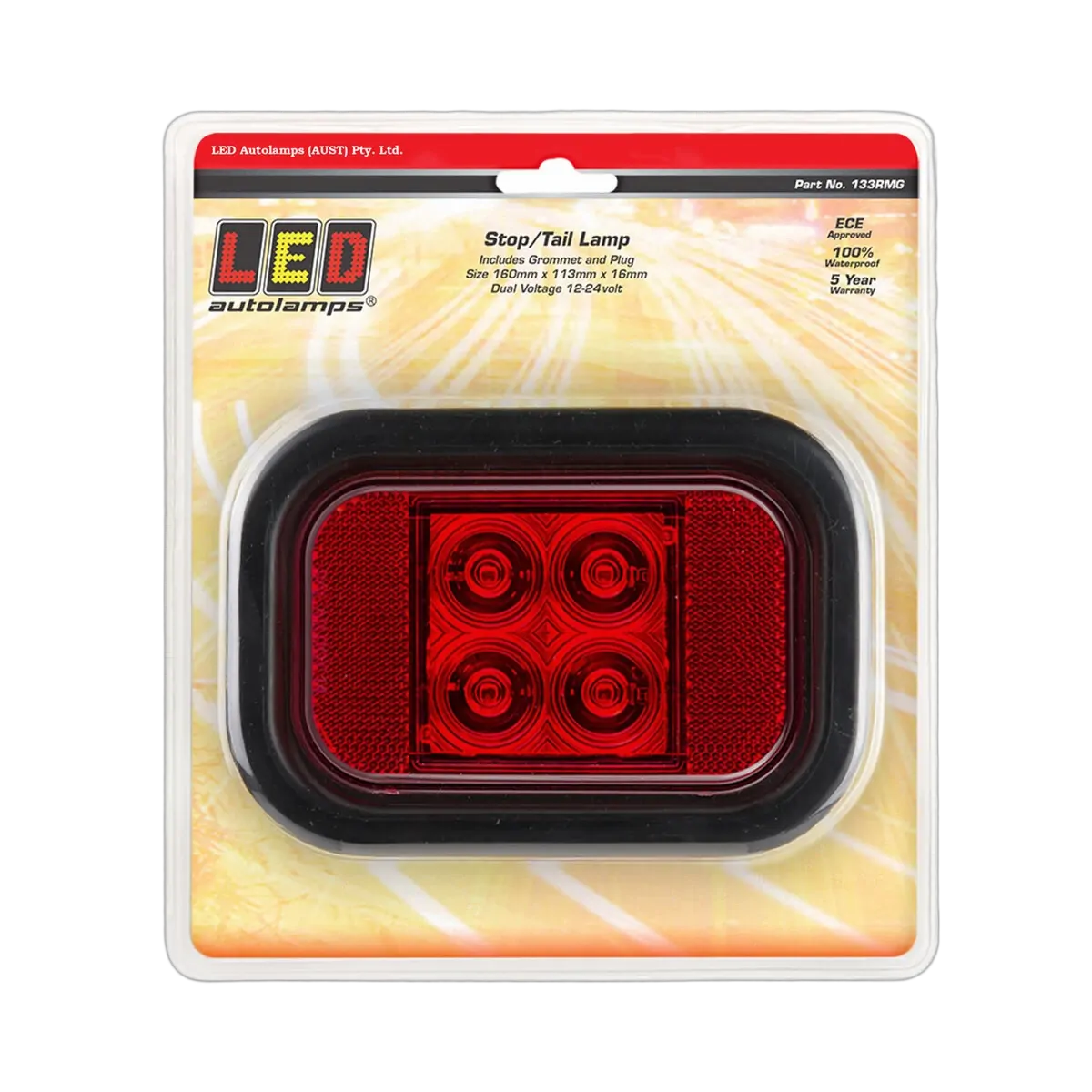

  • Blister Pack Contains Grommet/Plug
  • 113mm x 160mm x 12mm (Grommet)
  • 5 Year Warranty


Download Data Sheet

Fitting Instructions

Retrofit lamps. If new installation, fit grommet or flange into cutout (cut out 139 x 91mm, 23mm radius), plug 53102 wire into a lamp and run through back then push into grommet/flange. Please refer to ADR 13/00 for mounting instructions.

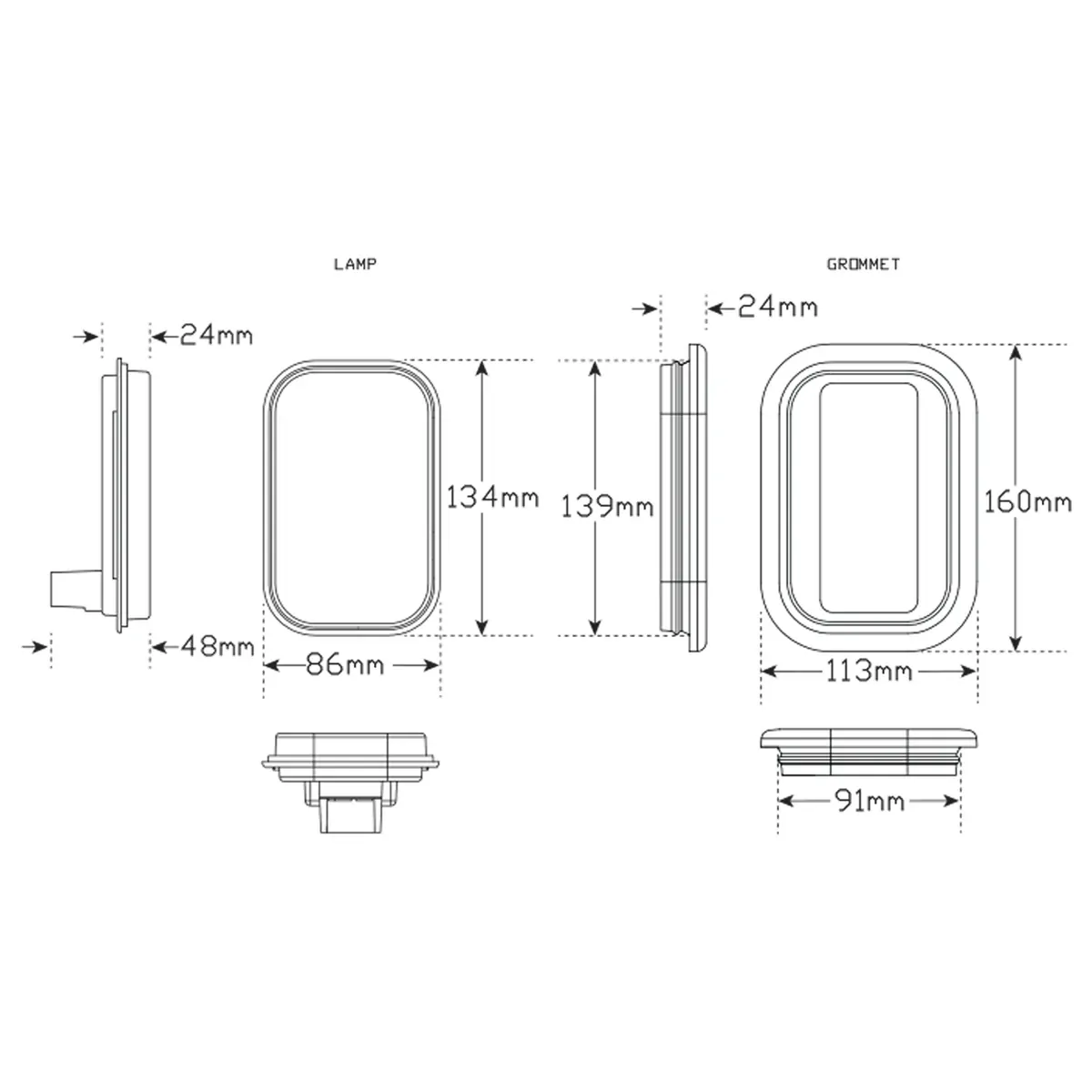

Technical Drawings

More details


SKU 133RMG
Barcode # 9335962023240
Brand LED Autolamps
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.220m
Shipping Length 0.050m

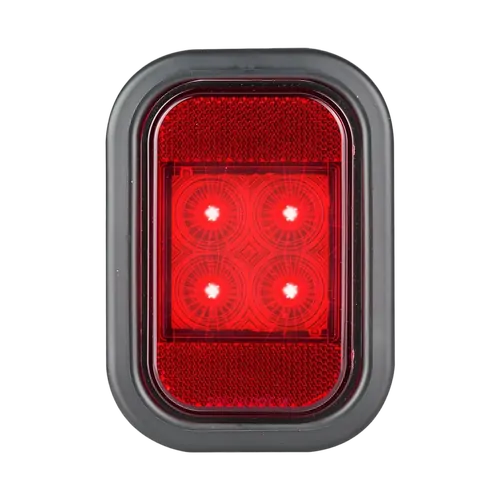

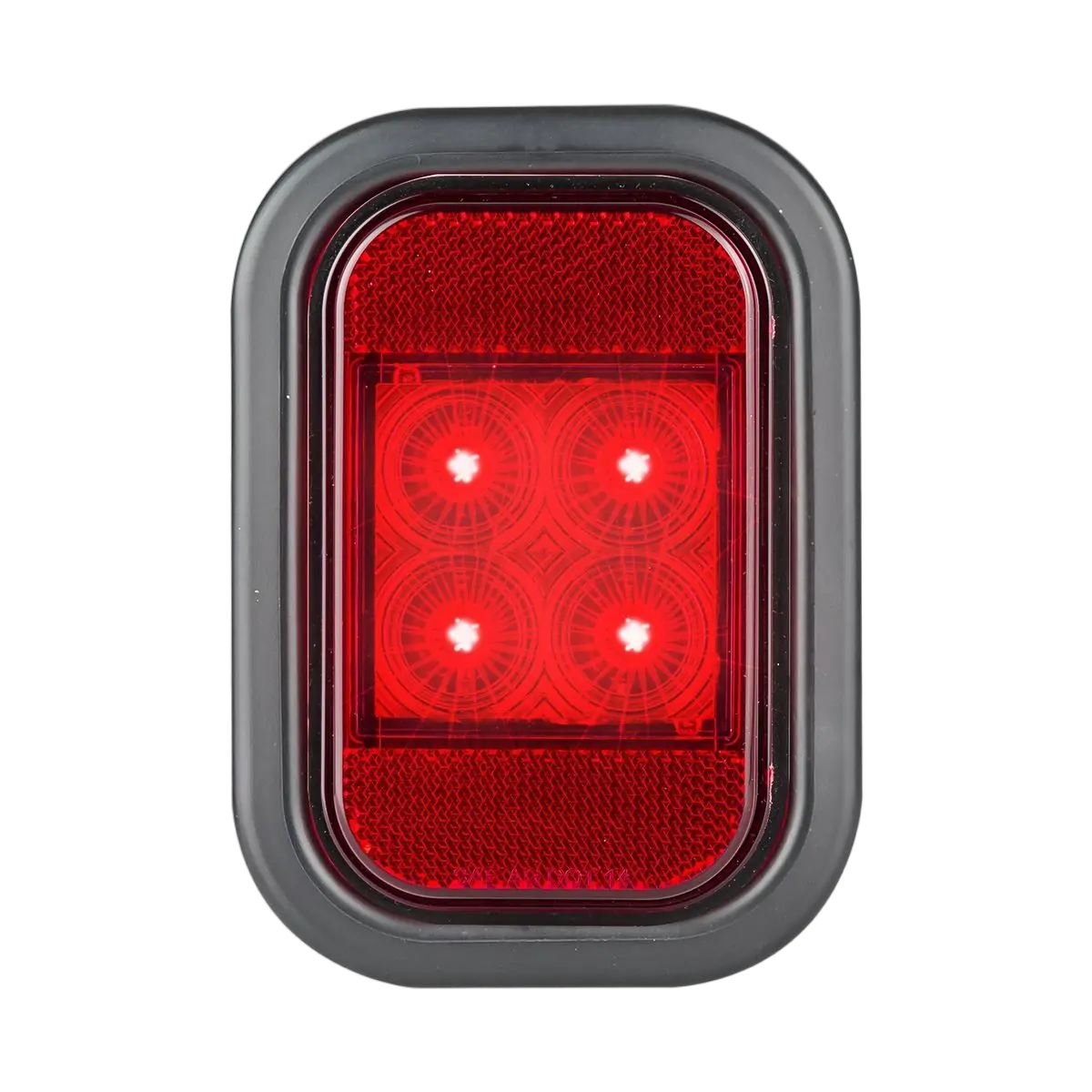

Stop/Tail Lamps 133RMG

SKU: 133RMG
Sale price
$41.99
RRP $45.68
Earn 410 Outback Rewards Points
Sale price
$41.99
DON'T PAY RRP $45.68
PayPal Checkout
4 payments of $10.50

afterpay More info.

Make 4 payments of $10.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $10.50
Stop/Tail Lamp With Reflector And Rubber Grommet And Plug,12 & 24 Volt, 160Mm X 113Mm X 16Mm, Blister Package
