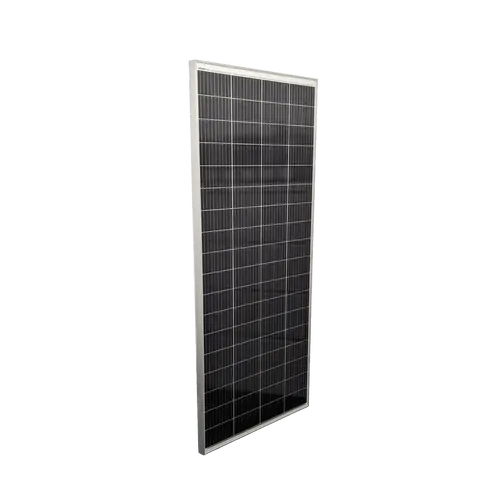

Sphere Twin Cell solar technology is the future of solar power generation for the caravanning and RV market. Researched and developed in Australia, Sphere Twin Cell Technology is an innovative solution to the common issue of partial shading that affects RV solar power applications.

Product Description

Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.

Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.

FEATURES

• Sphere Twin Cell Solar Technology for improved performance in partial shade.
• Improved cell efficiency enabling 200W from a 180W footprint.
• By-passed diodes to improve reliability and further minimize power drops caused by shade.
• An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications.
• Antireflective, high transparency tempered glass for durability
• IP65-rated junction box provides complete protection against dust and water.

Specifications

• 		500-06250
  Electricity Performance	Standard Test Conditions	1000W/M2,1.5AM,25
  	Peak Power Output (W)	200 W
  	Power Output Tolerance（％）	3%
  	Maximum Power Voltage (V)	20.6
  	Maximum Power Current (A)	9.71
  	Short Circuit Current（A）	9.85
  	Open Circuit Voltage(V)	24.1
  	Maximum System Voltage	1000V/DC
  Mechanical Performance	Junction Box Type	0.9 m 4mm 2 solar cable fitted with MC 4 IP65
  	Number of Cells	4*18 72 72pcs
  	Module Size (mm)	670*1480*35*30*1.2
  	Module Net Weight	11 KG
  Temperature Coefficient
  	Working Temperature	﹣40 ～85 ℃
  	Power TK	﹣0.45%/℃
  	Open Circuit Voltage T	﹣0.3 3%/ ℃
  	Short Circuit Current T	0.045%/
  	Test temperature	25±2 ℃
  Guarantee of power output	≦10 Years	≧90%
  	≦25 Years	≧80%
  	Material Warranty	12 Months
