phere’s battery performance is now backed by a 5 Year manufacturer’s warranty.

Introducing the all new and updated Sphere Lithium Battery range. Featuring prismatic cell technology, and new advanced Battery Management Systems (BMS)

Product Description

Lightweight, compact and powerful, the Sphere battery range is ideally suited to all your adventure and off grid needs. Developed and tested in Australia for use in caravans, RVs, marine, camping and off grid applications, there is a battery to suit your needs. Fully sealed and IP65 water ingress rated, Sphere batteries are perfect for boating or 4WD application.


The new advanced BMS not only ensures you get the maximum power from your battery, but also ensures safe operation and optimum charging. Sphere lithium batteries feature Dynamic Cell Balancing technology to ensure an even, balanced state of charge and discharge between cells at all times.


Lithium batteries are lighter, offer better usable capacity and charge quicker than older battery technology. The new Sphere prismatic cells can be connected in series up to 24V or up to 4 batteries in parallel.


If you are upgrading an existing deep-cycle lead acid or AGM battery in most cases you can continue to use your same system. The built in BMS will ensure efficient and safe operation.

Features:

• Prismatic cells
• 5 Year Warranty
• New Advanced BMS
• Dynamic Cell Balancing technology
• IP65 Water Ingress Rating
• 2000 Cycles at 100% Discharge.
• 4000 Cycles at 50% Discharge
• High discharge current max 250A
• Connect in series up to two batteries (24-volt system)
• Connect in parallel up to 4 batteries.
• Heavy-duty ABS case
• Heavy-duty M8 Terminals
• Maintenance-free
• Lithium LiFePO4
• Grab handle for transport and handling.
• Over-discharge protection

Specifications

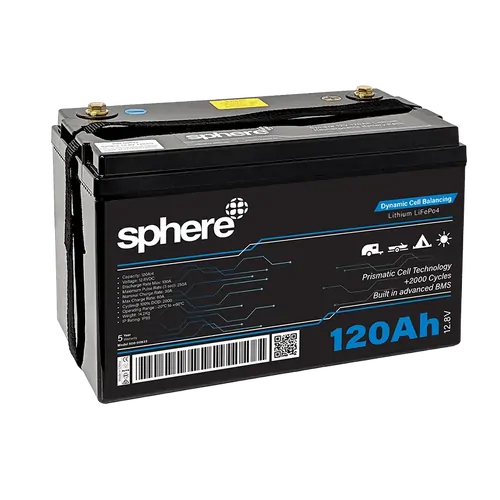

• Sphere	120AH
  Model #	500-00833
  Capacity	120AH
  Voltage	12.8VDC
  Discharge Rate Max	100A
  Maximum Pulse Rate (3 sec)	250A
  Nominal Charge Rate	30A
  Max Charge Rate	60A
  Cycles@ 100% DOD	2000
  Operating Range	-20°C to +60°C
  Weight	14.2Kg
  Dimensions mm (Excl Terminals)	334 x 175 x 219
  IP Rating	IP65
