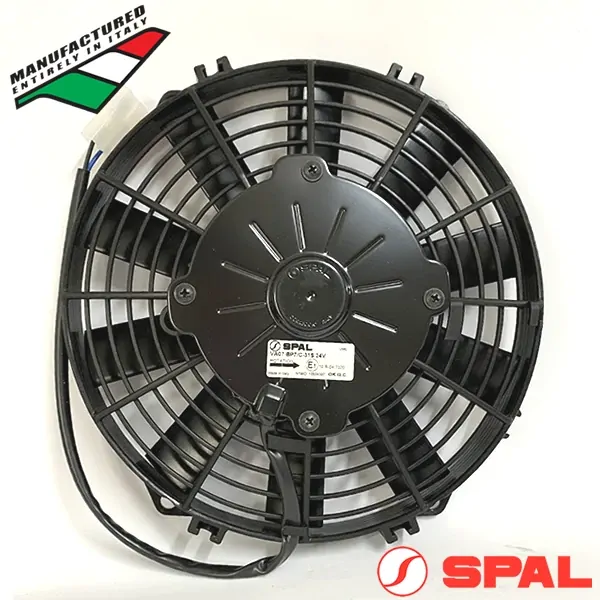

The VA07-BP7/C-31S (EF3512) 24v 9" SPAL Pusher Fan features a Straight Blade Design which can push up to 696cfm / 1180m3/h.
The EF3512 9" Fan is individually balanced for long life and features a fully sealed waterproof motor of superior quality and backed with a 3-year manufacturers .
EF3512 9" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA07-BP7/C-31S |
Voltage | 24V |
Flow Type | Pusher |
Blade Diam. | 9 inch (225mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 4.1 |
CFM | 696 |
M3/H | 1180 |
Spec. Sheet | View Specifications |
EF3512 9" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 247mm / 9.72" |
B | 247mm / 9.72" |
C | 139mm / 5.41" |
D | 206mm / 8.11" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3512 |
---|---|
Barcode # | 9316042080872 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.247m |
Shipping Length | 0.247m |
