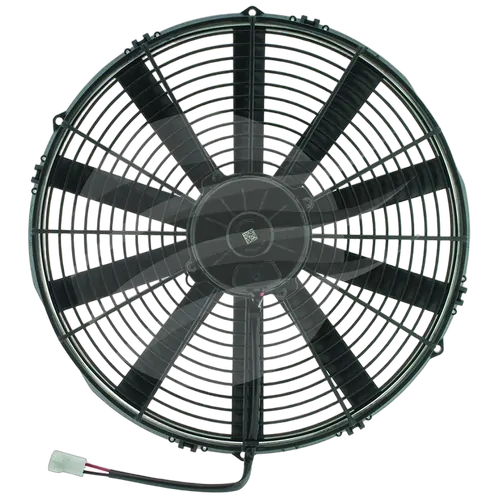

The VA18-BP70/LL-86S (EF3610) 24v 16" SPAL Pusher Fan features a Straight Blade Design which can push up to 2089cfm / 3540m3/h.
Individually balanced for long life, the EF3610 16" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3610 16" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA18-BP70/LL-86S |
U.S. Part # | 30102540 |
Voltage | 24V |
Flow Type | Pusher |
Blade Diam. | 16 inch (385mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 8.7 |
CFM | 2089 |
M3/H | 3540 |
Spec. Sheet | View Specifications ![]() |
EF3610 16" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 397mm / 15.63" |
B | 412mm / 16.22" |
C | 206mm / 8.11" |
D | 357mm / 14.05" |
E | 88mm / 3.46" |
![]() |
ABOUT SPAL |
---|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More"> ![]() |
SKU | EF3610 |
---|---|
Barcode # | 9316042116229 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.088m |
Shipping Height | 0.412m |
Shipping Length | 0.397m |
