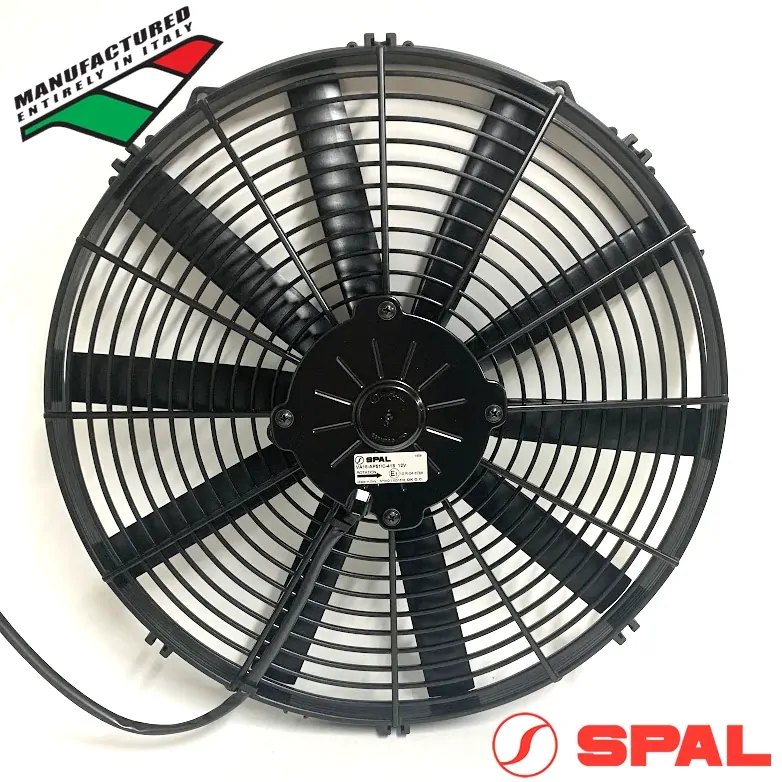

The VA18-AP51/C-41S (EF3510) 12v 16" SPAL Pusher Fan features a Straight Blade Design which can push up to 1600cfm / 2720m3/h.
Individually balanced for long life, the EF3510 16" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3510 16" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA18-AP51/C-41S |
U.S. Part # | 30101517 |
Voltage | 12V |
Flow Type | Pusher |
Blade Diam. | 16 inch (385mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 11 |
CFM | 1600 |
M3/H | 2720 |
Spec. Sheet | View Specifications |
EF3510 16" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 400mm / 15.75" |
B | 414mm / 16.3" |
C | 207mm / 8.15" |
D | 358mm / 14.09" |
E | 63mm / 2.48" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3510 |
---|---|
Barcode # | 9316042081022 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.063m |
Shipping Height | 0.414m |
Shipping Length | 0.400m |
