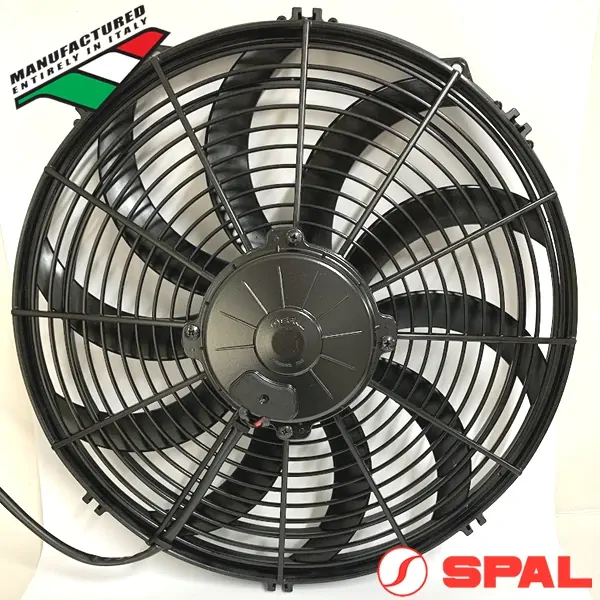

The VA08-AP71/LL-53S (EF3658) 12v 14" SPAL Pusher Fan features a Skew (curved) Blade Design which can push up to 1840cfm / 3120m3/h.
Individually balanced for long life, the EF3658 14" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3658 14" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA08-AP71/LL-53S |
U.S. Part # | 30102056 |
Voltage | 12V |
Flow Type | Pusher |
Blade Diam. | 14 inch (350mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 21.1 |
CFM | 1840 |
M3/H | 3120 |
Spec. Sheet | View Specs |
EF3658 14" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 366mm / 14.41" |
B | 382mm / 15.04" |
C | 191.5mm / 7.54" |
D | 332mm / 13.07" |
E | 87.6mm / 3.45" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3658 |
---|---|
Barcode # | 9316042413045 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.088m |
Shipping Height | 0.382m |
Shipping Length | 0.366m |
