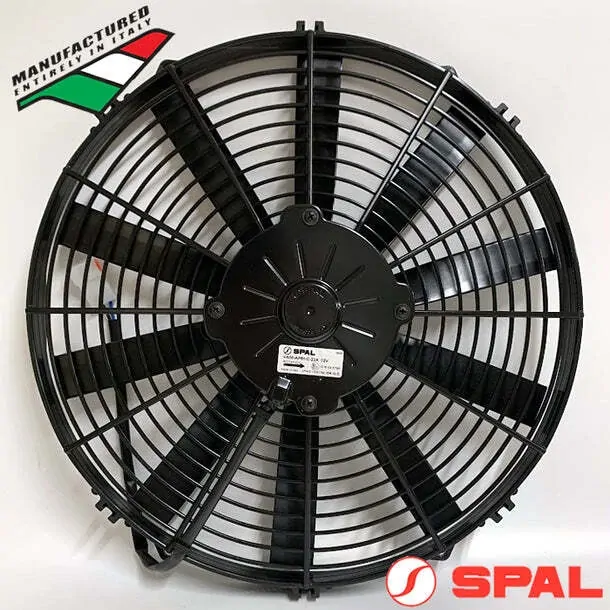

The VA08-AP51/C-23S (EF3548) 12v 14" SPAL Pusher Fan features a Straight Blade Design which can push up to 1217cfm / 2160m3/h.
Individually balanced for long life, the EF3548 14" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3548 14" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA08-AP51/C-23S |
U.S. Part # | 30101510 |
Voltage | 12V |
Flow Type | Pusher |
Blade Diam. | 14 inch (350mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 9.9 |
CFM | 1217 |
M3/H | 2160 |
Mounting Match | VA08-AP10/C-23S |
Spec. Sheet | View Specifications |
EF3548 14" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 367mm / 14.44" |
B | 382mm / 15.04" |
C | 191mm / 7.52" |
D | 331mm / 13.03" |
E | 63mm / 2.48" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3548 |
---|---|
Barcode # | 9316042111064 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.063m |
Shipping Height | 0.382m |
Shipping Length | 0.367m |
