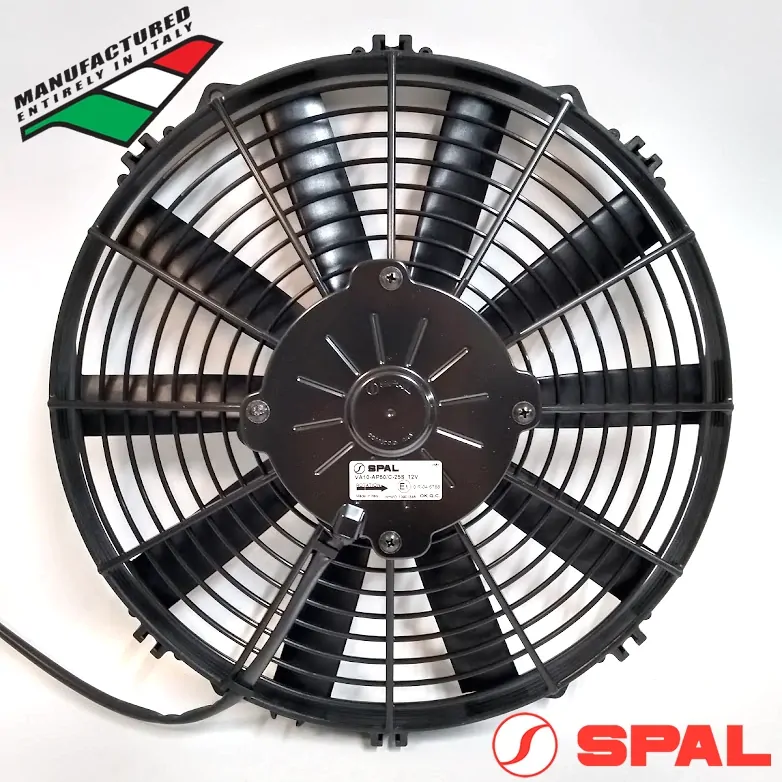

The VA10-AP50/C-25S (EF3524) 12v 12" SPAL Pusher Fan features a Straight Blade Design which can push up to 1009cfm / 1710m3/h.
Individually balanced for long life, the SPAL EF3524 12" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3524 12" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA10-AP50/C-25S |
U.S. Part # | 30101505 |
Voltage | 12V |
Flow Type | Pusher |
Blade Diam. | 12 inch (305mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 8.2 |
CFM | 1009 |
M3/H | 1710 |
Mounting Match | VA10-AP9/C-25S |
Spec. Sheet | View Specifications |
EF3524 12" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 321mm / 12.64" |
B | 336mm / 13.23" |
C | 168mm / 6.61" |
D | 292mm / 11.5" |
E | 63mm / 2.48" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3524 |
---|---|
Barcode # | 9316042089738 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.063m |
Shipping Height | 0.336m |
Shipping Length | 0.321m |
