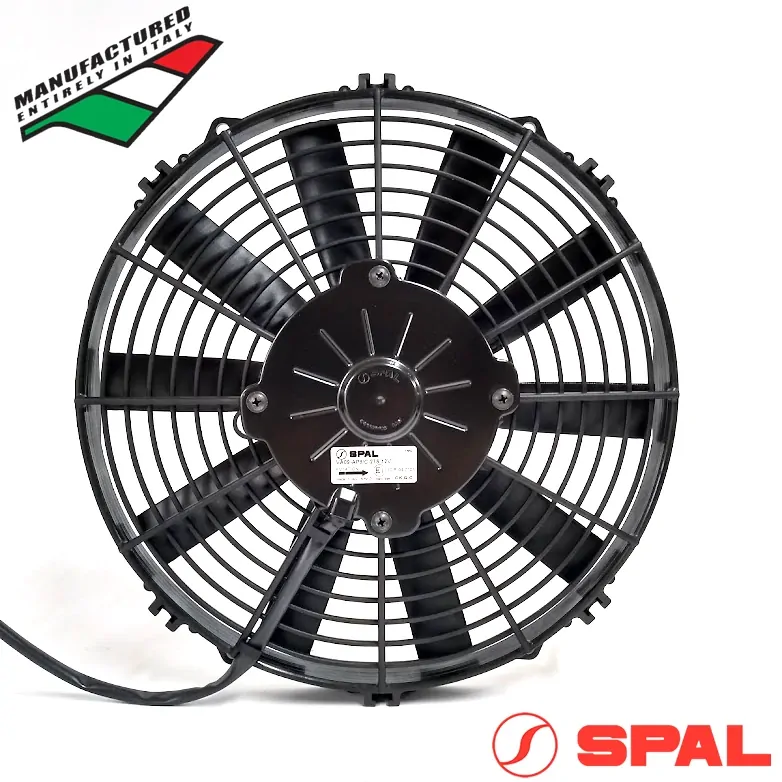

The VA09-AP8/C-27S (EF3505) 12v 11" SPAL Pusher Fan features a Straight Blade Design which can push up to 806cfm / 1370m3/h.
Individually balanced for long life, the EF3505 11" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3505 11" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA09-AP8/C-27S |
U.S. Part # | 30100365 |
Voltage | 12V |
Flow Type | Pusher |
Blade Diam. | 11 inch (280mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 6.8 |
CFM | 806 |
M3/H | 1370 |
Mounting Match | VA09-AP50/C-27S |
Spec. Sheet | View Specifications |
EF3505 11" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 294mm / 11.57" |
B | 310mm / 12.2" |
C | 155mm / 6.1" |
D | 269mm / 10.59" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3505 |
---|---|
Barcode # | 9316042080926 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.310m |
Shipping Length | 0.294m |
