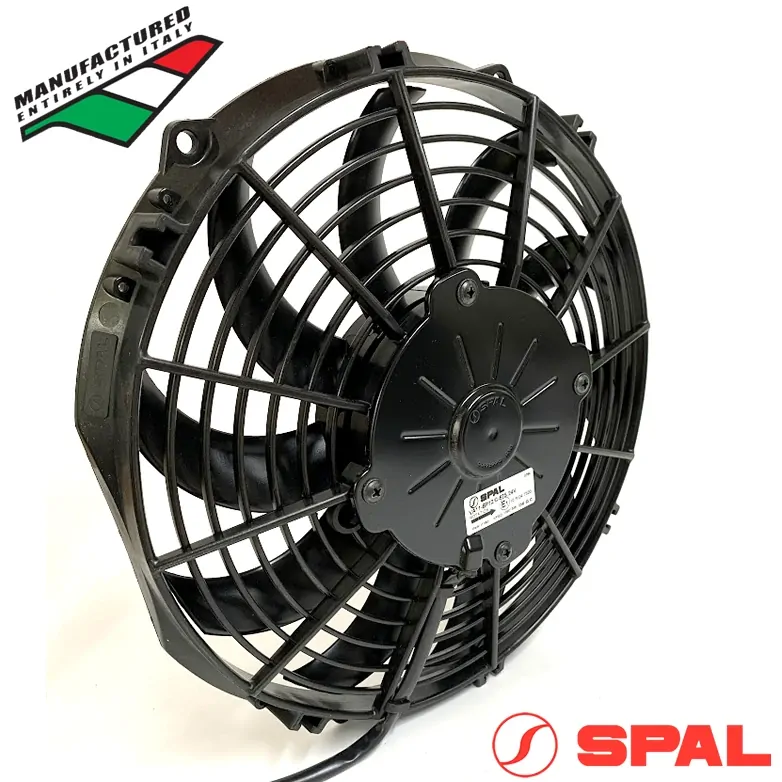

The VA11-BP12/C-57S (EF3539) 24v 10" SPAL Pusher Fan features a Skew (curved) Blade Design which can push up to 826cfm / 1400m3/h.
Individually balanced for long life, the EF3539 10" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3539 10" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA11-BP12/C-57S |
U.S. Part # | 30100456 |
Voltage | 24V |
Flow Type | Pusher |
Blade Diam. | 10 inch (255mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 3.7 |
CFM | 826 |
M3/H | 1400 |
Spec. Sheet | View Specifications |
EF3539 10" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 268mm / 10.55" |
B | 283.5mm / 11.16" |
C | 142mm / 5.59" |
D | 246.4mm / 9.7" |
E | 51mm / 2.01" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3539 |
---|---|
Barcode # | 9316042084146 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.051m |
Shipping Height | 0.284m |
Shipping Length | 0.268m |
