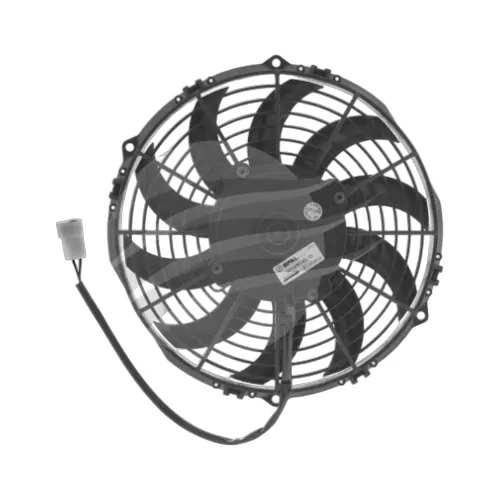

The VA11-AP8/C-57S (EF3529) 12v 10" SPAL Pusher Fan features a Skew (curved) Blade Design which can push up to 708cfm / 1200m3/h.
Individually balanced for long life, the EF3529 (EF3582 for LL version) 10" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3529 10" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA11-AP8/C-57S (Low Profile) VA11-AP8/LL-57S (Long Life) |
| U.S. Part # | 30100446 |
| Voltage | 12V |
| Flow Type | Pusher |
| Blade Diam. | 10 inch (255mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 5.8 |
| CFM | 708 |
| M3/H | 1200 |
| Spec. Sheet | View Specifications  |
| EF3529 10" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 269mm / 10.59" |
| B | 249mm / 9.8" |
| C | 142mm / 5.59" |
| D | 247mm / 9.72" |
| E | 52mm / 2.05" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3529 |
|---|---|
| Barcode # | 9316042089844 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.249m |
| Shipping Length | 0.269m |
SPAL Thermo Pusher Fan - 10" - 12V - 708 CFM - VA11-AP8/C-57S
