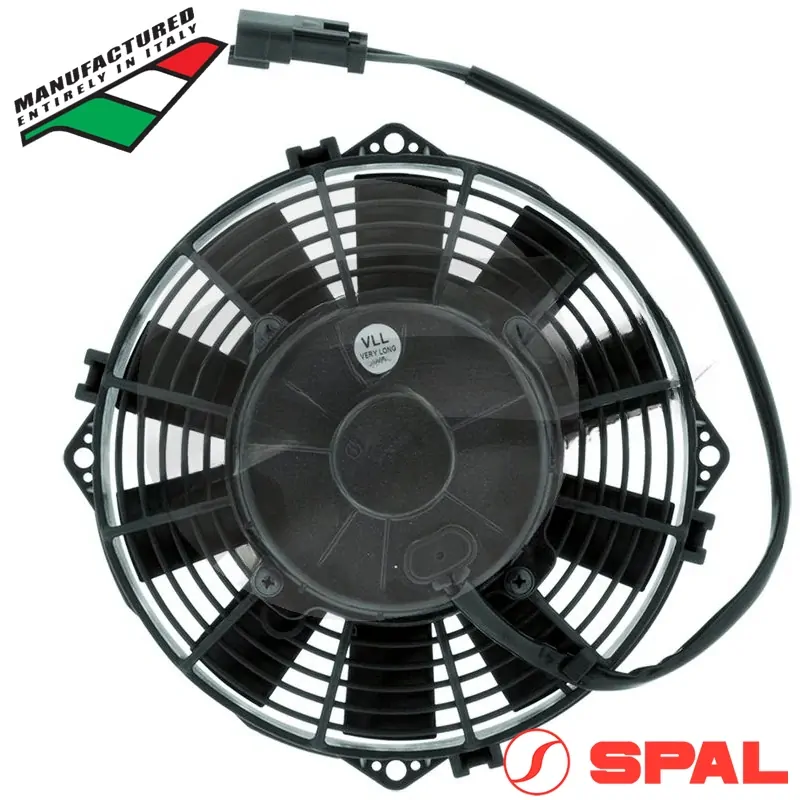

The VA14-BP7/VLL/T-34S (EF9629) 24v 8" SPAL Puller Fan features a Thermally Protected Motor and Straight Blade Design which can pull up to 384cfm / 650m3/h.
Individually balanced for long life, the SPAL VA14-BP7/VLL/T-34S 8" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF9629 8" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA14-BP7/VLL/T-34S |
| Motor Type | Very Long Life with Thermal Protection |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 7.5 inch (190.5mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 2.4 |
| CFM | 384 |
| M3/H | 650 |
| Spec. Sheet | View Specifications  *Specs for VA14-BP7/C-34S See below for VLL unit depth info |
| EF9629 8" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 202mm / 7.95" |
| B | 210mm / 8.27" |
| C | 151mm / 5.94" |
| D | 151mm / 5.94" |
| E | 51mm / 2.00" (allow 76mm/3" for VLL motor) |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. title=" More" href=" ?filter.p.tag=SPAL+Accessory">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF9629 |
|---|---|
| Barcode # | 9316042271355 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.051m |
| Shipping Height | 0.210m |
| Shipping Length | 0.202m |
