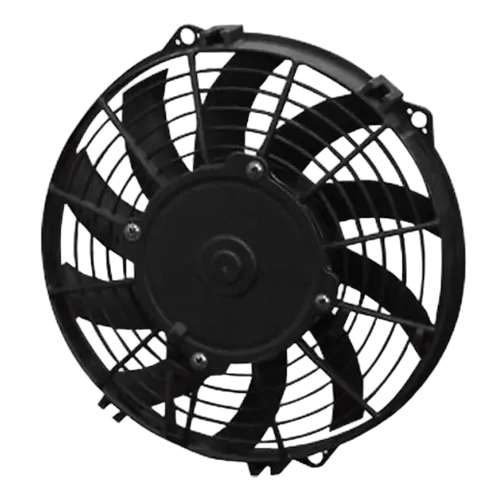

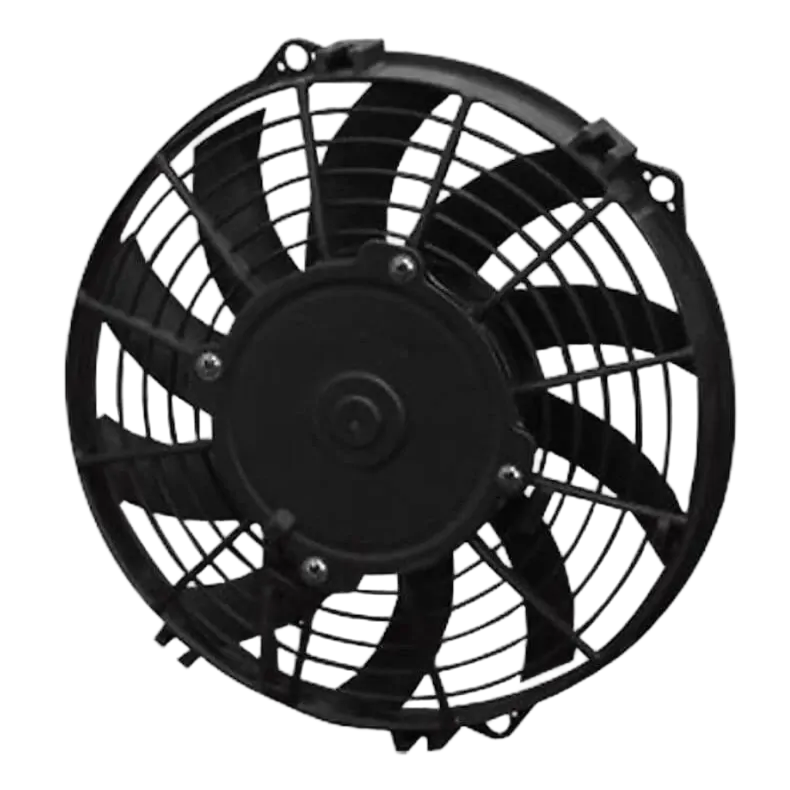

The VA18-AP71/LL-59A (EF3534) 12v 16" SPAL Puller Fan features a Skew (curved) Blade Design which can pull up to 2018cfm / 3430m3/h.
Individually balanced for long life, the EF3534 16" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3534 16" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA18-AP71/LL-59A |
U.S. Part # | 30102049 |
Voltage | 12V |
Flow Type | Puller |
Blade Diam. | 16 inch (385mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 19.5 |
CFM | 2018 |
M3/H | 3430 |
Spec. Sheet | View Specifications |
EF3534 16" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 400mm / 15.75" |
B | 414mm / 16.29" |
C | 207mm / 8.15" |
D | 358mm / 14.09" |
E | 88mm / 3.46" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3534 |
---|---|
Barcode # | 9316042082364 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.088m |
Shipping Height | 0.414m |
Shipping Length | 0.400m |
