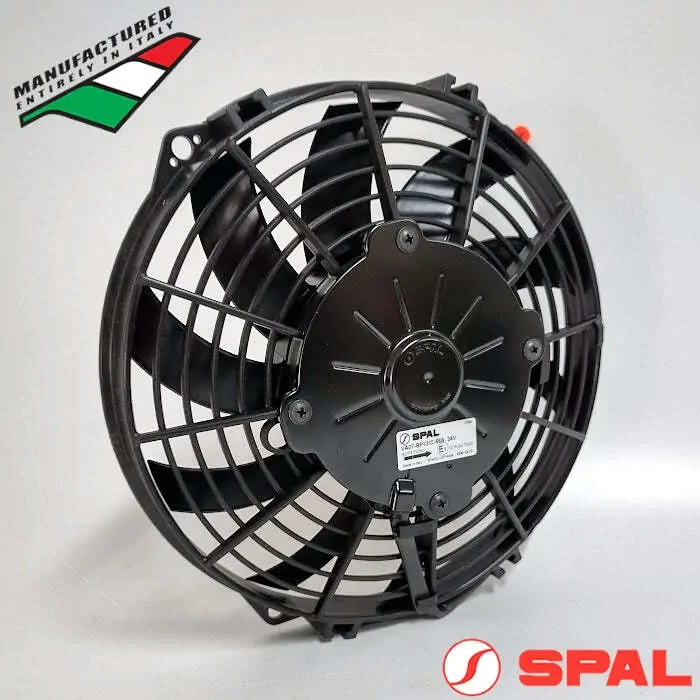

The VA07-BP12/C-58A (EF3536) 24v 9" SPAL Puller Fan features a Skew (curved) Blade Design which can pull up to 688cfm / 1170m3/h.
Individually balanced for long life, the EF3536 9" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3536 9" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA07-BP12/C-58A |
U.S. Part # | 30100336 |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 9 inch (225mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 11.8 |
CFM | 688 |
M3/H | 1170 |
Spec. Sheet | View Specifications |
EF3536 9" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 246mm / 9.69" |
B | 246mm / 9.69" |
C | 139mm / 5.47" |
D | 206mm / 8.11" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3536 |
---|---|
Barcode # | 9316042089875 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.246m |
Shipping Length | 0.246m |
