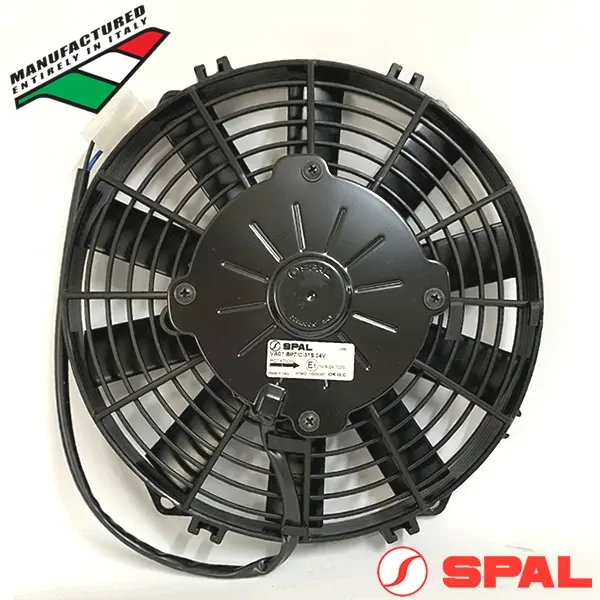

The VA07-BP7/C-31A (EF3511) 24v 9" SPAL Puller Fan features a Straight Blade Design which can pull up to 631cfm / 1070m3/h.
Individually balanced for long life, the EF3511 9" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3511 9" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA07-BP7/C-31A |
U.S. Part # | 30100344 |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 9 inch (225mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 4.0 |
CFM | 631 |
M3/H | 1070 |
Spec. Sheet | View Specifications |
EF3511 9" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 247mm / 9.72" |
B | 247mm / 9.72" |
C | 139mm / 5.47" |
D | 206mm / 8.11" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3511 |
---|---|
Barcode # | 9316042080865 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.247m |
Shipping Length | 0.247m |
