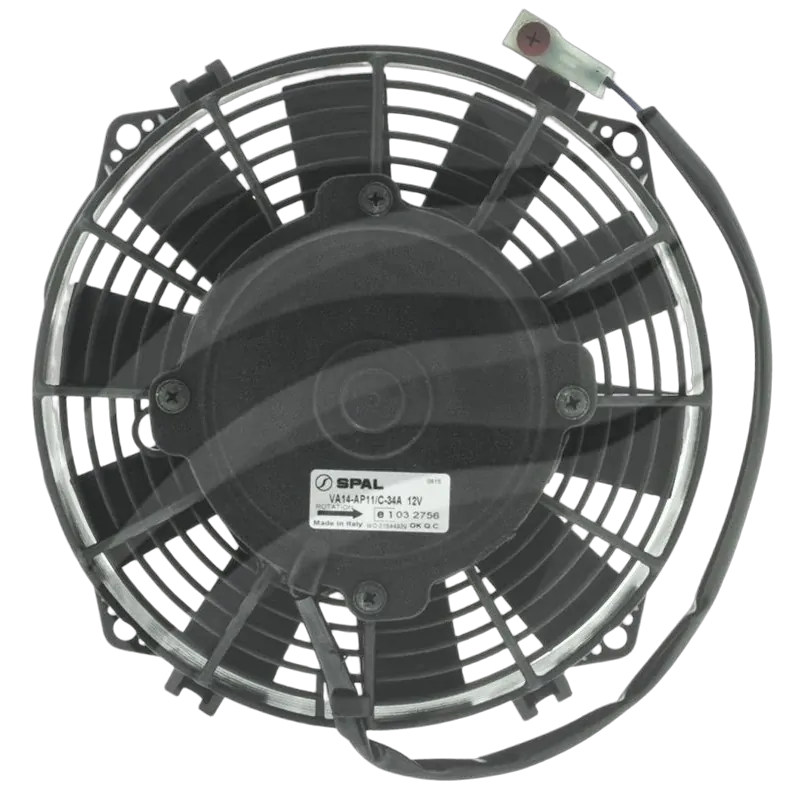

The VA14-AP11/C-34A (EF3573) 12v 7.5" SPAL Puller Fan features a Straight Blade Design which can pull up to 430cfm / 730m3/h.
Individually balanced for long life, the EF3573 7.5" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3573 7.5" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA14-AP11/C-34A |
| U.S. Part # | 30100394 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 7.5 inch (190.5mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 6.7 |
| CFM | 430 |
| M3/H | 730 |
| Mounting Match | VA14-AP7/C-34A |
| Spec. Sheet | View Specifications  |
| EF3573 7.5" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 202mm / 7.95" |
| B | 209mm / 8.23" |
| C | 151mm / 5.93" |
| D | 151mm / 5.93" |
| E | 51mm / 2.01" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3573 |
|---|---|
| Barcode # | 9316042402957 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.051m |
| Shipping Height | 0.209m |
| Shipping Length | 0.202m |

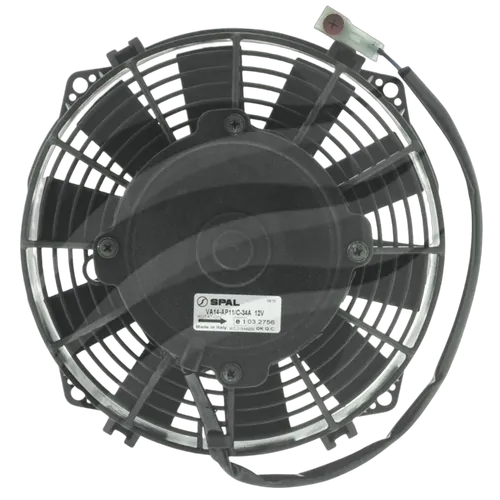

SPAL Thermo Puller Fan - 7.5" - 12V - 430CFM - VA14-AP11/C-34A
