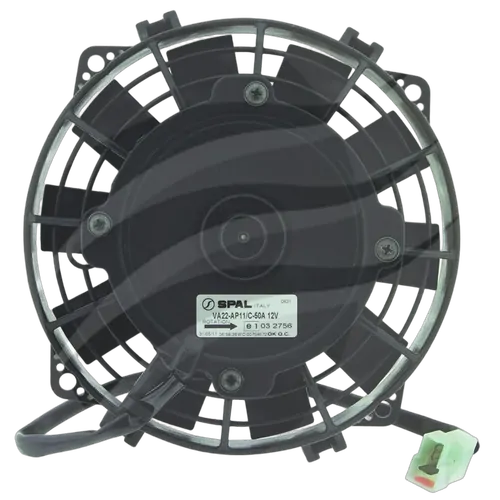

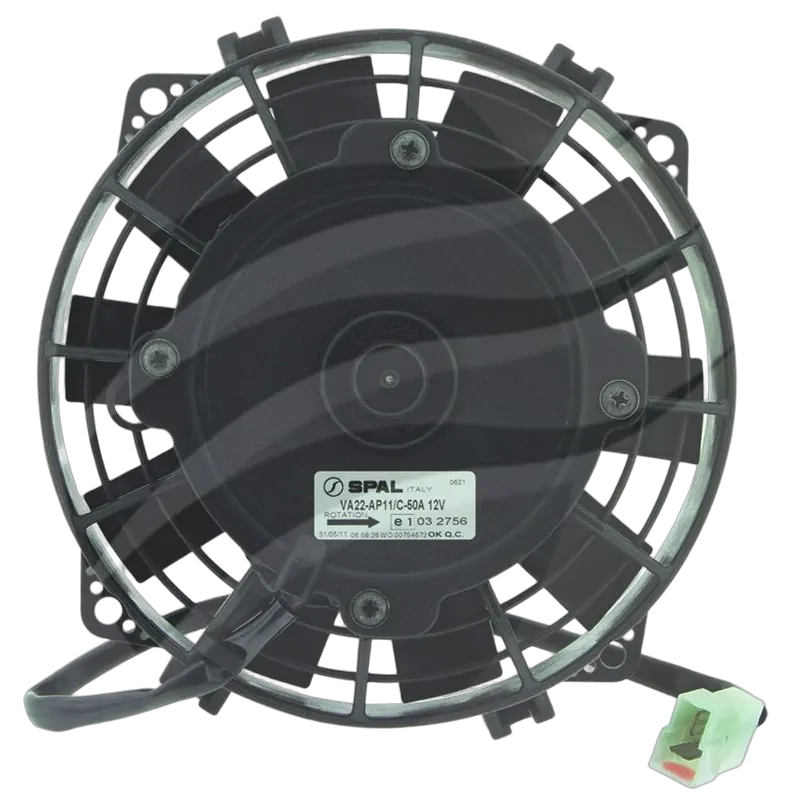

The VA22-AP11/C-50A (EF3602) 12v 6.5" SPAL Puller Fan features a Straight Blade Design which can pull up to 313cfm / 550m3/h.
Individually balanced for long life, the EF3602 6.5" SPAL Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3602 6.5" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA22-AP11/C-50A |
U.S. Part # | 30100402 |
Voltage | 12V |
Flow Type | Puller |
Blade Diam. | 6.5 inch (165mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 5.0 |
CFM | 313 |
M3/H | 550 |
Spec. Sheet | View Specifications |
EF3602 6.5" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 178mm / 7.0" |
B | 184mm / 7.24" |
C | 135mm / 5.31" |
D | 135mm / 5.31" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3602 |
---|---|
Barcode # | 9316042322026 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.184m |
Shipping Length | 0.178m |
