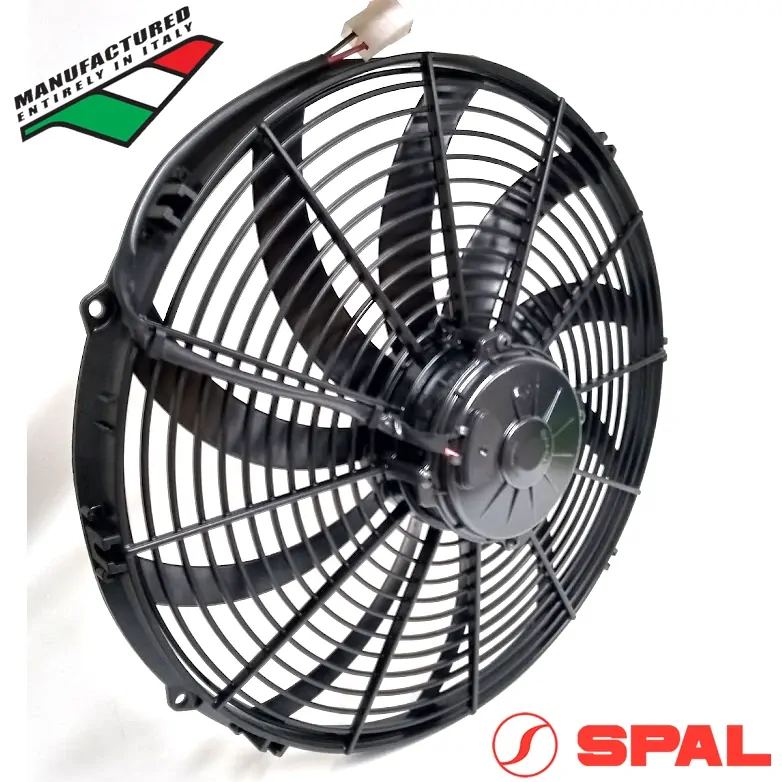

The VA18-BP71/LL-59A (EF3544) 24v 16" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 1776cfm / 3018m3/h.
The EF3544 16" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3544 16" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA18-BP71/LL-59A |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 16 inch (406mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 9.1 |
CFM | 2177 |
M3/H | 3690 |
Spec. Sheet | View Specifications |
EF3544 16" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 397mm / 15.65" |
B | 412mm / 16.22" |
C | 206mm / 8.11" |
D | 357mm / 14.05" |
E | 88mm / 3.45" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3544 |
---|---|
Barcode # | 9316042089790 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.088m |
Shipping Height | 0.412m |
Shipping Length | 0.397m |
