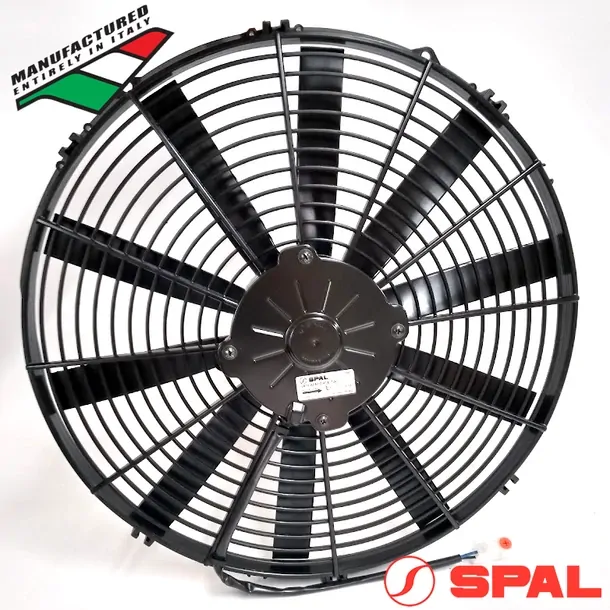

The VA18-BP51/C-41A (EF3520) 24v 16" SPAL Puller Fan is a Medium Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 1624cfm / 2760m3/h.
The EF3520 16" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3520 16" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA18-BP51/C-41A |
| U.S. Part # | 30101817 |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 16 inch (385mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 5.4 |
| CFM | 1624 |
| M3/H | 2760 |
| Spec. Sheet | View Specifications  |
| EF3520 16" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 397mm / 15.62" |
| B | 412mm / 16.22" |
| C | 206mm / 8.11" |
| D | 357mm / 14.05" |
| E | 62mm / 2.44" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3520 |
|---|---|
| Barcode # | 9316042081039 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.062m |
| Shipping Height | 0.412m |
| Shipping Length | 0.397m |
SPAL Thermo Puller Fan - 16" - 24V - 1624 CFM - VA18-BP51/C-41A
