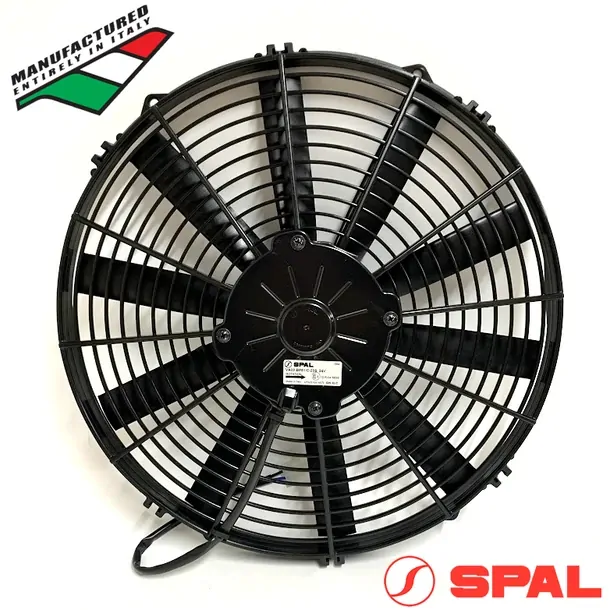

The VA08-BP51/C-23A (EF3549) 24v 14" SPAL Puller Fan is a Medium Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 1295cfm / 2200m3/h.
The EF3549 14" Fan is individually balanced for long life and features a fully sealed water dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3549 14" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA08-BP51/C-23A |
U.S. Part # | 30101806 |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 14 inch (350mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 5.0 |
CFM | 1295 |
M3/H | 2200 |
Spec. Sheet | View Specifications |
EF3549 14" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 366mm / 14.41" |
B | 382mm / 15.04" |
C | 191mm / 7.51" |
D | 331mm / 12.99" |
E | 62mm / 2.44" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3549 |
---|---|
Barcode # | 9316042089714 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.062m |
Shipping Height | 0.382m |
Shipping Length | 0.366m |
