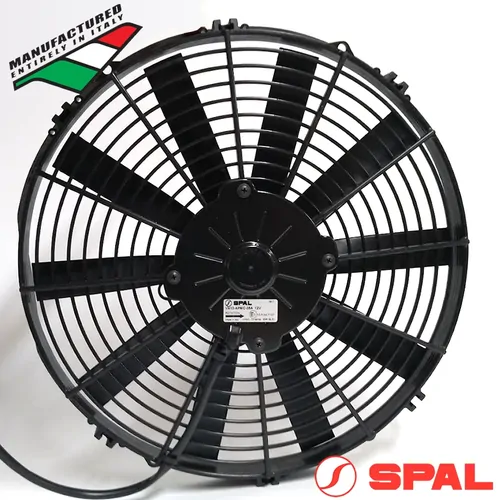

The VA13-AP9/C-35A (EF3507) 12v 13" SPAL Puller Fan is a Low Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 959cfm / 1603m3/h.
The EF3507 13" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3507 13" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA13-AP9/C-35A |
U.S. Part # | 30100398 |
Voltage | 12V |
Flow Type | Puller |
Blade Diam. | 13 inch (330mm) |
Blade Type | Straight |
Shroud Type | Finger Guard |
Amps | 7.5 |
CFM | 959 |
M3/H | 1630 |
Mounting Match | VA13-AP51/C-35A |
Spec. Sheet | View Specifications |
EF3507 13" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 346mm/ 13.6" |
B | 360mm / 14.17" |
C | 180mm / 7.09" |
D | 312mm / 12.28" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3507 |
---|---|
Barcode # | 9316042080971 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.360m |
Shipping Length | 0.346m |
