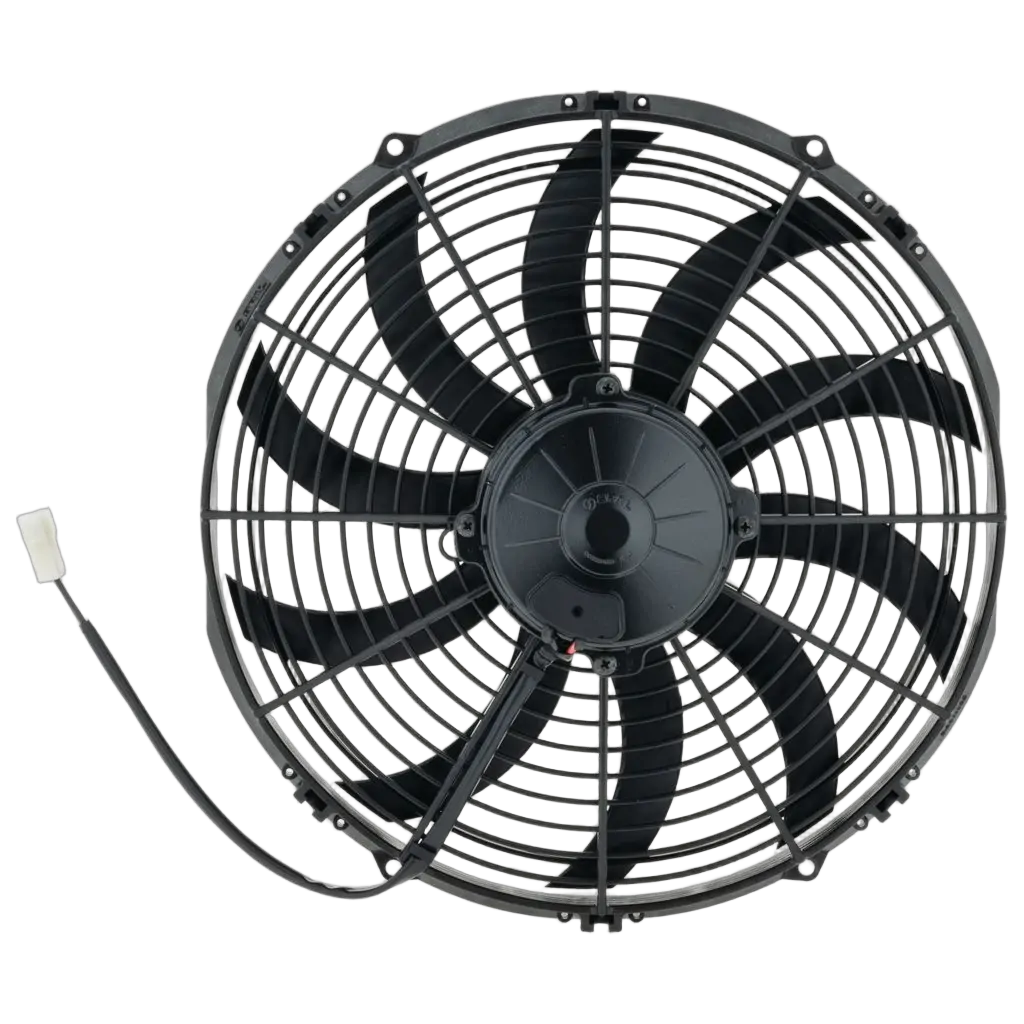

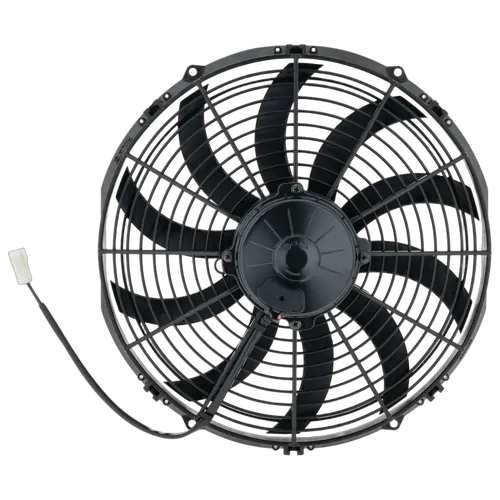

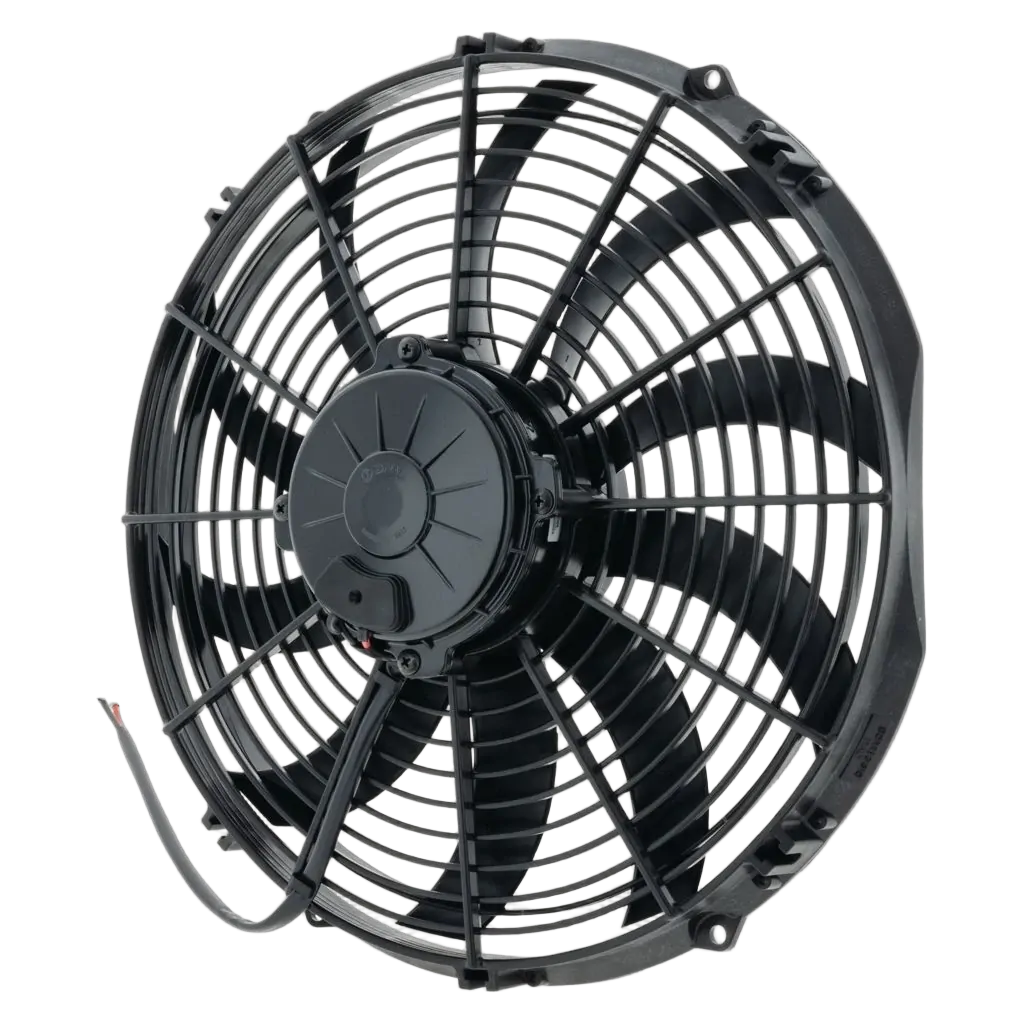

The VA13-AP70/LL-63A (EF3588) 12v 13" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 1710cfm / 2905m3/h.
The EF3588 13" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3588 13" SPAL THERMO FAN DETAILS | |
---|---|
Spal Fan Model # | VA13-AP70/LL-63A |
U.S. Part # | 30102044 |
Voltage | 12V |
Flow Type | Puller |
Blade Diam. | 13 inch (330mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 20 |
CFM | 1710 |
M3/H | 2905 |
Spec. Sheet | View Specifications |
EF3588 13" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 346mm / 13.62" |
B | 360mm / 14.17" |
C | 180mm / 7.09" |
D | 312mm / 12.28" |
E | 87mm / 3.43" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3588 |
---|---|
Barcode # | 9316042571691 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.087m |
Shipping Height | 0.360m |
Shipping Length | 0.346m |
