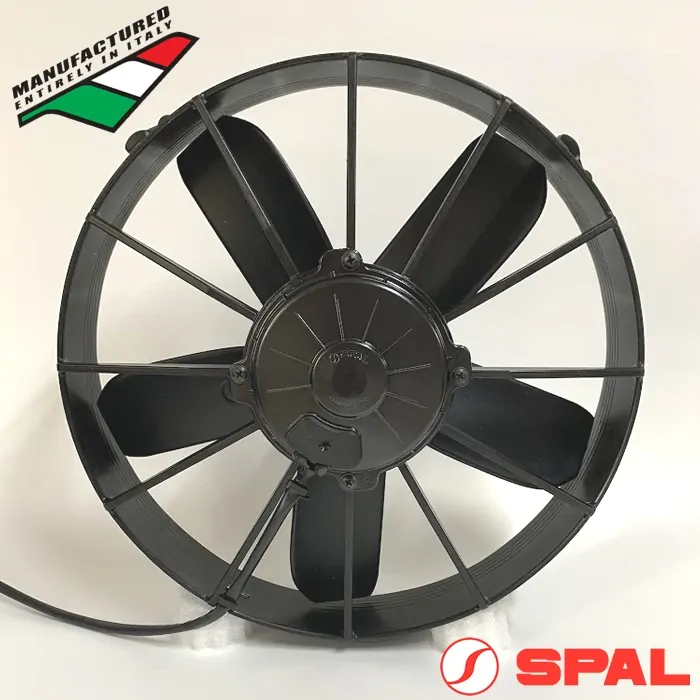

The VA01-BP70/LL-36A (EF3546) 24v 12" SPAL Puller Fan is a High Output Thermo Fan featuring an Open Shroud and a Straight Blade Design which can pull up to 1711cfm / 2900m3/h.
The EF3546 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3546 12" SPAL THERMO FAN DETAILS | |
---|---|
Spal Fan Model # | VA01-BP70/LL-36A |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 12 inch (305mm) |
Blade Type | Straight |
Shroud Type | Open Shroud |
Amps | 7.4 |
CFM | 1711 |
M3/H | 2900 |
Spec. Sheet | View Specifications |
EF3546 12" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 331mm / 13.03" |
B | 330mm / 12.99" |
C | 238mm / 9.37" |
D | 238mm / 9.37" |
E | 95mm / 3.74" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3546 |
---|---|
Barcode # | 9316042111040 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.095m |
Shipping Height | 0.330m |
Shipping Length | 0.331m |
