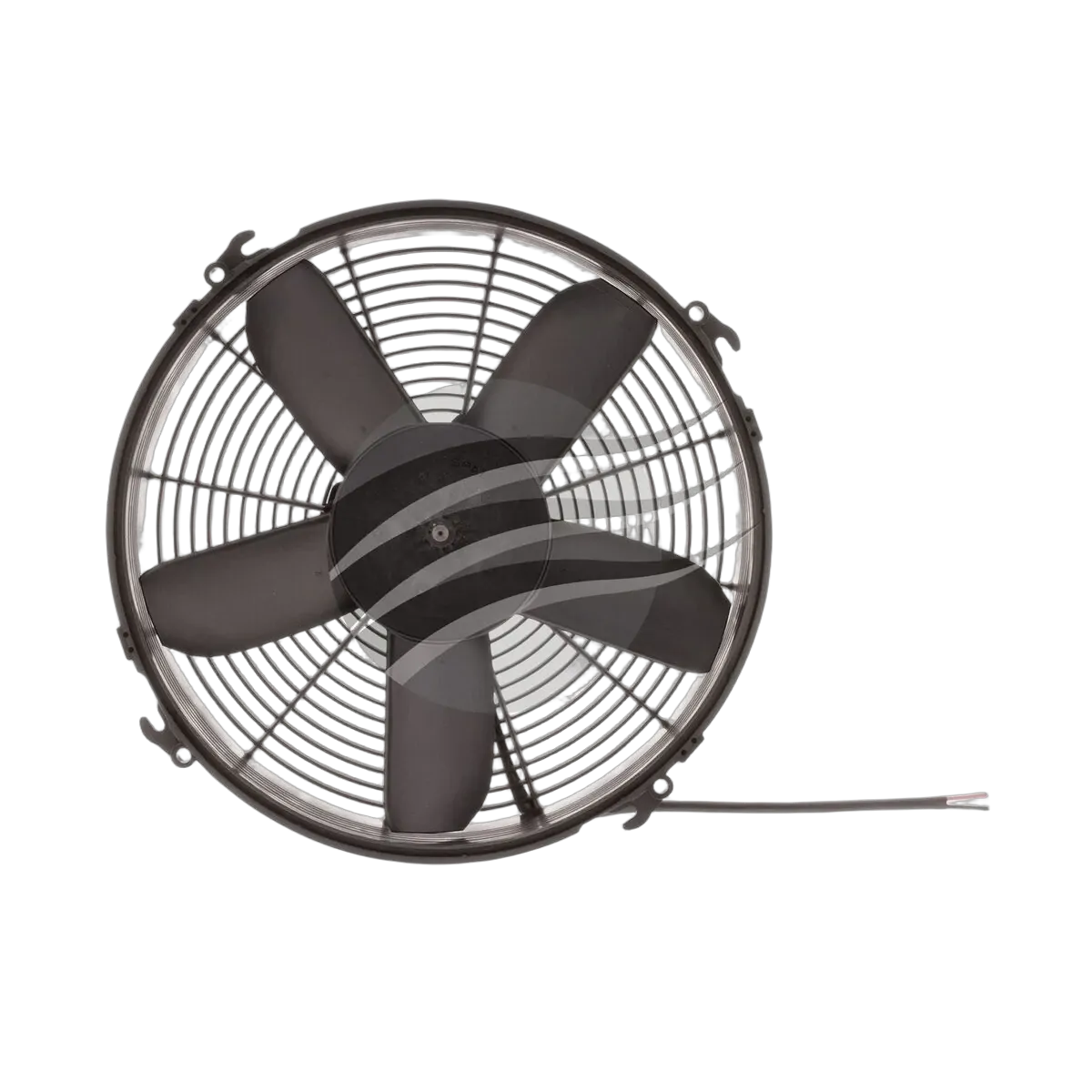

The VA34-BP70/LL-36A (EF3646) 24v 12" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 1522cfm / 2580m3/h.
The EF3646 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3646 12" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA34-BP70/LL-36A |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 8.2 |
| CFM | 1522 |
| M3/H | 2580 |
| Spec. Sheet | View Specifications  |
| EF3646 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 331mm / 13.03" |
| B | 331mm / 13.03" |
| C | 240mm / 9.44" |
| D | 240mm / 9.44" |
| E | 94.7mm / 3.73" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3646 |
|---|---|
| Barcode # | 9316042238365 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.331m |
| Shipping Length | 0.331m |

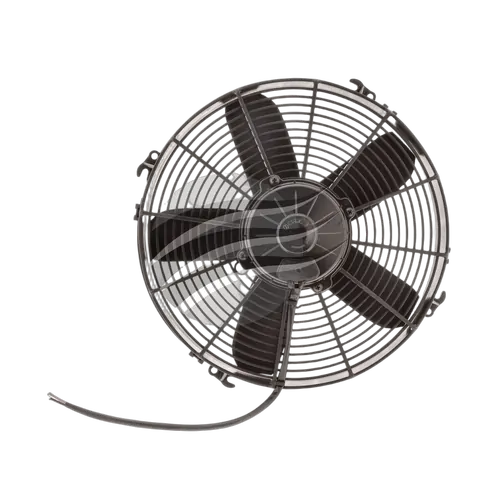

SPAL Thermo Puller Fan - 12" - 24V - 1522 CFM - VA34-BP70/LL-36A
