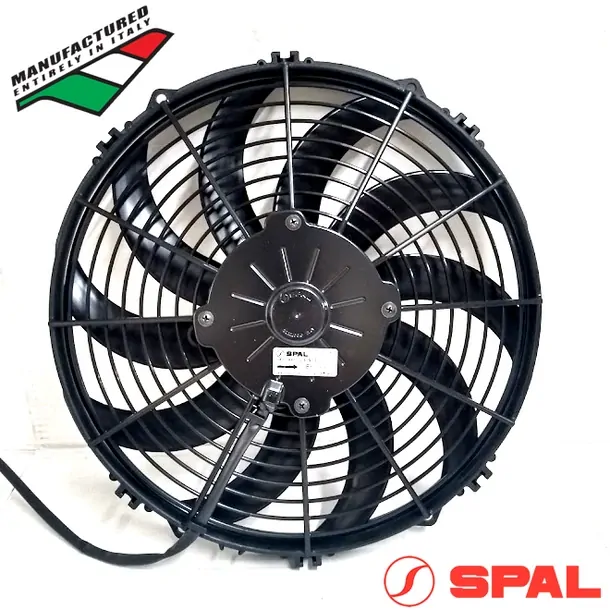

The VA10-BP10/C-61A (EF3542) 24v 12" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 1059cfm / 1800m3/h.
The EF3542 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3542 12" SPAL THERMO FAN DETAIL | |
---|---|
SPAL Fan Model # | VA10-BP10/C-61A |
U.S. Part # | 30101565 |
Voltage | 24V |
Flow Type | Puller |
Blade Diam. | 12 inch (305mm) |
Blade Type | Skew |
Shroud Type | Finger Guard |
Amps | 3.5 |
CFM | 1059 |
M3/H | 1800 |
Spec. Sheet | View Specifications |
EF3542 12" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 319mm / 12.56" |
B | 335mm / 13.19" |
C | 168mm / 6.61" |
D | 291mm / 11.46" |
E | 52mm / 2.05" |
ABOUT SPAL |
---|
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation. All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
SKU | EF3542 |
---|---|
Barcode # | 9316042089820 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.052m |
Shipping Height | 0.335m |
Shipping Length | 0.319m |
