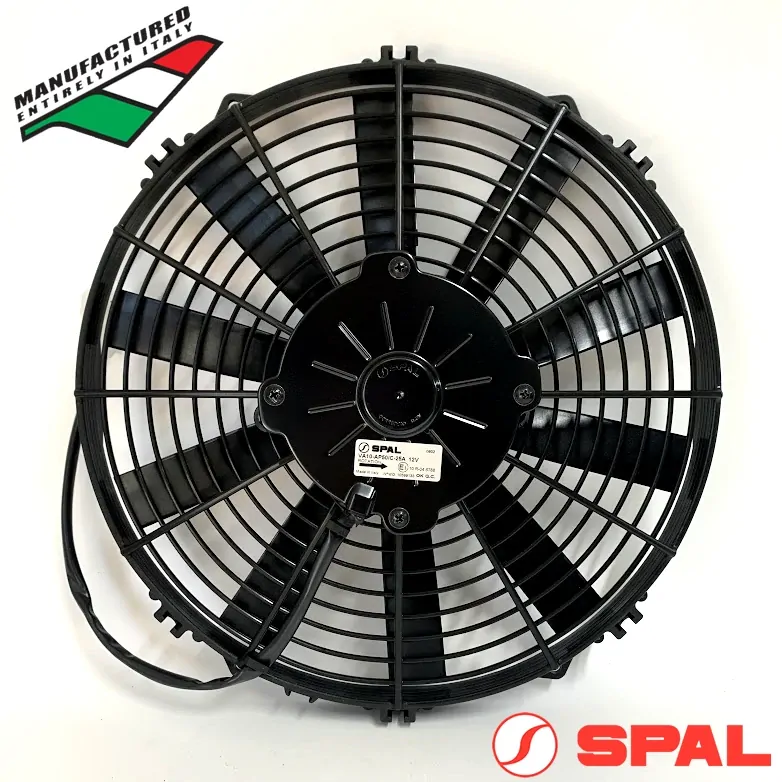

The VA10-AP50/C-25A (EF3506) 12v 12" SPAL Puller Fan features a Straight Blade Design which can pull up to 1097cfm / 1860m3/h.
Individually balanced for long life, the EF3506 12" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3506 12" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA10-AP50/C-25A |
| U.S. Part # | 30101504 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 10.0 |
| CFM | 1097 |
| M3/H | 1860 |
| Mounting Match | VA10-AP50/C-61A VA10-AP10/C-61A VA10-AP9/C-25A |
| Spec. Sheet | View Specifications  |
| EF3506 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 321mm / 12.64" |
| B | 336mm / 13.23" |
| C | 168mm / 6.61" |
| D | 292mm / 11.5" |
| E | 63mm / 2.48" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3506 |
|---|---|
| Barcode # | 9316042080957 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.063m |
| Shipping Height | 0.336m |
| Shipping Length | 0.321m |
