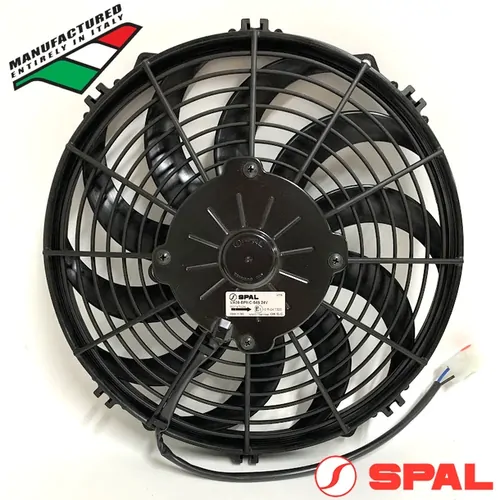

The VA09-BP8/C-54A (EF3540) 24v 11" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 912cfm / 1550m3/h.
The EF3540 11" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3540 11" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA09-BP8/C-54A |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 11 inch (280mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 3.7 |
| CFM | 912 |
| M3/H | 1550 |
| Spec. Sheet | View Specifications  |
| EF3540 11" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 294mm / 11.57" |
| B | 310mm / 12.2" |
| C | 155mm / 6.1" |
| D | 268mm / 10.55" |
| E | 52mm / 2.05" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3540 |
|---|---|
| Barcode # | 9316042089868 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.310m |
| Shipping Length | 0.294m |
SPAL Thermo Puller Fan - 11" - 24V - 912 CFM - VA09-BP8/C-54A
