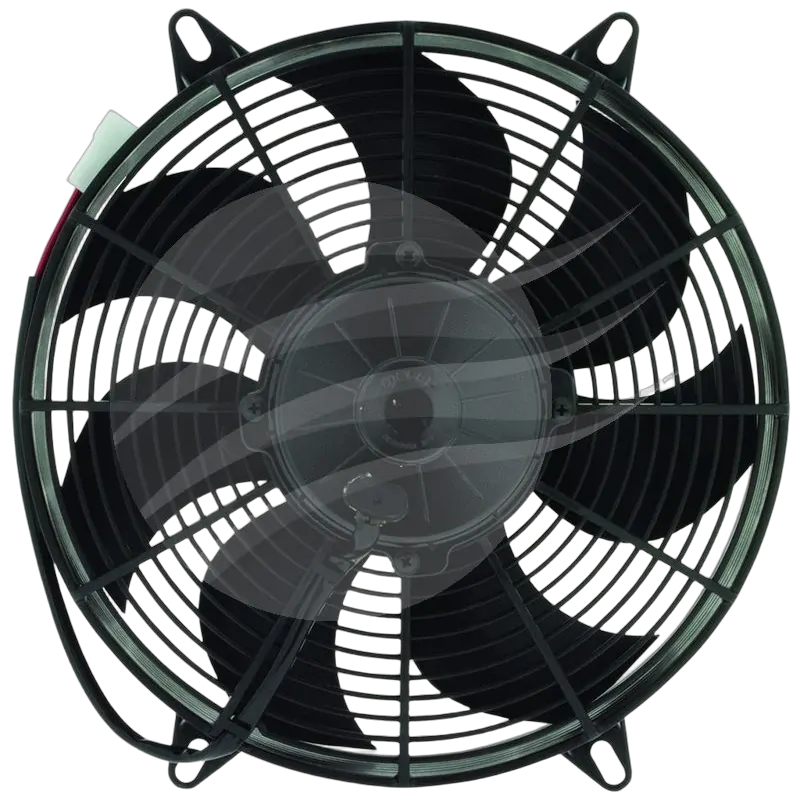

The VA59-BP70/LL-68A (EF3637) 24v 11" SPAL Puller Fan is a High-Output Thermo Fan featuring a Finger Guard Shroud and a Curved Blade Design which can pull up to 1499cfm / 2540m3/h.
The EF3637 11" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3637 11" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA59-BP70/LL-68A |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 11 inch (280mm) |
| Blade Type | Skew (Curved) |
| Shroud Type | Finger Guard |
| Amps | 7.0 |
| CFM | 1499 |
| M3/H | 2540 |
| Spec. Sheet | View Specifications  |
| EF3637 11" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 303mm / 11.93" |
| B | 299mm / 11.77" |
| C | 172.6mm / 6.79" |
| D | 315mm / 12.4" |
| E | 94.7mm / 3.73" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3637 |
|---|---|
| Barcode # | 9316042300208 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.299m |
| Shipping Length | 0.303m |

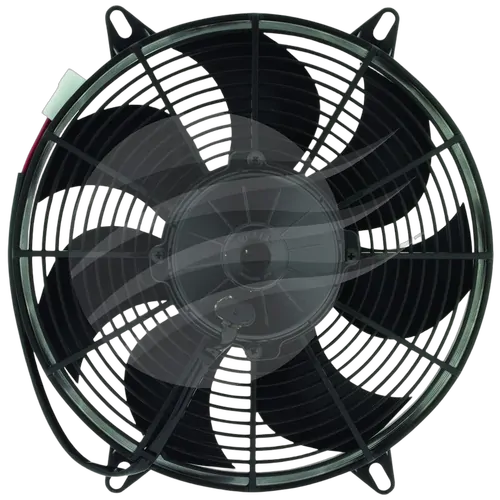

SPAL Thermo Puller Fan - 11" -24V - 1499 CFM - VA59-BP70/LL-68A
