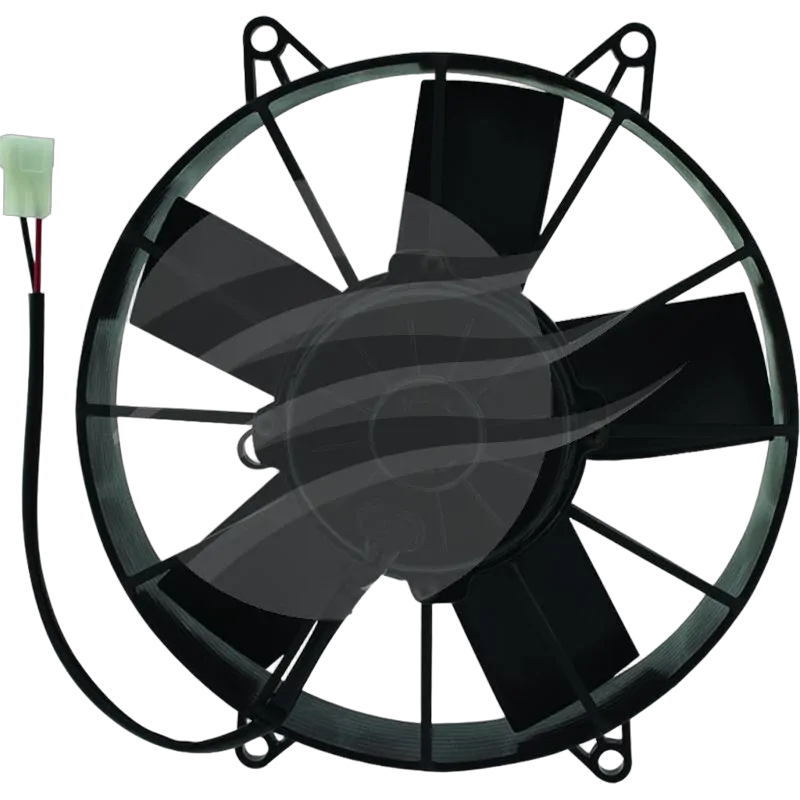

The VA15-BP70/LL-39A (EF3615) 24v 10" SPAL Puller Fan is a High-Output Thermo Fan featuring aggressive Paddle Blade Design which can pull up to 1174cfm / 1990m3/h.
The EF3615 10" Fan is individually balanced for long life and features a fully sealed water & dust-proof long-life motor of superior quality and backed with a 3-year manufacturers .
| EF3615 10" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA15-BP70/LL-39A |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 10 inch (255mm) |
| Blade Type | Straight Paddle |
| Shroud Type | Open Shroud |
| Amps | 5.7 |
| CFM | 1174 |
| M3/H | 1990 |
| Spec. Sheet | View Specifications  |
| EF3615 10" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 269mm / 10.59" |
| B | 303mm / 11.93" |
| C | 145mm / 5.71" |
| D | 288mm / 11.26" |
| E | 95.4mm / 3.76" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3615 |
|---|---|
| Barcode # | 9316042320862 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.303m |
| Shipping Length | 0.269m |

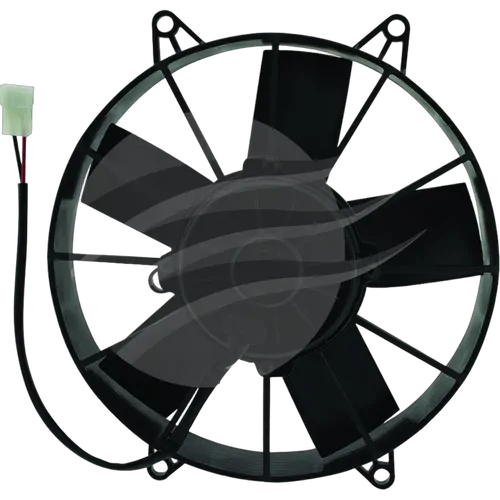

SPAL Thermo Puller Fan - 10" - 24V - 1174 CFM - VA15-BP70/LL-39A
More infoMake 4 payments of $79.75 over 8 weeks and get it now!
