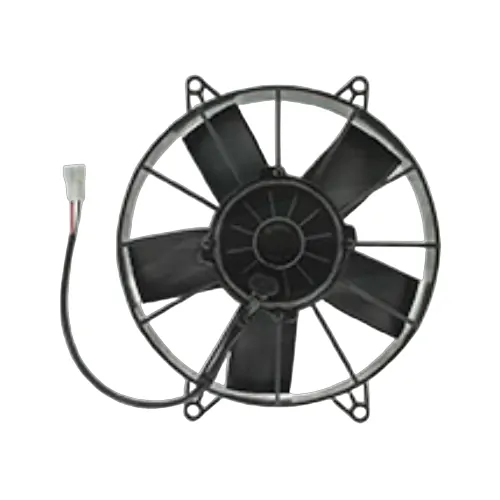

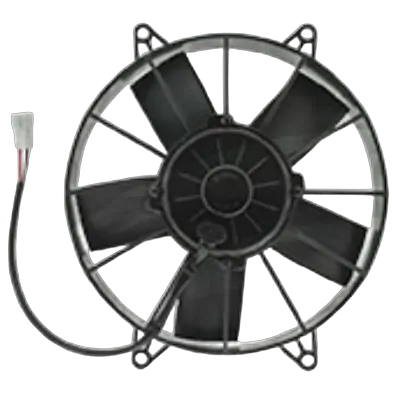

The VA15-AP70/LL-39A (EF9631) 12v 10" SPAL Puller Fan is a High-Output Thermo Fan with aggressive Paddle Blade Design, rated up to 1103cfm / 1870m3/h.
The EF9631 10" Fan is individually balanced for long life and features a fully sealed water & dust-proof long-life motor of superior quality and backed with a 3-year manufacturers .
| EF9631 10" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA15-AP70/LL-39A |
| US Part # | 30102057 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 10 inch (255mm) |
| Blade Type | Straight Paddle |
| Shroud Type | Open Shroud |
| Amps | 10.5 |
| CFM | 1103 |
| M3/H | 1870 |
| Spec. Sheet | View Specifications  |
| Included | SPAL Fan w/Standard Connector See SPAL Accessories for Mounts etc. |
| EF9631 10" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 145mm / 5.71" |
| B | 303mm / 11.93" |
| C | 269.2mm / 10.59" |
| D | 286mm / 11.26" |
| E | 95.4mm / 3.76" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF9631 |
|---|---|
| Barcode # | 9316042352733 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.303m |
| Shipping Length | 0.145m |
