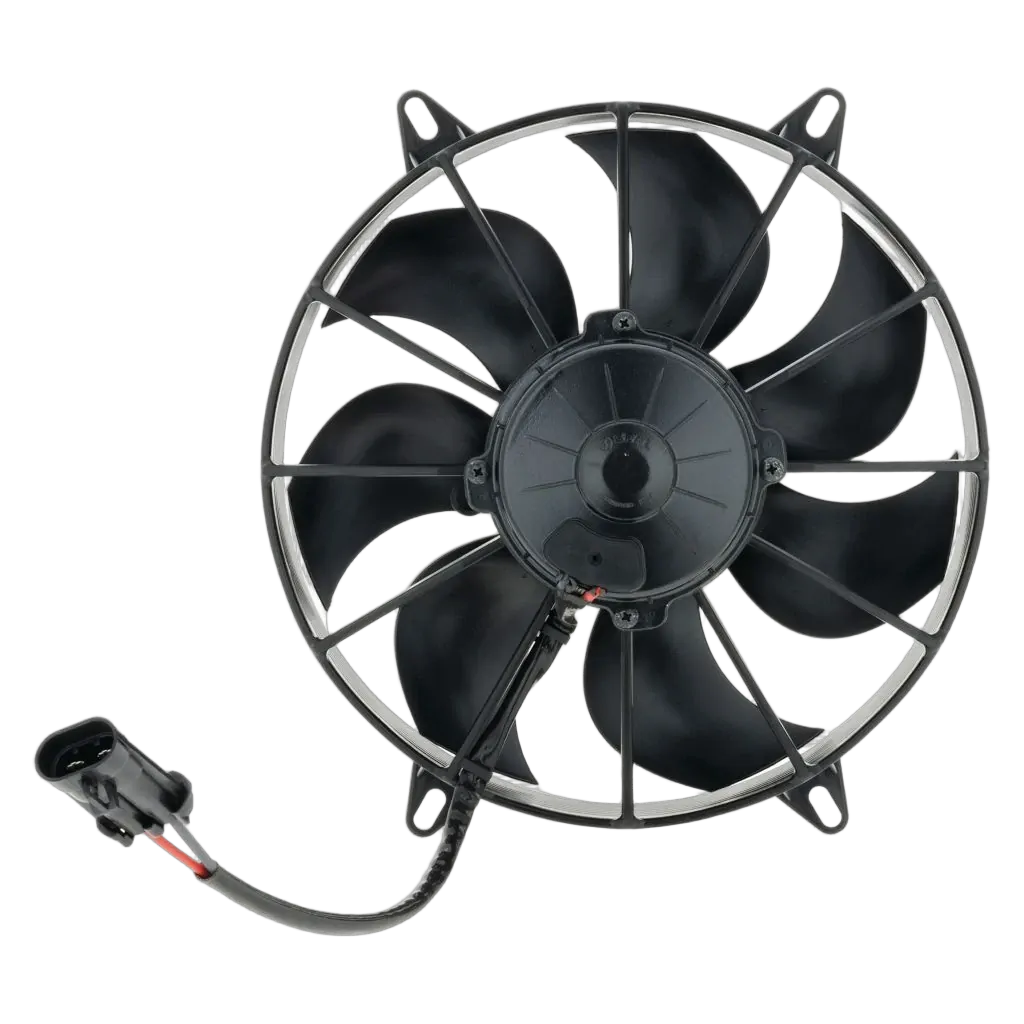

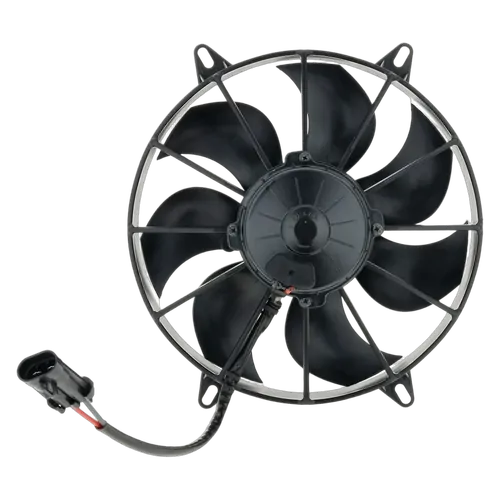

The VA03-AP90/LL-68A (EF3587) 12vSPAL Puller Fan is a high-output thermo fan suitable for a wide array of uses from high-performance auto cooling to industrial and other commercial applications.
The EF3587 11" SPAL Fan features an aggressive curved paddle blade design which can pull up to 1605cfm / 2720m3/h. Individually balanced for long life, this fan features a fully sealed IP68 water & dust-proof, long-life motor. title=" More" href=" ">

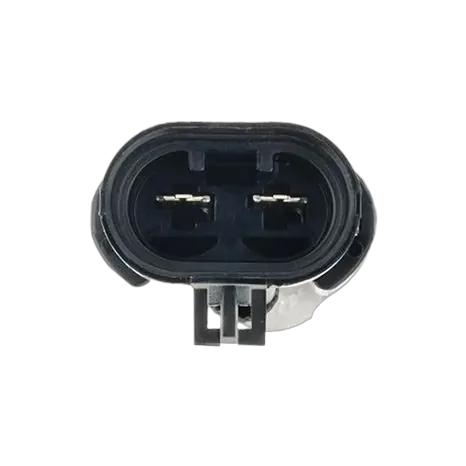

Please note: The EF3587 SPAL fan has a Delphi Metri-Pack 630 connector.
EF3587 11" SPAL THERMO FAN DETAILS | |
---|---|
SPAL Fan Model # | VA03-AP90/LL-68A |
U.S. Part # | 30102800 |
Motor Type | Long-Life IP68 |
Voltage | 12V |
Flow Type | Puller |
Blade Diam. | 11 Inch (280mm) |
Blade Type | Curved / Skew Blade |
Shroud Type | Semi-Open Shroud |
Amps | 24.5 |
CFM | 1605 |
M3/H | 2720 |
Spec. Sheet | VA03-AP90/LL-68A ![]() |
3-Year Manufacturers |
|
Included | SPAL Fan w/Delphi Metri-Pack 630 connector See SPAL Accessories for Mounts etc. |
EF3587 11" SPAL THERMO FAN DIMENSIONS | |
---|---|
A | 304mm / 11.97" |
B | 315mm / 12.4" |
C | 173mm / 6.81" |
D | 299mm / 11.77" |
E | 111.5mm / 4.39" |
![]() |
ABOUT SPAL |
---|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. title=" More" href=" ?filter.p.tag=SPAL+Accessory"> ![]() |
SKU | EF3587 |
---|---|
Barcode # | 9356659127461 |
Brand | SPAL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.112m |
Shipping Height | 0.315m |
Shipping Length | 0.304m |
