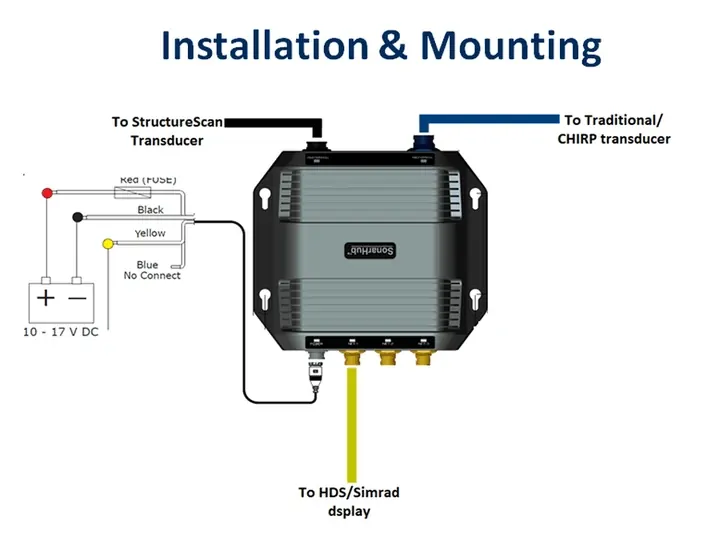

SonarHub Module, with power cable and Ethernet cable 4.5m (15ft). Requires adapter 000-12571-001 or 000-13977-001 adapter cable to use Airmar Non-Chirp or Chirp 9-pin transducers.

Easy-to-install, plug-and-play, all-in-one network solution -- SonarHub™ Sounder Module makes it easier than ever to connect to the latest sonar technologies for Lowrance HDS, Simrad and B&G multifunction displays – including CHIRP, StructureScan® HD imaging and ForwardScan– as well as the new Lowrance SpotlightScan™ bow-mounted solution for HDS Gen2 models and later.

Key Points

  • Compact, all-in-one sonar module delivers CHIRP sonar, StructureScan® HD and ForwardScan technologies.
  • CHIRP sonar delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets.
  • StructureScan® HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging™ to provide crystal-clear, picture-like views of what’s beneath your boat.
  • ForwardScan®** Know what lies ahead, with Simrad ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence.

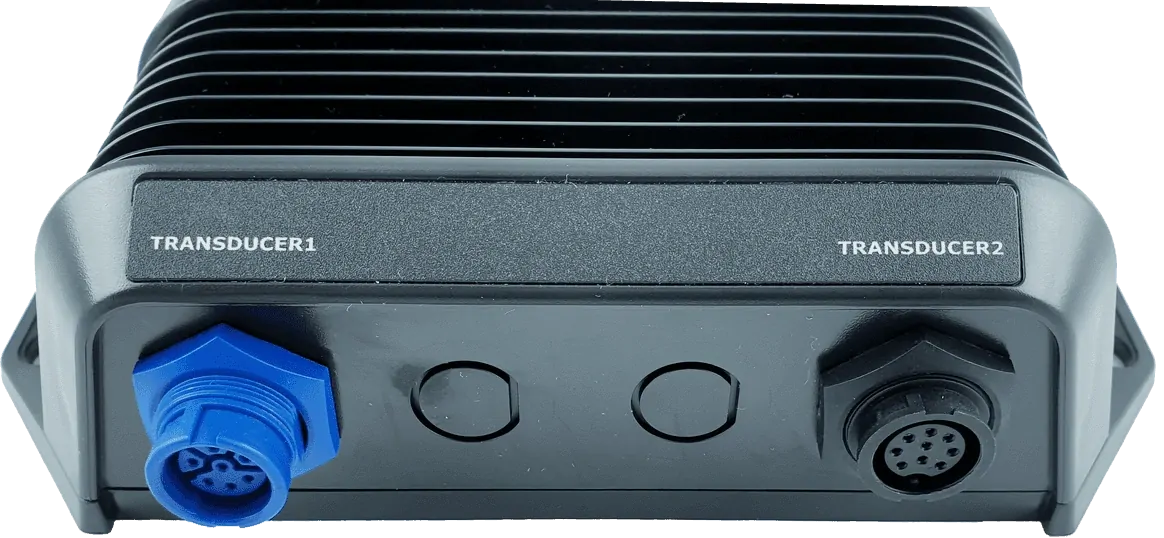

  • Optional transducers include all Lowrance blue-connector transducers, as well as all Airmar single channel CHIRP transducers and existing StructureScan® HD transducers.
  • Compatible with ALL-NEW SpotlightScan™ surround-scanning sonar transducers.*
  • Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan™ and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models, as well as Simrad and B&G multifunction displays.

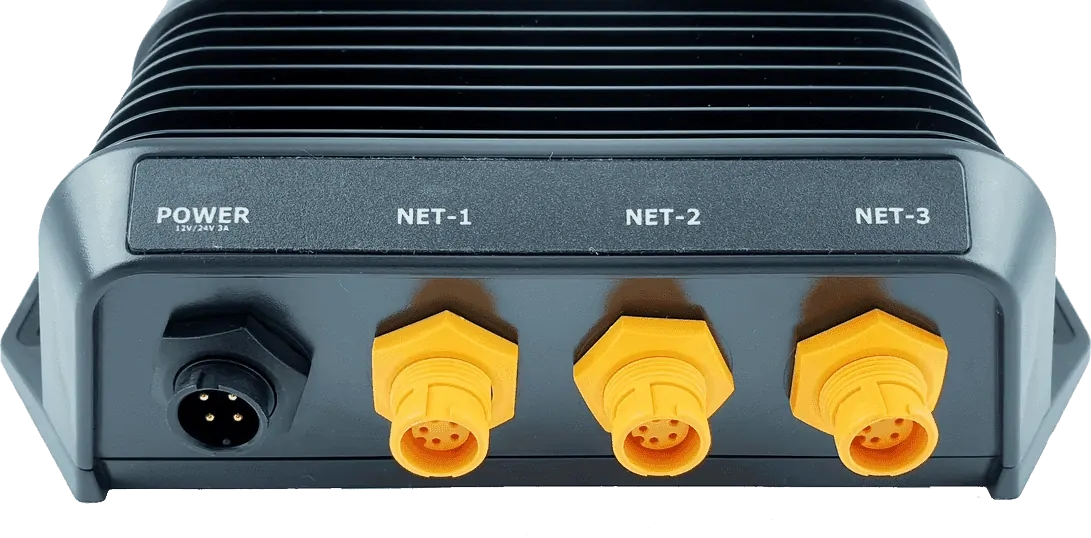

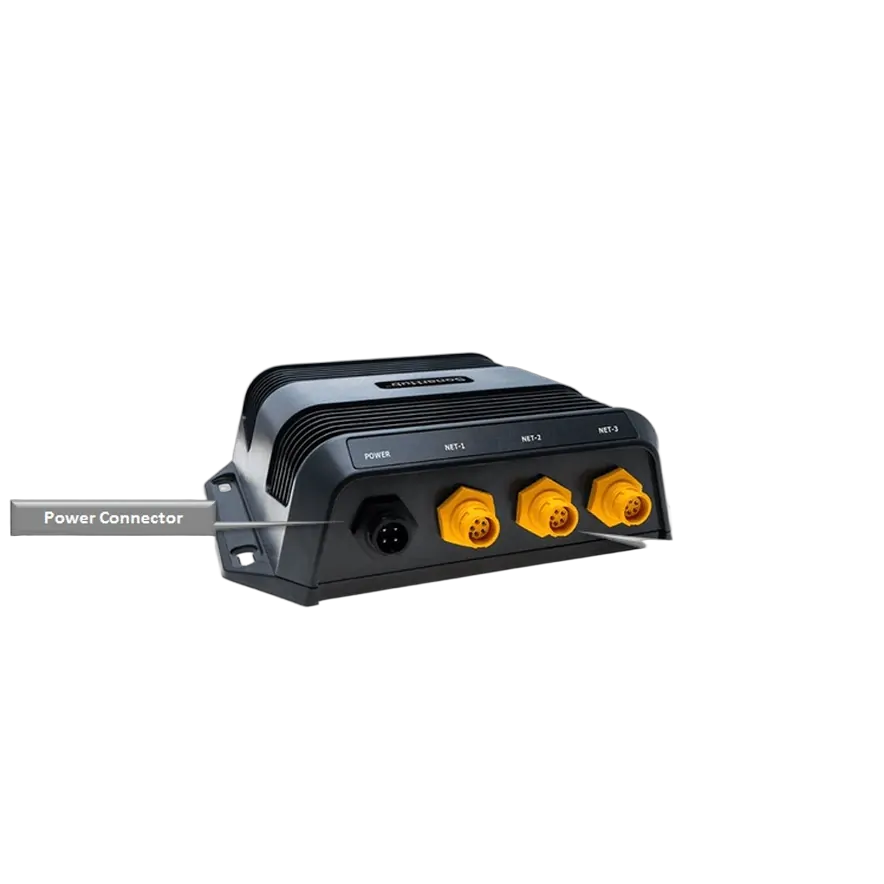

  • Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module.
  • Supported by Advantage Service programs for B&G, Simrad and Lowrance

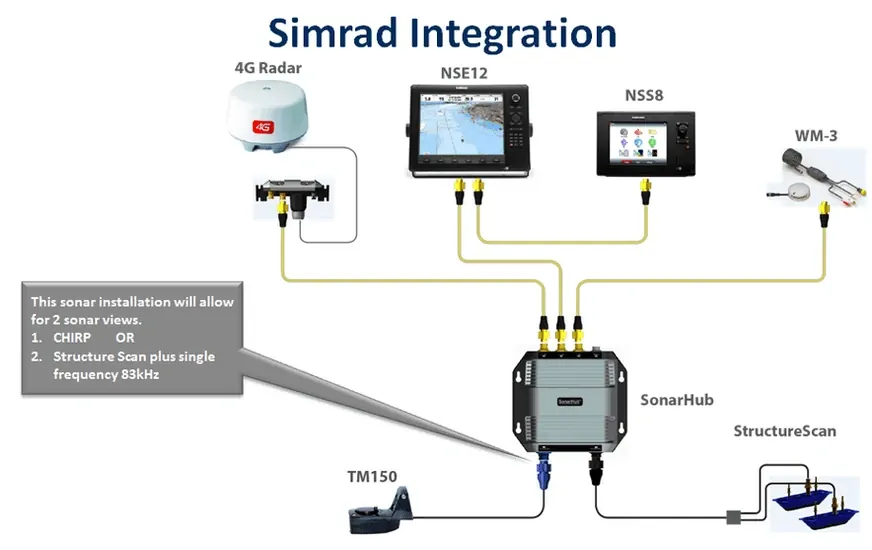

  • High performance sonar module including both StructureScan HD/Forward scan + CHIRP sonar***
  • View DownScan Imaging, Side Scan Imaging plus a single frequency 50, 83, or 200Khz all at one time with a single SonarHub
  • While using CHIRP sonar SideScan and Down Scan will not be available

*SonarHub Sonar Module not required for SpotlightScan™ functionality with HDS Gen2 Touch displays. ** SonarHub may require a software update. Check the SonarHub web page for the latest version ***Only once source can be used at a time

SKU 000-11142-001
Barcode # 9420024124734
Brand Simrad
Shipping Weight 1.5000kg
Shipping Width 0.330m
Shipping Height 0.140m
Shipping Length 0.260m

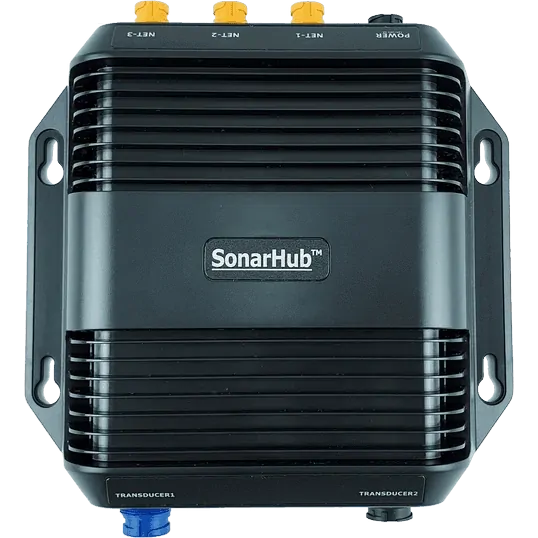

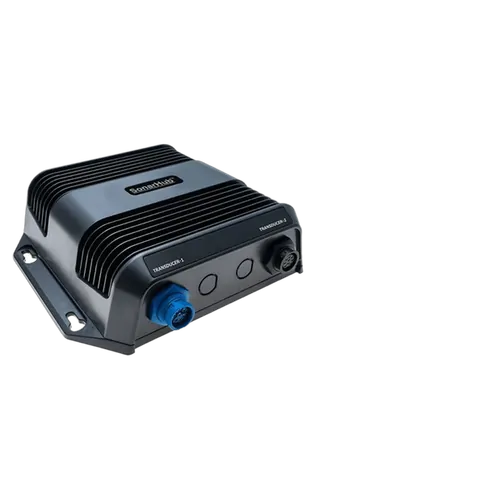

Simrad SonarHub Module

SKU: 000-11142-001
Sale price
$959.99
RRP $996.99
Earn 9,590 Outback Rewards Points
