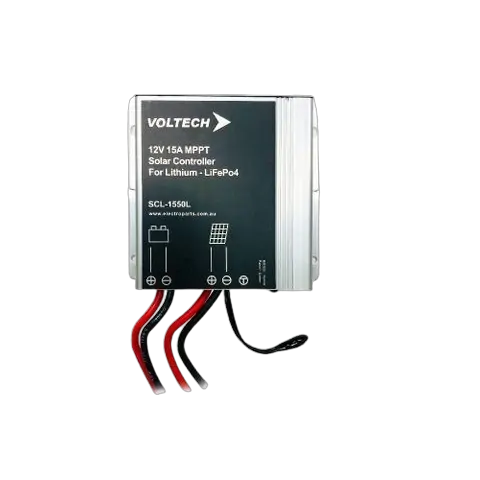

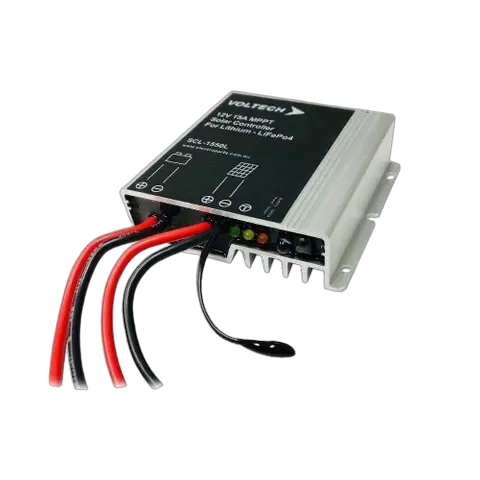

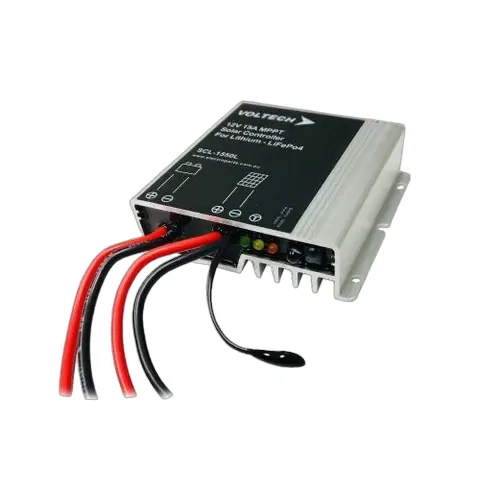

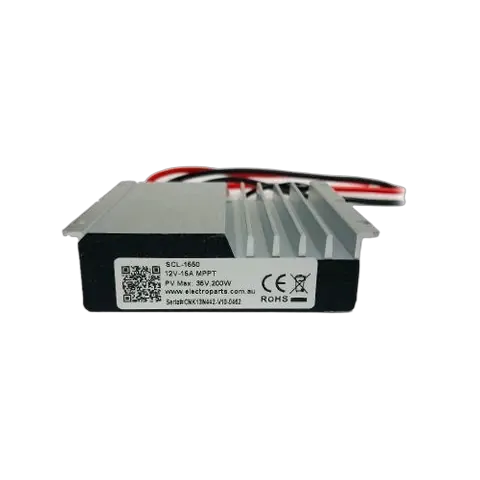

Solar charge controller Voltech Lithium MPPT 12V (15A)

MPPT Solar controller charging efficiency providing about 20% higher output than traditional PWM controllers.

• Innovative Max Power Point Tracking (MPPT) technology, tracking efficiency >99.9%
• Full digital technology, high charge conversion efficiency up to 97.5%,
• Preprogrammed for Lithium (LiFePO4) type batteries.
• Also suitable for AGM/Sealed Batteries.
• IP67, Strong and durable aluminum case
• Full automatic electronic protect function

Specifications

System Voltage 12V
Max Charging Current 15A
Max volt on Battery Terminal 25V
Battery Type Lithium (LiFePO4)
Charging Voltage target 14.4V
Charging Voltage recovery 13.5V
Max volt on PV terminal (Voc) 35V
Max input power (Watts) 200W
Max tracking efficiency >99.9%
Max charge conversion 97.5%
Self-consumption 6mA
Ambient temperature -35°~+60°C
Ambient humidity 0~100%RH
iP Rating IP67
Max Altitude 4000m
Dimensions 86x81x23mm
Weight 260g
Brand: Voltech
Dimensions: 86x81x23
Weight: 0.26
Warranty Information: 24 Months
Download Installation Manua
