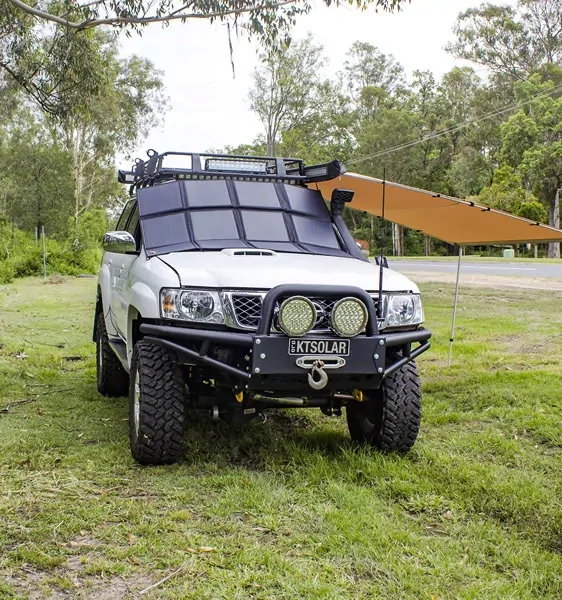

KT Solar Blankets are a compact, light-weight solution to your solar needs. Ideal for camping, 4×4 and marine applications, the KT Solar Blankets are manufactured from a solar cell that is cast from silicon. These cells are more efficient in producing power than most other panels, so the size of the panel is smaller yet produces a greater power output
Dimensions & Weight:
- Dimensions (Length Unfolded): 1526mm
- Dimensions (Height Unfolded): 1140mm
- Dimensions (Depth Unfolded): 5mm
- Dimensions (Length folded): 400mm
- Dimensions (Height folded): 400mm
- Dimensions (Depth folded): 135mm
- Panel Weight: 7.5Kg
Features:

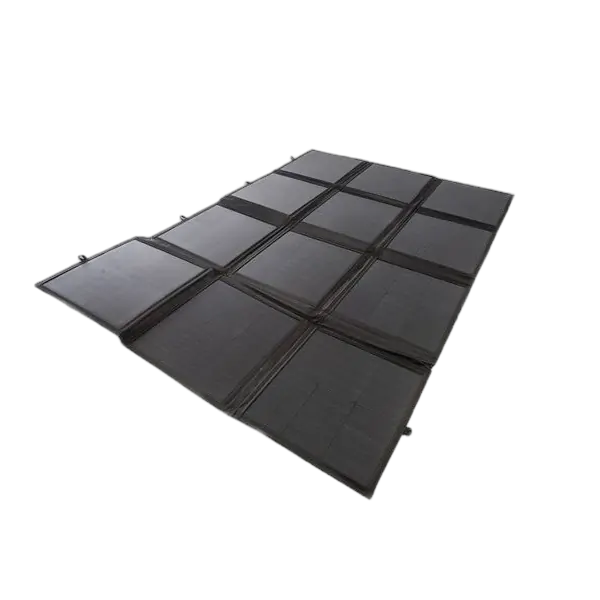

- One-Piece Easy-Fold Weather-Proof 200 Watt Solar Blanket
- Small, compact design for easy transportation and storage
- Includes 5M Power Lead with easy connections to power (2.5mm² )
Warranty & Guarantees:
- 2 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme

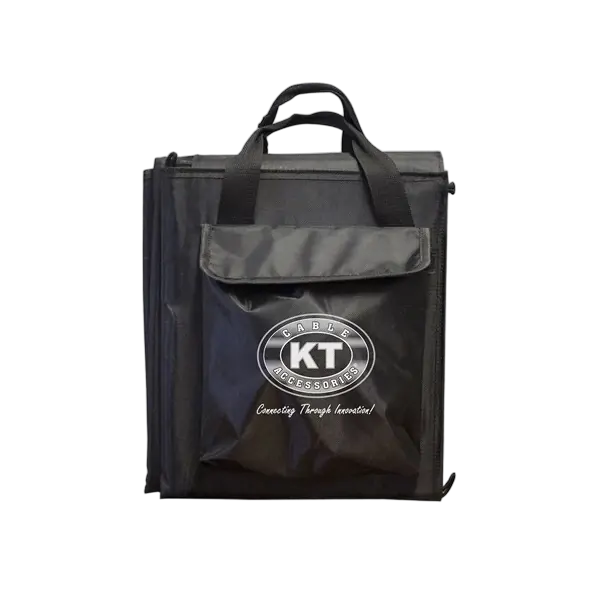

- 12Kg including carry bag
Specifications:
Model Number | KT70713 |
Maximum Power (Pmax) | 200Wp |
Maximum Power Voltage (Vmp) | 18V |
Maximum Power Current (Imp) | 11.11A |
Rated Voltage | 12V |
Open Circuit Voltage (Voc) | 21V |
Short Circuit Current (Isc) | 11.54A |
Operating Temperature | -40°C to + 85°C |
Product Application | Class A |
Test Conditions | AM 1.5, 25°C, 1000W/m² |
Product Weight | 7.53Kg |
SKU | KT70733 |
---|---|
Barcode # | KT70733 |
Brand | KT Cable Accessories |
Shipping Weight | 8.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.500m |
Shipping Length | 0.400m |
