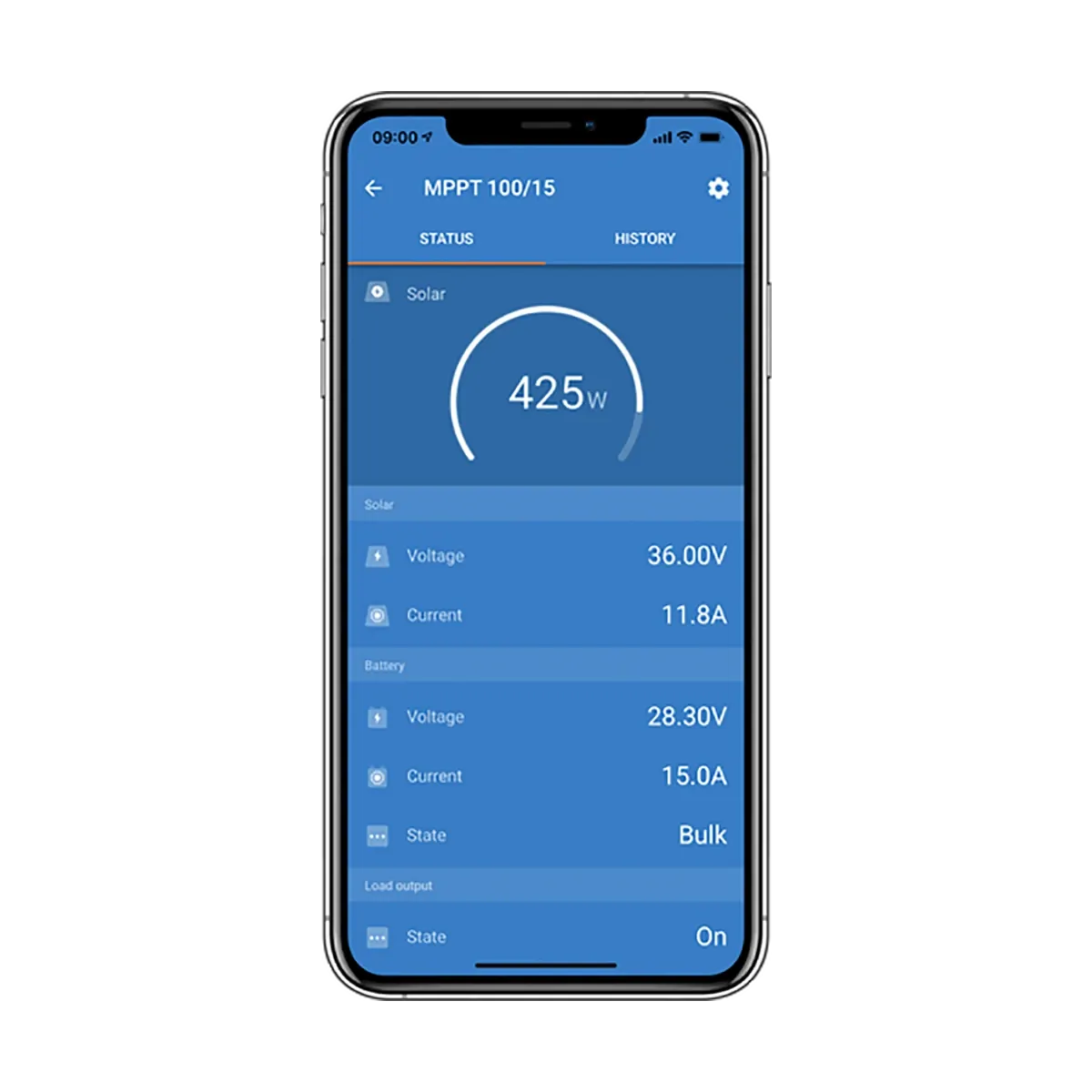

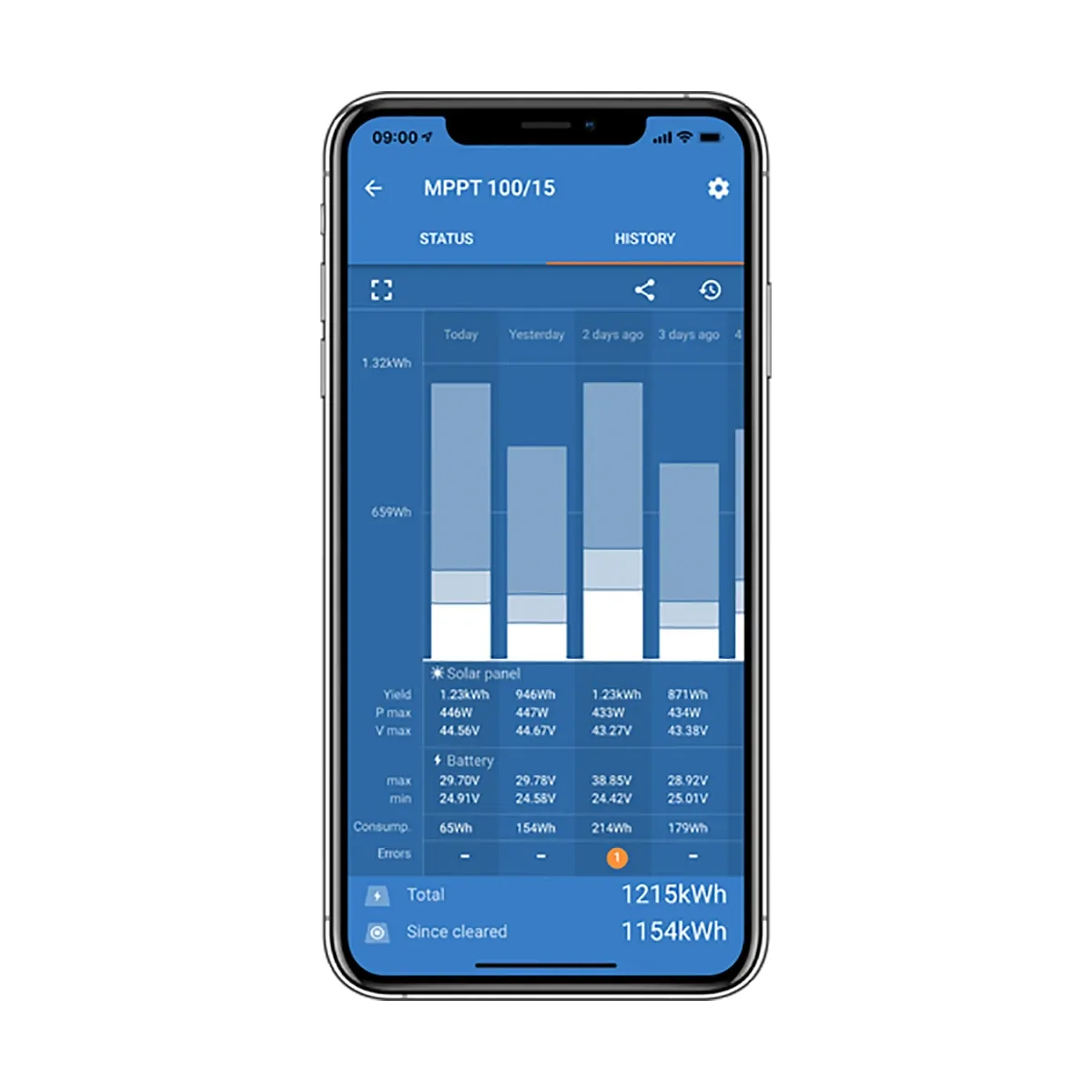

A highly efficient and intelligent solar charge controller designed to charge and maintain 12V, 24V or 48V lead-acid or LiFeP04 batteries from 12/24V solar panels. Thanks to its ultra-fast MPPT controller, programmable battery management and innovative tracking algorithms, the charger gets the most out of your solar panels, even during cloudy weather, with charging currents up to 15A. The adaptive 3-stage battery charging includes bulk, absorption and float to charge your battery as quickly as possible and then keep the battery in optimum condition. The charge algorithm can be changed to 8 pre-set algorithms or fully programmed to suit your application. In addition, equalisation or BatteryLife modes can be enabled to maximise the life of your battery. A handy DC load output port automatically disconnects any connected devices at a predetermined voltage to avoid over-discharging and possibly damaging your battery. Configure and monitor the solar charger and view real-time or historical solar and battery data from your Bluetooth® enabled Smartphone, tablet or computer. Safety features include over-current, over-temperature, over-voltage, reverse battery or PV polarity, and output short circuit protection.

FEATURES
- Supports Lead-acid and LiFeP04 Batteries
- Ultra-fast MPPT controller
- Fully Programmable Battery Charge Algorithm
- Bluetooth® enabled for App control

SPECIFICATIONS
Battery Voltage: 12/24V/48V (auto-select)
Rated Charge Current: 15A
Nominal PV Power: 220W/12V, 440W/24V
PV Short Circuit Current: 15A max.
PV Open Circuit Voltage: 75V max.
Peak Efficiency: 98%
Charge Voltage:
- Absorption: 14.4V/28.8V (adjustable)
- Float: 13.8V/27.6V (adjustable)
Continuous Load Current: 20
Low Voltage Load Disconnect: 11.1V/22.2V or 11.8V/23.6V or Battery Life Algorithm
Low Voltage Load Reconnect: 13.1V/26.2V or 14V/28V or Battery Life Algorithm
Screw Terminals: 6mm2 (AWG10)
