Victron SmartShunt:



The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.


The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.


The SmartShunt is available in 500A,  1000A and 2000A.




Differences compared to BMV712 Battery Monitor:

- No programmable visual and audible alarm.

- No programmable relay.







Specifications

SmartShunt 500A / 1000A / 2000A

Supply Voltage Range

6,5-70 VDC

Current Draw

<1mA

Input Voltage range, Auxiliary Battery

6,5 – 70 VDC

Battery Capacity (Ah)

1-9999 Ah

Operating Temperature Range

-40 +50°C (-40  - 120°F)

Measures voltage of second battery, or temperatures, or midpoint

Yes

Temperature Measurement range

-20 +50°C

VE.Direct communication port

Yes

Resolution & Accuracy

Current

±0,01A

Voltage

±0,01V

Amp hours

±0,1Ah

State of Charge (0-100%)

±0,1%

Time to go

±1 min

Temperature (0-50°C or 30 - 120°F)

±1°C/°F

Accuracy of current measurement

±0,4%

Accuracy of voltage measurement

±0,3%

Installation & Dimensions

Installation

Flush Mount

Front

63mm diameter

Front bezel

69 x 69mm (2.7 x 2.7 inch)

Body Diameter

52mm (2.0 inch)

Body Depth

31mm (1.2 inch)

Standards

Safety

EN 60335-1

Emission/Immunity

EN 55014-1/EN 55014-2

Automotive

ECR R10-4/EN 50498

Accessories

Shunt (Included)

500A/50mV

Cables (Included)

10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection

Temperature Sensor

Optional (ASS000100000)



Victron SmartShunt 1000A spec sheet-


Victron SmartShunt 1000A drawing-


Victron SmartShunt programming guide-


SKU SHU050210050
Barcode # 8719076044260
Brand Victron
Shipping Weight 1.0000kg

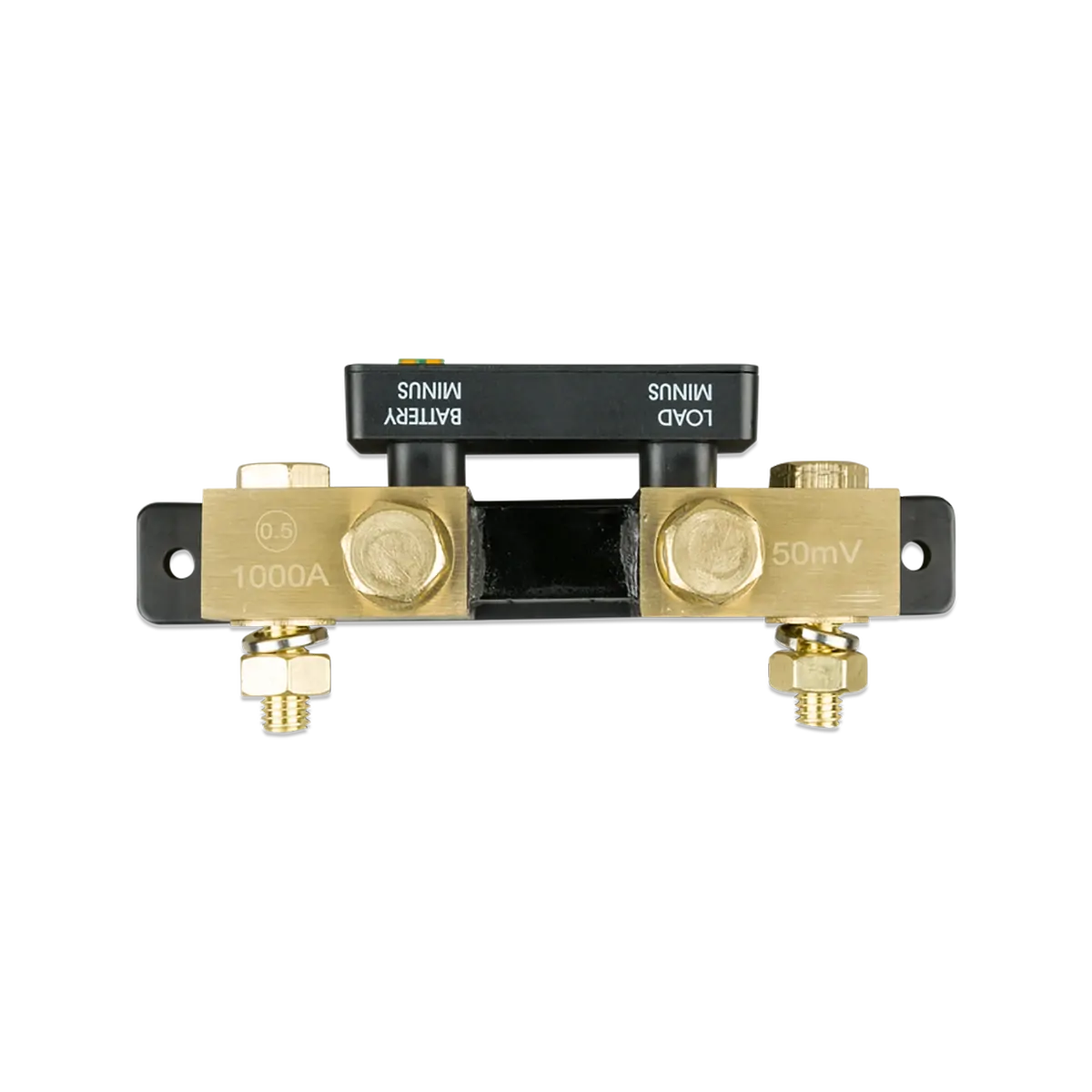

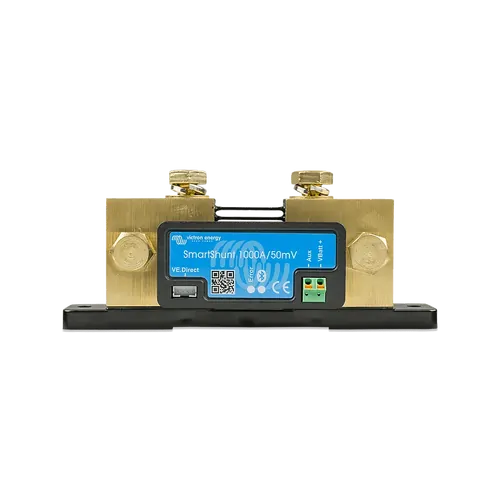

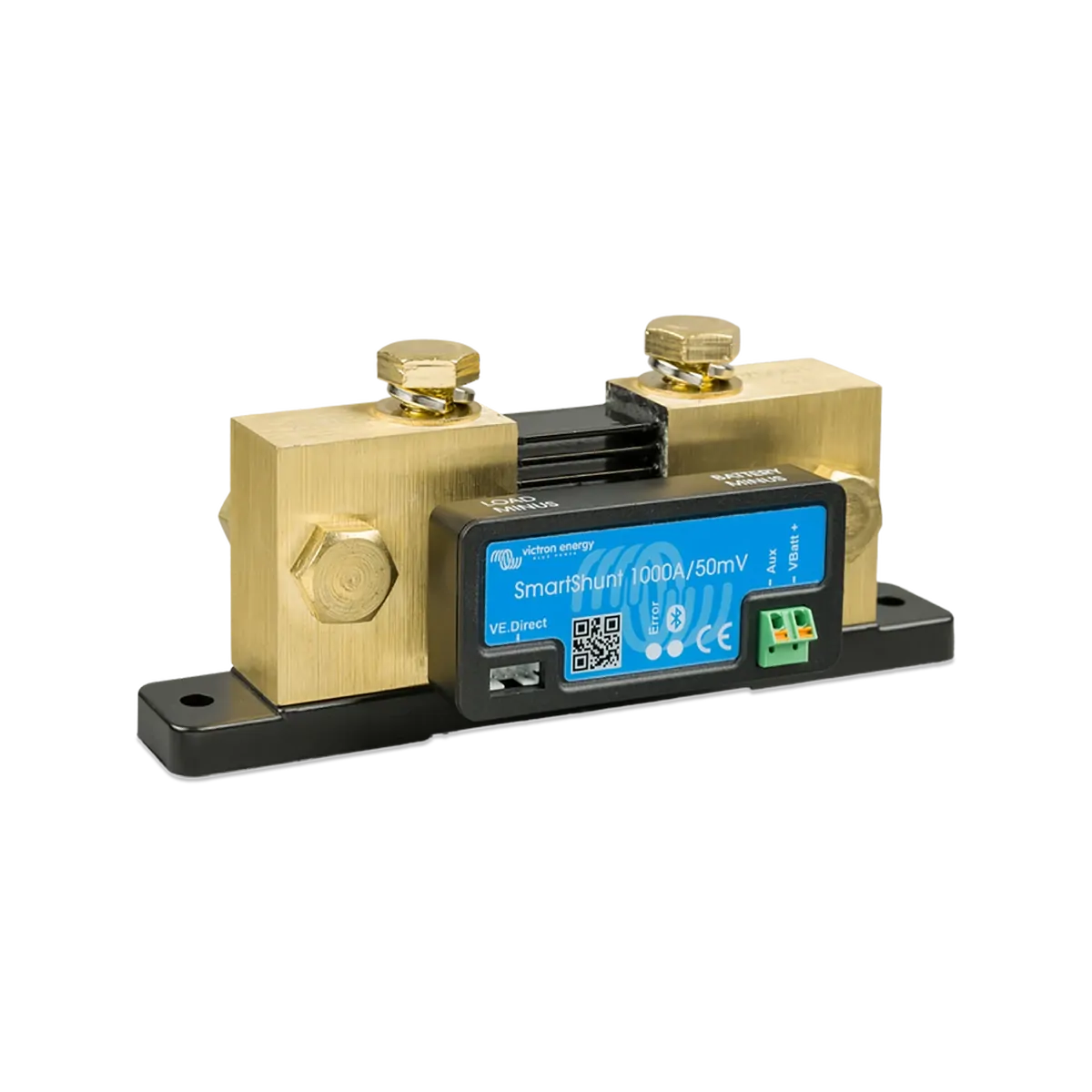

Smartshunt 1000A

SKU: SHU050210050
Sale price
$373.99
RRP $427.90
Earn 3,730 Outback Rewards Points
Sale price
$373.99
DON'T PAY RRP $427.90
PayPal Checkout
4 payments of $93.50

afterpay More info.

Make 4 payments of $93.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $93.50

Calculate Shipping
