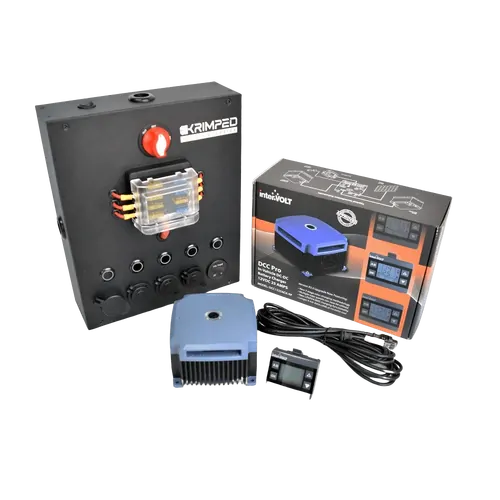

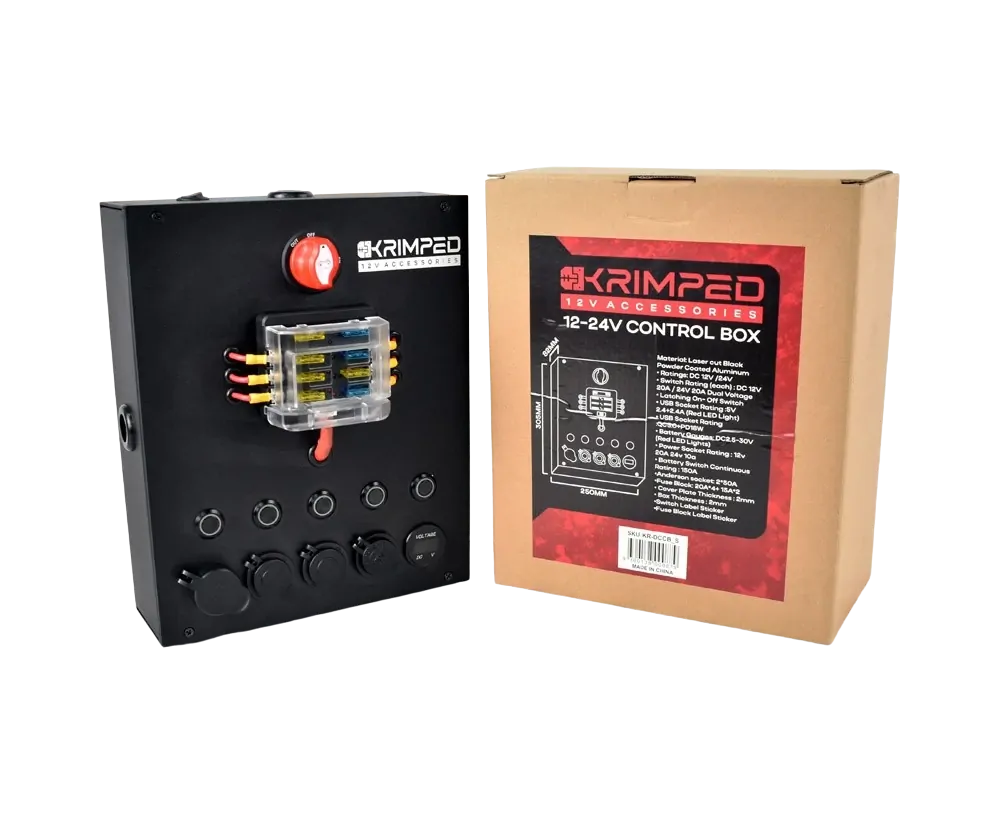

Features:

• 12-24v Control Box
• 250 x 305 x 80mm
• Black Powder Coater Aluminium Housing

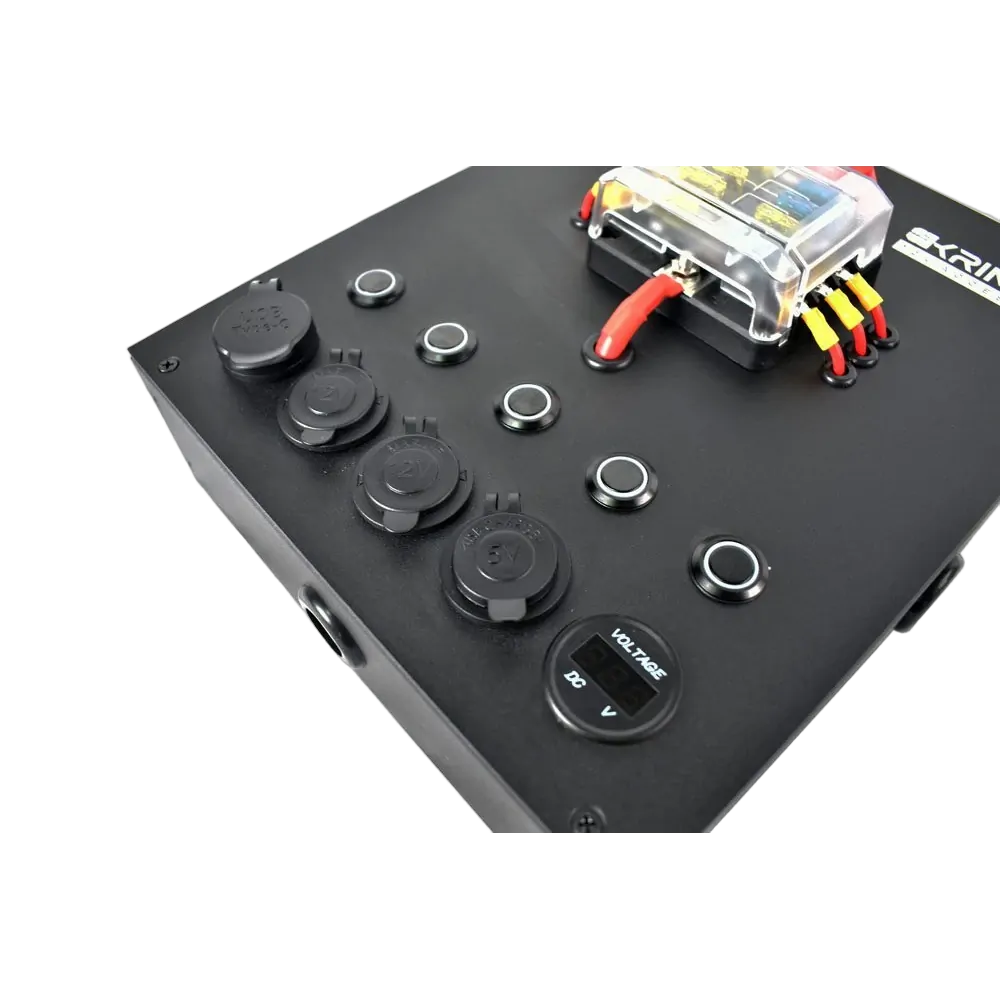

• 5 x 20a 12v flush mount switches with white led ring
• USB Sockets 2 x 2.4a @5v
• USB Type C 18w and USB 3.0
• 2 x 12v accessory sockets
• Removable battery master switch 150a continuous rating

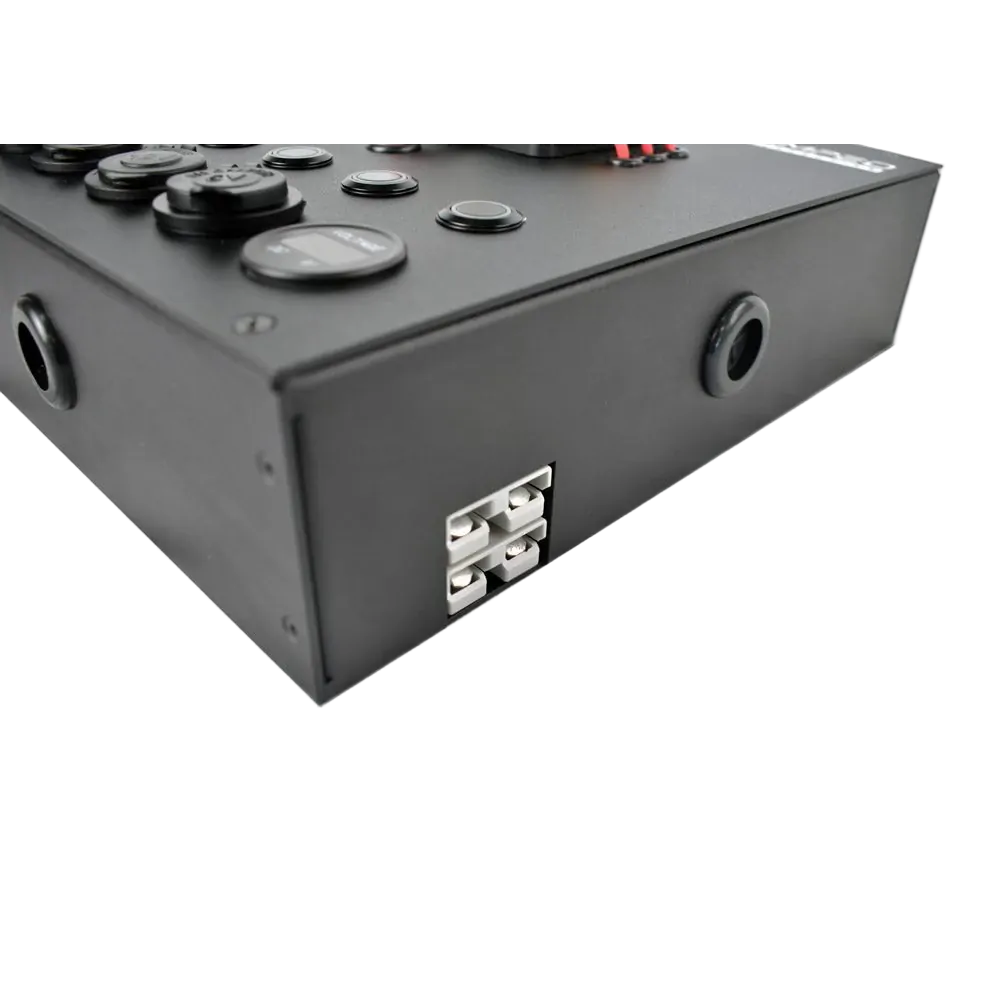

• 2 x 50a Anderson plugs input or output protected by individual circuit breakers.

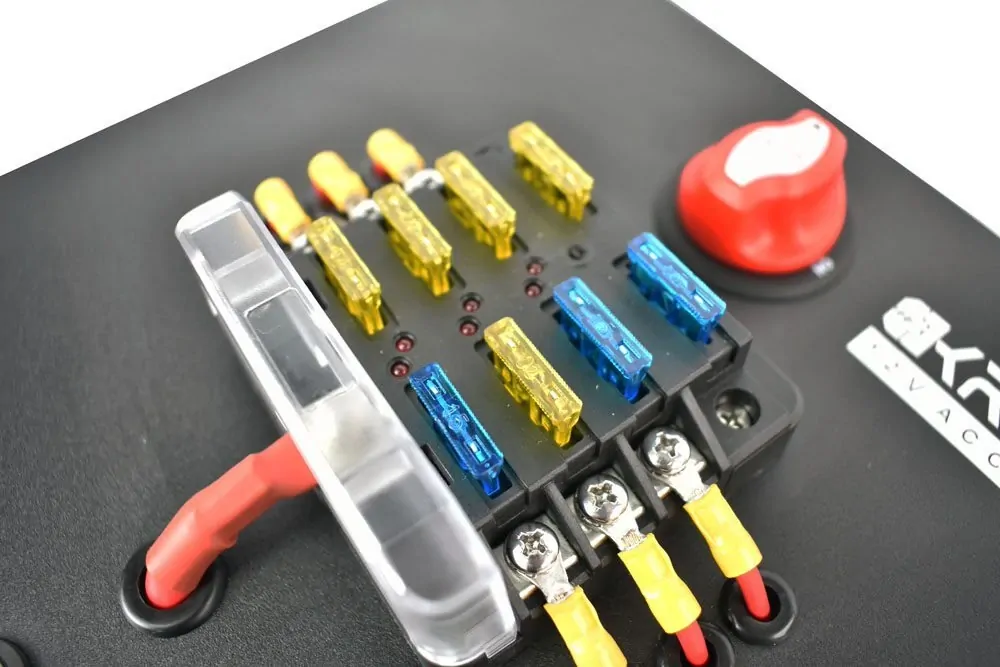

• 6-way fuse block (4x 20a, 2x 15a fuses)
• Fuse block & Switch Labels

Following its release in 2015 the DCC Pro has enjoyed outstanding success in the overland vehicle market both in Australia and overseas. We are now pleased to introduce version 2.0 which features a number of functionality and performance upgrades offering even greater ‘value for money’ than the original.

Just Some Of The Great Features On The New DCC Pro 2.0:

• MORE PROTECTION
  Over-Voltage and reverse polarity protection on all Power Input Terminals.
• SOLAR CHARGING
  Make the most of the DCC Pro’s 25 amp output. Input wattage is now unlimited. The device itself regulates the output current which is limited to 25 Amps maximum with 3 stage charging from solar.

• CHARGING STAGE MEMORY
  A 30 minute ‘short stop’ timer has now been implemented. If the charge cycle is interrupted the DCC will resume as before providing it is within 30 minutes.
• PROVEN CHARGING
  Updated charging algorithms with new boost, absorption and float voltages.
• LiFePO4 BMS CHARGING
  Now incorporates Constant Current (CC) boost and Constant Voltage (CV) curve for boost and absorption stages for LiFePO4 batteries (with built in BMS only).
• LONGER CABLE
  4 metre lead as standard with the retail kit.
• MORE INFORMATION

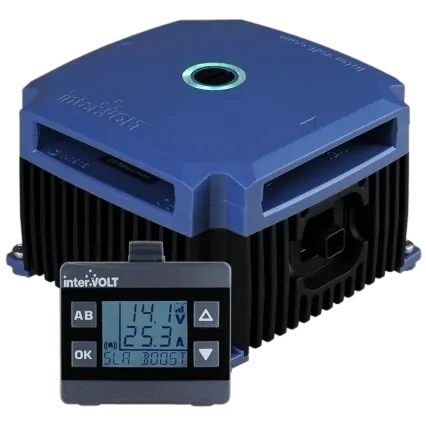

  Display now shows input type DC (main) or PV (solar) and charging stage. Alternate screen shows battery type.

Input Voltage –
• Main: 9 – 16 VDC
• Solar: 18 – 28 VOC (open circuit Voltage – no load)

Solar Power – Unrestricted (system limited to 25 Amps)

Continuous Rating – 25 Amps@50°C (de-rate from 50°C to 85°C)

Current Draw – Charging Device:
In stand by: Including LED indicator <10mA
At full load: Up to 35 Amps

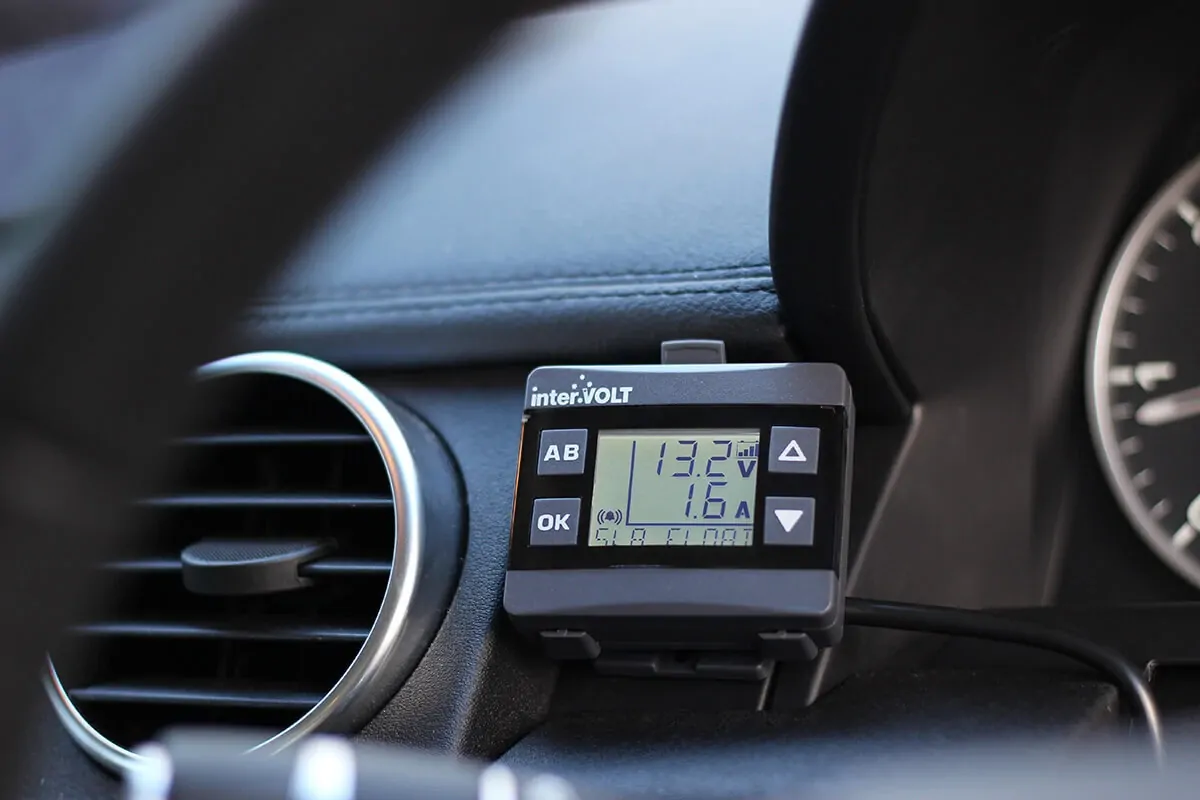

Current Draw – Remote Display:
With backlight off: 10mA max
With backlight on: 45mA max

Output Voltage – (Voltage values subject to tolerance ± 0.1V)

• Standard Lead Acid:
• Boost/CC: 14.5 VDC, Absorption/CV: 14.4 VDC, Float/CV: 13.4 VDC
• Absorbed Glass Mat:
• Boost/CC: 14.7 VDC, Absorption/CV: 14.6 VDC, Float/CV: 13.6 VDC
• Gelified Electrolyte:
• Boost/CC: 14.3 VDC, Absorption/CV: 14.2 VDC, Float/CV: 13.5 VDC
• Lead Calcium:
• Boost/CC: 14.9 VDC, Absorption/CV: 14.8 VDC, Float/CV: 13.8 VDC
• LiFePO4 BMS:
• Boost/CC: 14.6 VDC, Absorption/CV: – , Float/CV: 14.4 VDC

Electrical Protection –
• Over temperature disconnect – auto re-connect
• Under Voltage shutdown – auto re-start
• High Voltage disconnect – auto re-connect
• Reverse polarity protection on all terminals

Environmental Protection –
• Charging Device: IP67 (internal components only)
• Remote Display: IP40 (not dust or water resistant)

Operating Temperature – -20°C to +85°C

Operating Humidity – Up to 100% (non-condensing)

Charging Device Materials –
• Heatsink: E-Coated ADC-3 die cast aluminium
• Blue Plastics: 10% glass reinforced PC/ABS alloy
• Black Plastics: 15% glass reinforced PBT
• Transparent Plastics: Temperature resistant PMMA

Remote Display Materials –
• Dark Grey Plastics: Temperature resistant PC/ABS alloy
• Transparent Plastics: Temperature resistant PMMA

Terminal Material – Tin plated brass

Terminal Fasteners – 304 stainless steel

Conformity – AS/NZS CISPR 11:2004 for EMC

Dimensions –
• Charging Device: 112 x 112 x 75mm (including terminal cover)
• Remote Display: 60 x 36 x 59mm (including mounting bracket)

Weight –
• Charging Device: 690 grams
• Remote Display: 55 grams
