Without Housing
Replaces 5007556
Fits 90 (2013 & Up), 115/130 (2009 & Up)

Contains

BLA Code	Description	O.E #	Qty
S18-2557	Gasket, Plate	338484	1
S18-4579	Plate, Outer Wear	338485	1
S18-7963	Seal, Housing Plate	331353	1
S18-3059	Impeller	5001593	1
S18-71336	O-ring, Impeller to Plate	302035	1
S18-3299	Key, Impeller	331107	1
S18-4549	Cup, Insert	338486	1
S18-7143	O-Ring, Cup to Housing	331188	1
S18-4568	Housing, Impeller	5007554	1
S18-1597	Screw, Housing	302325	4
S18-1821	Grommet, Pump to Exhaust Housing	353690	1

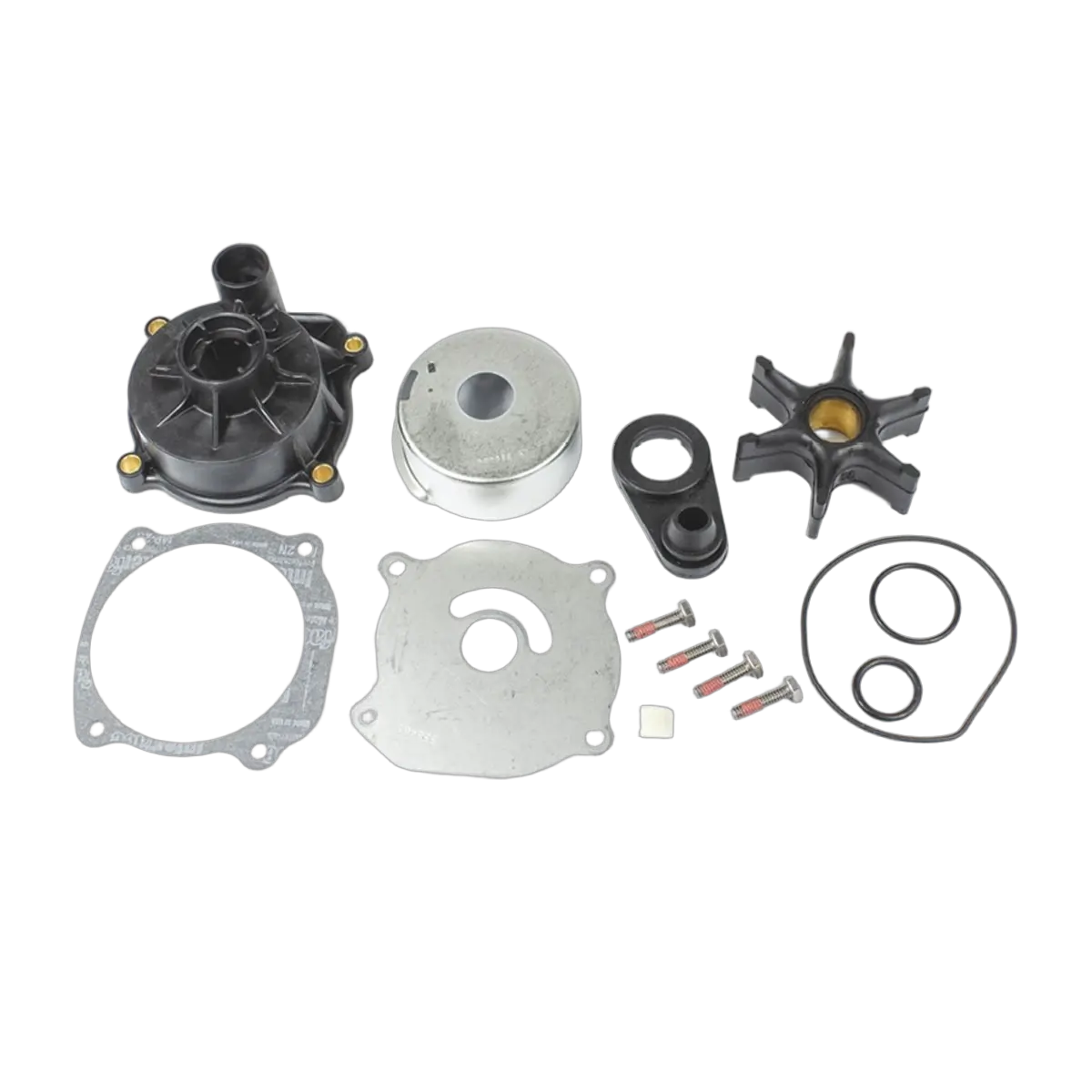

Sierra Water Pump Kit BRP With Housing 90-130Hp

SKU: S18-3476

$193.99 MATES’ RATE

Unlock Mates'Rate and Save. Login or Join Free

SAVE $15.91

REG $209.90

Ships in 5 days (Christmas delays possible)

$209.90 REG

$193.99 MATES’ RATE

Without Housing
Replaces 5007556
Fits 90 (2013 & Up), 115/130 (2009 & Up)

Contains

BLA Code	Description	O.E #	Qty
S18-2557	Gasket, Plate	338484	1
S18-4579	Plate, Outer Wear	338485	1
S18-7963	Seal, Housing Plate	331353	1
S18-3059	Impeller	5001593	1
S18-71336	O-ring, Impeller to Plate	302035	1
S18-3299	Key, Impeller	331107	1
S18-4549	Cup, Insert	338486	1
S18-7143	O-Ring, Cup to Housing	331188	1
S18-4568	Housing, Impeller	5007554	1
S18-1597	Screw, Housing	302325	4
S18-1821	Grommet, Pump to Exhaust Housing	353690	1
